Forced Starting of Navigation Unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

SCS Service Connector 07PAZ-001010A

Connect the SCS service connector (A) to the navigation service check connector (B) located behind the navigation unit.

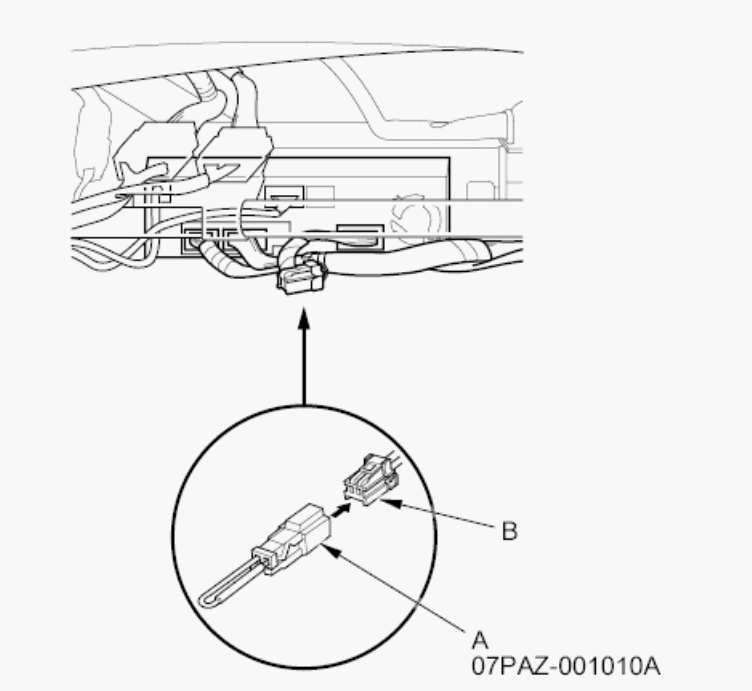

Fig 1: Identifying SCS Service Connector And Navigation Service Check Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Check that the system starts up and then changes to the Navi System Link screen.

NOTE: If the system fails to display the Navi System Link screen, refer to No picture is displayed troubleshooting (see SYMPTOM TROUBLESHOOTING ).
