Navigation Display Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.

Remove the audio disc changer (see AUDIO DISC CHANGER REMOVAL/INSTALLATION ).
Remove the bolts (A) and the navigation display unit (B).

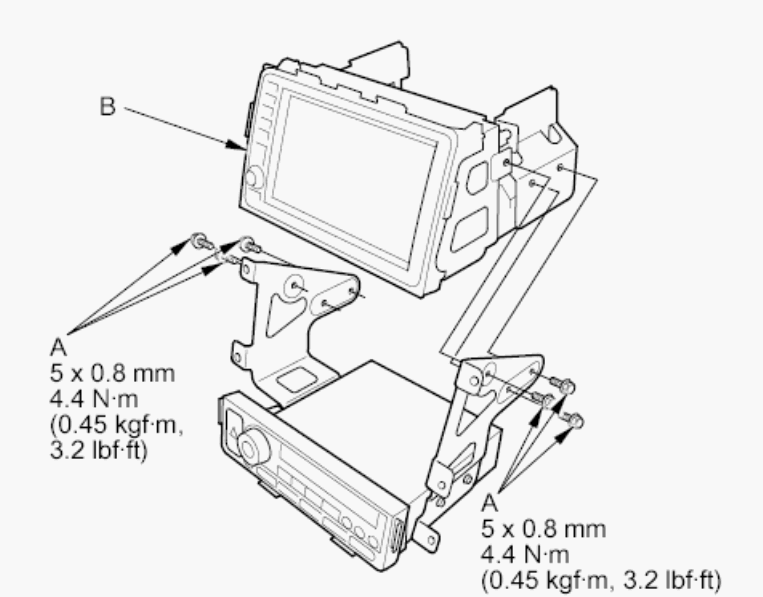

Fig 1: Identifying Navigation Display Unit And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the navigation display in the reverse order of removal.
