Oil Jet Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
  2. Remove the oil jet bolt (A), then remove the oil jet (B).

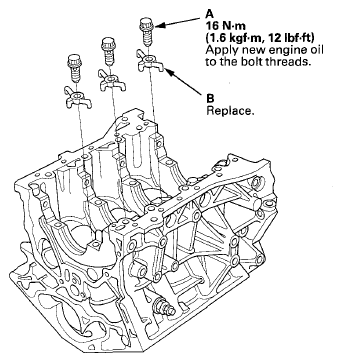

    Fig 1: Oil Jet And Bolt With Torque Specifications
    G08078872Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully install the new oil jet and tighten the oil jet bolt.
  4. Install the crankshaft (see CRANKSHAFT AND PISTON INSTALLATION ).
