Exploded View

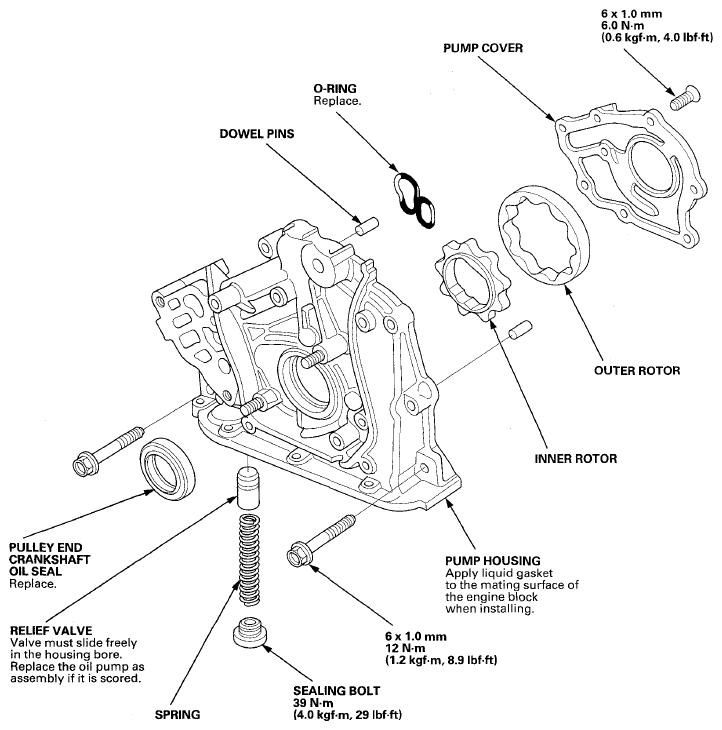

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
Engine Support Hanger, A and Reds AAR-T1256*
Oil Seal Driver, 64 mm 070AD-RCAA100
*Available through the Honda Tool and Equipment Program 888-424-6857
Courtesy of AMERICAN HONDA MOTOR CO., INC.
