TPMS Calibration Procedure

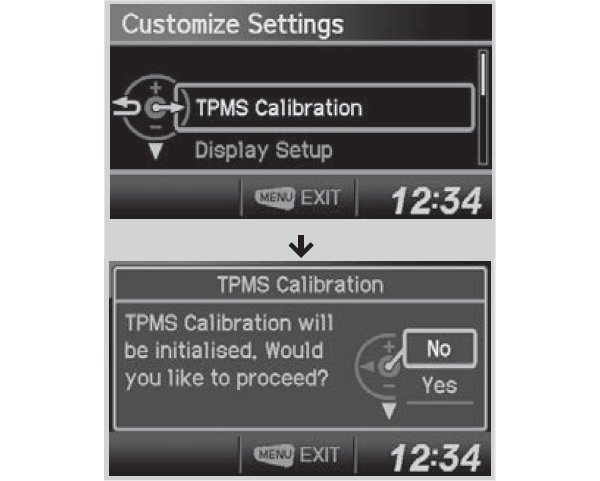

You can calibrate the system from the customized features on the i-MID. See Fig 1.
- Turn the ignition switch to ON.
- Press the MENU button to go to the Vehicle Menu screen.
- Select Customize Settings with the +/- (plus/minus) button, then press the SOURCE button.
- Select TPMS Calibration with the +/- (plus/minus) button, then press the SOURCE button.NOTE: The display switches to the customization setup screen, where you can select Cancel or Initialize.
- Select Yes with the +/- (plus/minus) button, then press the SOURCE button.NOTE: When the calibration is complete, THE TPMS HAS BEEN INITIALIZED message appears, and the display returns to the customization menu screen.
- The calibration process finishes automatically. It requires approximately 30 minutes of cumulative driving at speeds between 30-60 mph (48-97 km/h). During this period, if the ignition is turned on and the vehicle is not moved within 45 seconds, you may notice the low tire pressure indicator comes on briefly. This is normal and indicates that the calibration process is not yet complete.
NOTE:
If the UNABLE TO INITIALIZE TPMS message appears, repeat steps 4 and 5.
