Component Location Index

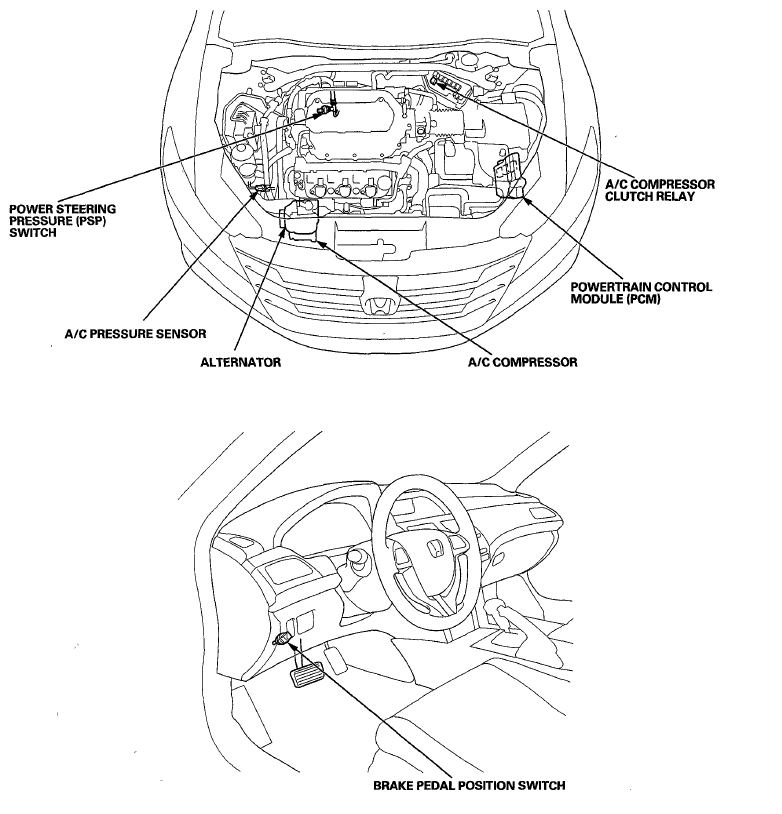

Fig 1: Identifying Idle Control System Component Location
G06422753Courtesy of AMERICAN HONDA MOTOR CO., INC.
