Exploded View

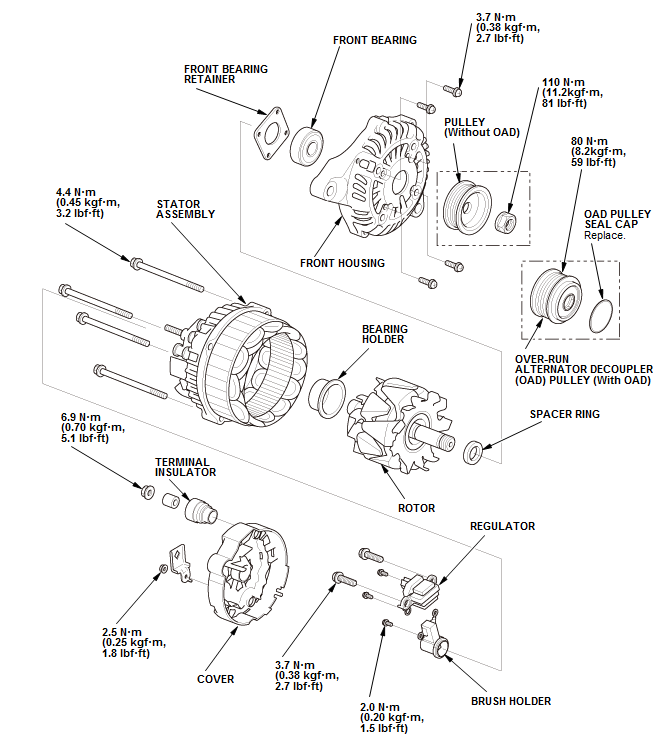

  1. Alternator - Exploded View
    Fig 1: Exploded View Of Alternator With Torque Specifications
    GHH79384Courtesy of HONDA, U.S.A., INC.
