HOMELINK Remote Control System: Test

NOTE:

Explain to the customer that garage door remote transmitters come in two types: fixed code and rolling code. Each type has its own programming method, and each method is covered in the owner's manual. If the customer has concerns about the HomeLink unit, have the customer contact the HomeLink assistance desk at 800-355-3515.
If the HomeLink will not open the customer's garage, do the following procedures.

Press any of the buttons on the HomeLink unit.
- If the red indicator comes on, go to step 4.
- If the red indicator does not come on, go to step 2.
Remove the roof console (see step 3 on HEADLINER REMOVAL/INSTALLATION ), and disconnect the 5P connector (A) from the HomeLink unit (B).

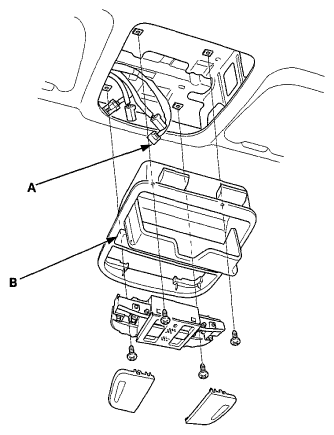

Fig 1: Identifying 5P Connector And Homelink Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the voltage between terminals No. 1 (+) and No. 4 (-) of the HomeLink unit 5P connector. There should be battery voltage.
- If the voltage is not as specified, check for these problems:
  - Blown No. B16 (10 A) fuse in the under-hood fuse/relay box.
  - Faulty driver's under-dash fuse/relay box.
  - Poor ground (G701).
  - An open or high resistance in the ground wire.
- If there is battery voltage, go to step 4.

  Fig 2: Measuring Voltage Between Terminals No. 1 (+) And No. 4 (-) Of Homelink Unit 5P Connector
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make sure the genuine remote transmitter (test remote) has fresh batteries.
Clear any previously learned codes by pressing and holding the two outside buttons (A) on the HomeLink unit (B) until the red indicator (C) on the unit starts blinking (about 20 seconds), then release the buttons.

Fig 3: Identifying Outside Buttons, Red Indicator And Homelink Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Point the test remote transmitter (A) straight up exactly 101.6 mm (4.0 in) away from the HomeLink unit(B).

Fig 4: Identifying Remote Transmitter, Homelink Unit, Red Buttons And Home Link Unit Buttons
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Press and hold the test transmitter button and one of the HomeLink unit buttons (C) at the same time.
Wait for about 20 seconds while watching the red indicator (D) on the HomeLink unit.
- If the red indicator starts out blinking slowly and then blinks faster, the unit is OK. Release the buttons, then clear the learned code (see step 1).
- If the red indicator does not blink, replace the HomeLink unit (see HOMELINK UNIT REPLACEMENT ).
