Rear Subframe Torque

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing, align both installation reference holes in the subframe with the reference holes in the body using a screwdriver or tapered punch as a guide.
After removing the subframe mounting bolts, be sure to replace them with new ones.

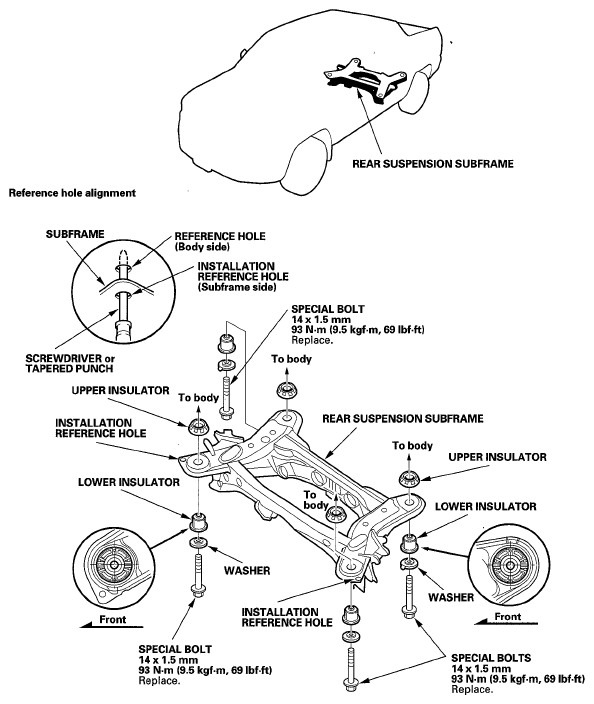

Fig 1: Rear Subframe Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
