Unit Check (Quick Check): Notes

To start the test, select the item you want to check starts.

With rear entertainment

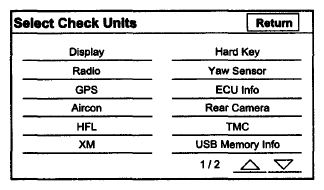

Fig 1: Select Check Units Screen - With Rear Entertainment (1 Of 2)
G08091118Courtesy of AMERICAN HONDA MOTOR CO., INC.

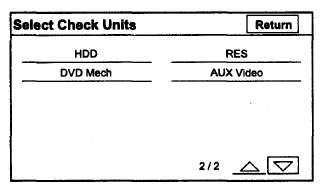

Fig 2: Select Check Units Screen - With Rear Entertainment (2 Of 2)
G08091119Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without rear entertainment

Fig 3: Select Check Units Screen - Without Rear Entertainment (2 Of 2)
G08091120Courtesy of AMERICAN HONDA MOTOR CO., INC.

Some of the tests and screens that are displayed under the Unit Check are different from the other detailed checks.
