Navigation Switch Panel Removal/Installation

Remove the dashboard center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Remove the screws, then pull out the navigation switch panel and the center pocket (A).

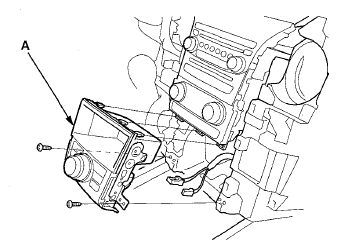

Fig 1: Identifying Center Pocket Of Navigation Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors and remove the navigation switch panel and the center pocket.
Remove the screws and brackets, then separate the navigation switch panel (A) and the center pocket (B).

Fig 2: Identifying Navigation Switch Panel And Center Pocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the navigation switch panel in the reverse order of removal.
