Honda
>>
2015
>>
Pilot EX, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Relay And Control Unit Locations
>>
Dashboard
>>
With navigation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With navigation

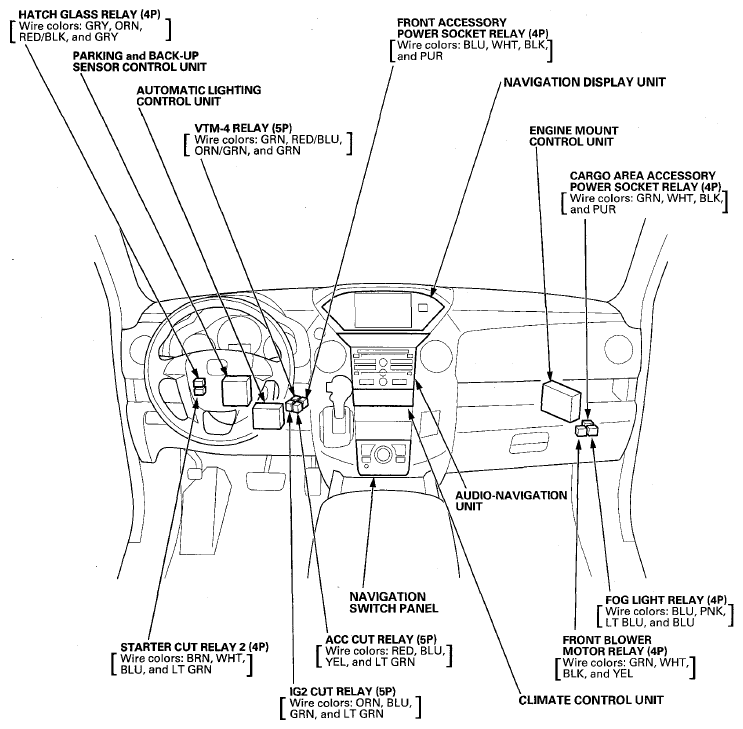

Fig 1: Dashboard Relay And Control Unit Locations (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
