FTP Sensor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift.
Remove the EVAP canister cover (see step 2 on EVAP CANISTER REPLACEMENT ).
Disconnect the FTP sensor connector (A).

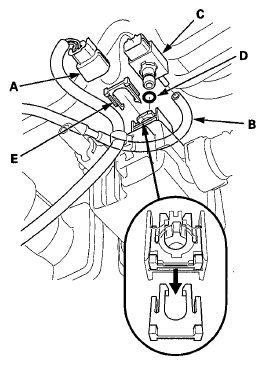

Fig 1: Identifying FTP Sensor Connector, Hose, FTP Sensor & Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hose (B), and remove the FTP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
NOTE: Do not coat the O-ring with oil.
