Under-Dash Fuse/Relay Box
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

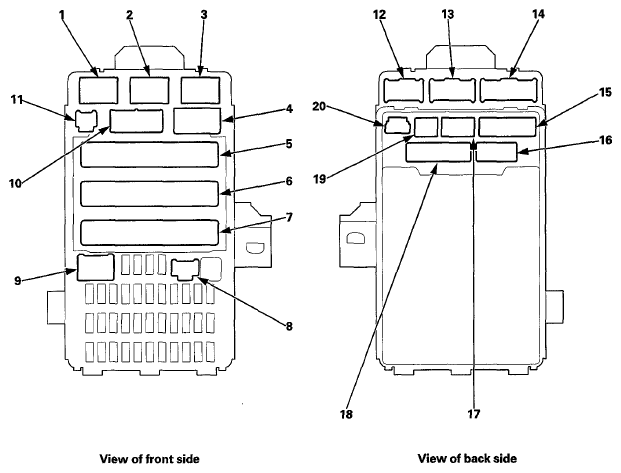

UNDER-DASH FUSE/RELAY BOX REFERENCE TABLE
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A | 9 | 6 | Not used | - |
| C | 10 | 4 | Dashboard wire harness | - |
| D | 4 | 2 | Dashboard wire harness | - |
| E | 5 | 42 | Right engine compartment wire harness | - |
| F | 6 | 34 | Right engine compartment wire harness | - |
| G | 7 | 21 | Right engine compartment wire harness | - |
| H (MICU service check connector) | 8 | 3 | - | - |
| J | 20 | 4 | Dashboard wire harness | - |
| K | 12 | 8 | Dashboard wire harness | - |
| M | 13 | 10 | Dashboard wire harness | - |
| Memory erase signal (MES) connector socket | 11 | - | - | - |
| N | 14 | 14 | Dashboard wire harness | - |
| P | 19 | 10 | Dashboard wire harness | - |
| PGM-FI main relay 2 (FUEL PUMP) | 2 | 4 | - | - |
| Power window relay | 1 | 4 | - | - |
| Q | 17 | 16 | Dashboard wire harness | - |
| R | 15 | 20 | Dashboard wire harness | - |
| Starter cut relay 1 | 3 | 4 | - | - |
| S | 16 | 20 | Dashboard wire harness | - |
| T | 18 | 34 | Dashboard wire harness | - |
