How To Display DTCs On the Gauge Control Module
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
- Set the B-CAN System Diagnosis test Mode 1 (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE 1 AND TEST MODE 2 (WITHOUT THE HDS) ).
- While in Test Mode 1, the DTCs which have been detected and stored individually by various B-CAN units, will be shown one by one on the multi-information display on the gauge control module when the communication between the MICU and the gauge control module is normal. To scroll through the DTCs, press the select/reset button.

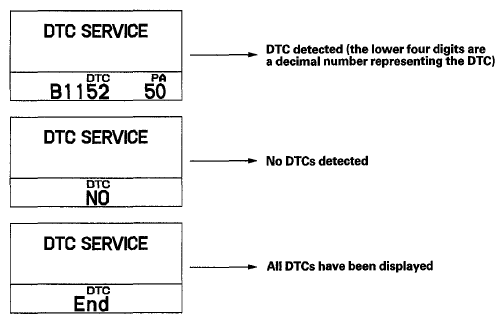

Information display type
Courtesy of AMERICAN HONDA MOTOR CO., INC.

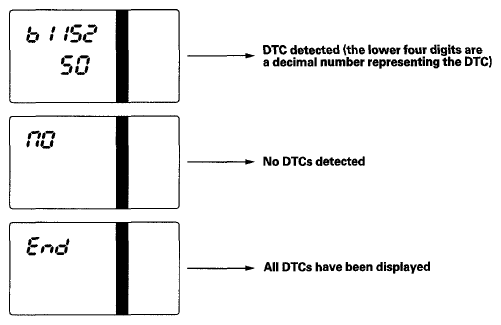

Multi-information display type
- The unit that has stored the code can be identified by the number shown on the multi-information display.CONTROL UNIT REFERENCE TABLE
Control Unit Control Unit I.D. Number MICU 10 Gauge control module 50 Door multiplex control unit (Power window master switch) 30 Immobilizer-keyless control unit 96 Climate control unit 51 HandsFreeLink control unit 94 Automatic lighting control unit 72 Parking and back-up sensor control unit 9A Power tailgate control unit 35 Power seat control unit 95
