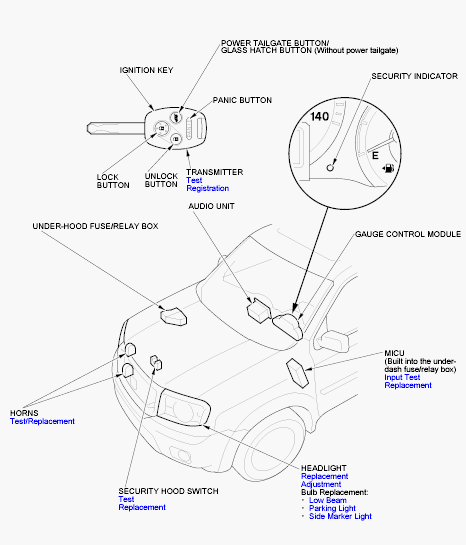

Fig 1: Identifying Keyless/Power Door Locks/Security System Replacement Components (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

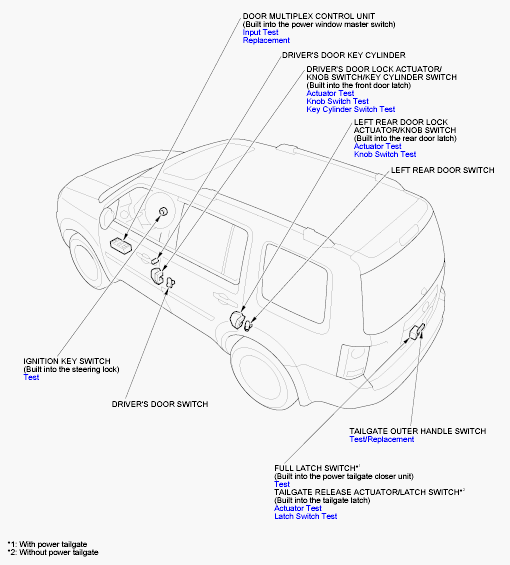

Fig 2: Identifying Keyless/Power Door Locks/Security System Replacement Components (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

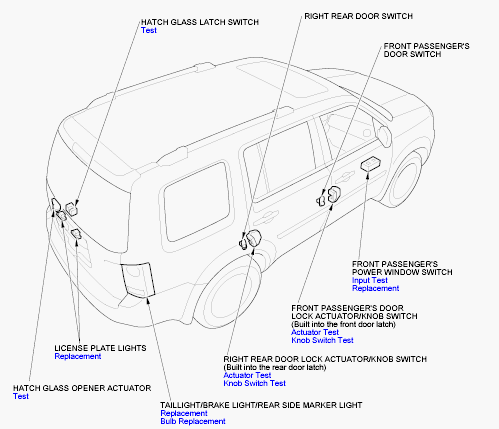

Fig 3: Identifying Keyless/Power Door Locks/Security System Replacement Components (3 Of 3)
