Reception Level Indication Mode

This diagnostic screen checks the audio unit's reception level, and is displayed in decibels (dB).

This level then can be used in the diagnosis of audio unit reception quality.

Preparation:

• Park the vehicle outdoors where you get good radio reception.
• Tune to a powerful local FM radio station then write down the radio station number.
• Tune to a powerful local AM radio station then write down the radio station number.

1. Enter the reception level indication mode in the self-diagnostic function. The AM/FM antenna amplifier is on (A-SEL or TP is not displayed in the audio-HVAC display).
2. Tune to the FM radio station you wrote down in Preparation using the TUNING knob, and note the decibel level of that station when you release the button.

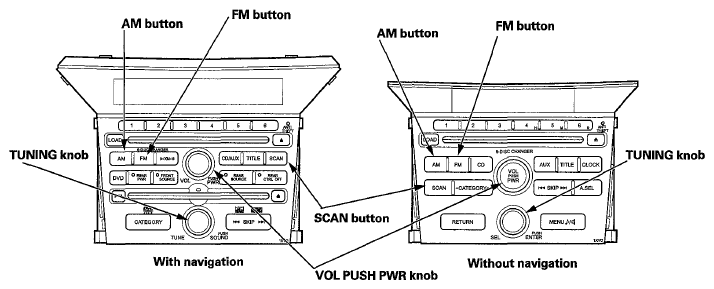

   Fig 1: Identifying AM Button, FM Button, Tuning Knob & Scan Button

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   Fig 2: Identifying Audio Display (With/Without Navigation)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Press and release the SCAN button to turn the AM/FM antenna amplifier off (ASEL or TP is now displayed in the audio-HVAC display).
4. Tune to the FM radio station you wrote down in Preparation using the TUNING knob, and note the decibel level of that station when you release the button.
5. Press and release the SCAN button to turn the AM/FM antenna amplifier back on (A-SEL or TP is not displayed in the audio-HVAC display).
6. Press and hold the AM button for more than 5 seconds to enter the AM reception mode.
7. Tune to the AM radio station you wrote down in Preparation using the TUNING knob, and note the decibel level of that station when you release the button.
8. Press and release the SCAN button to turn the antenna amplifier off (ASEL or TP is now displayed in the audio-HVAC display).
9. Tune to the AM radio station you wrote down in Preparation using the TUNING knob, and note the decibel level of that station when you release the button.
10. Turn the ignition switch to LOCK (0) or audio unit off to exit the test mode.
11. Compare your results to a known-good, (make sure it is the same year and trim level) in the same location and direction, and under the same environmental conditions.
