Exploded View

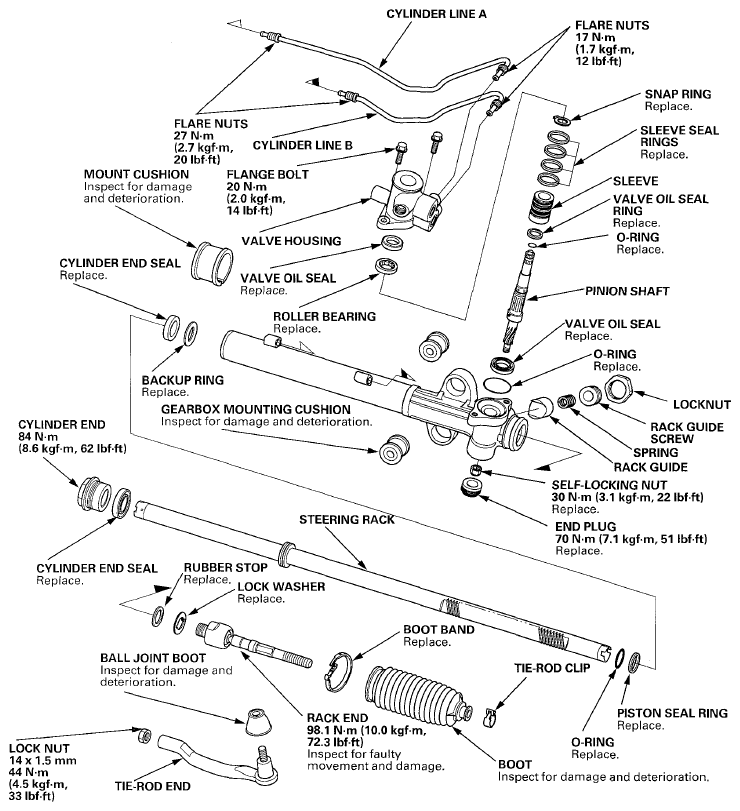

Fig 1: Exploded View Of Steering Gear Box With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Sizing Tool, 42 07HAG-SF10200 or Piston Seal Ring Sizing Tool 07HAG-SF1020A
• Oil Seal Driver, 65 07JAD-PL9A100
• Valve Seal Ring Sizing Tool 07NAG-SR3090A
• Cylinder End Seal Remover Attachment 07TAF-SZ50100
• Sleeve Seal Guide, 35.9 x 37 07YAG-S2X0100
• Seal Ring Guide, 22 x 44 07XAG-S0K0200
• Sizing Tool, 36 07ZAG-S5A0100
• Bearing Driver Attachment, 30 mm I.D. 07746-0030300
• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 28 x 30 07946-1870100
