Shift Lock Solenoid Replacement

NOTE:
  • Refer to the SHIFT LEVER DISASSEMBLY AND REASSEMBLY  as needed during the following procedures.
  • Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Disconnect the D3 switch connector (A), and remove the connector clip (B) from the mounting bracket.
    Fig 1: Identifying Connector Clip From Mounting Bracket
    G08087430Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws (A), and remove the shift lever knob (B) from the shift lever.
    Fig 2: Identifying Screws And Shift Lever Knob
    G08087431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the A/T gear position indicator panel light socket (A) from the A/T gear position indicator panel, and remove the A/T gear position indicator panel (B).
    Fig 3: Identifying A/T Gear Position Indicator Panel Light Socket And A/T Gear Position Indicator Panel
    G08087432Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Release the lock tabs (A) retaining the shift lock solenoid through the left shift lever mounting bracket using thin blade screwdrivers.
    Fig 4: Releasing Lock Tabs Using Thin Blade Screwdrivers
    G08087433Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the shift lock solenoid (A).

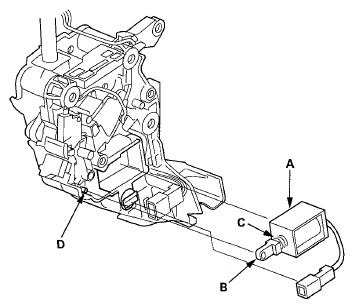

    Fig 5: Identifying Shift Lock Solenoid, Solenoid Plunger, Plunger Spring And Shift Lock Stop
    G08087434Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Apply silicone grease to the solenoid plunger (B), and the plunger spring (C), and the shift lock stop (D).
  8. Install a new shift lock solenoid.
  9. Install the A/T gear position indicator panel (A), and install the shift position indicator panel light socket (B) in the A/T gear position indicator panel.
    Fig 6: Identifying Shift Position Indicator Panel Light Socket
    G08087435Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Apply silicone grease to the top of the shift lever rod (A), and secure the shift lever knob (B) with new screws (C).
    Fig 7: Shift Lever Rod, Shift Lever Knob And Screws With Torque Specifications
    G08087436Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the D3 switch connector clip (A), and connect the D3 switch connector (B).
    Fig 8: Identifying Switch Connector Clip And Switch Connector
    G08087437Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
