Steering Wheel Disassembly/Reassembly

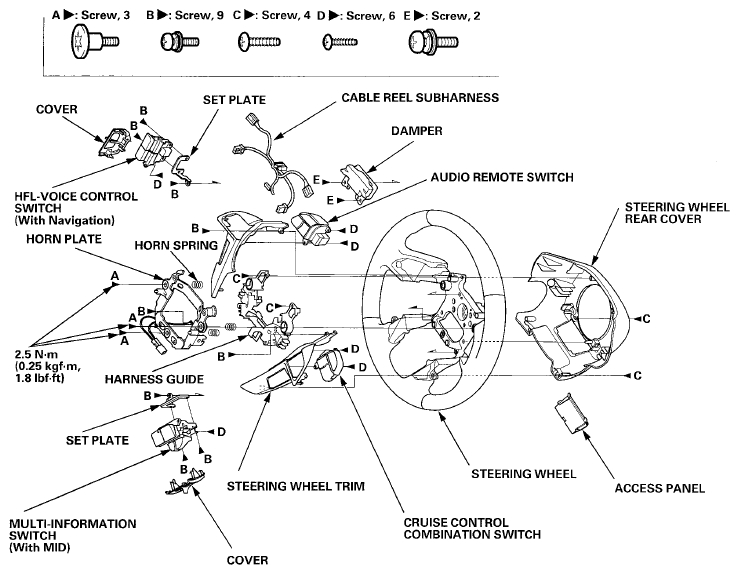

Fig 1: Identifying Steering Wheel Assembly Components
G08087961Courtesy of AMERICAN HONDA MOTOR CO., INC.
