Engine Removal & Installation: Notes

Image Description/Tool Number

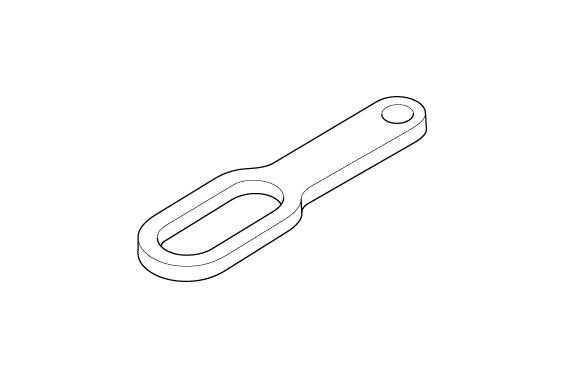

GHH49513Courtesy of HONDA, U.S.A., INC.
 Universal Lifting Eyelet 07AAK-SNAA120

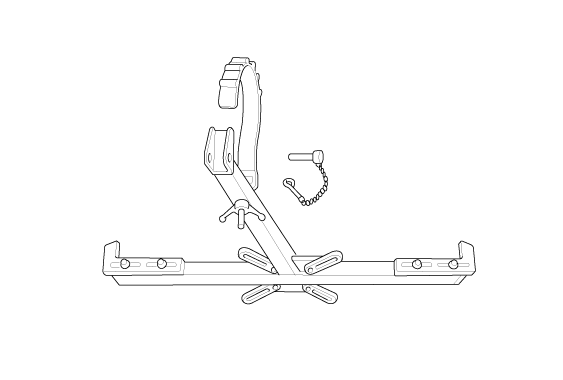

GHH47919Courtesy of HONDA, U.S.A., INC.
 Subframe Adapter VSB02C000016*

*: Available through the Acura Tool and Equipment Program 888-424-6857.

Engine Removal and Installation

Special Tools Required

Image Description/Tool Number
GHH49513Courtesy of HONDA, U.S.A., INC.
 Universal Lifting Eyelet 07AAK-SNAA120
GHH47919Courtesy of HONDA, U.S.A., INC.
 Subframe Adapter VSB02C000016*

*: Available through the Acura Tool and Equipment Program 888-424-6857.
