Engine Removal & Installation: Removal

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.

1. Left Front Fender Trim - Remove
2. Hood - Wide Open

Courtesy of HONDA, U.S.A., INC.

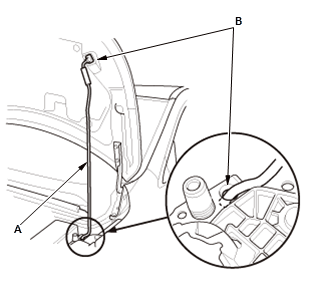

1. Open the hood

2. Remove and relocate the hood support rod (A) to the wide-open positions (B) and secure the hood.

NOTE:
- Install the hood support rod in the wide-open bracket correctly.
- Prevent the support rod from coming off the wide-open bracket.
3. Fuel Pressure - Relieve
4. 12 Volt Battery - Remove
5. Air Cleaner - Remove
6. Intake Air Duct - Remove

Courtesy of HONDA, U.S.A., INC.

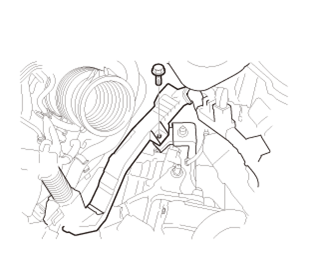

7. Intake Air Pipe - Remove

Courtesy of HONDA, U.S.A., INC.

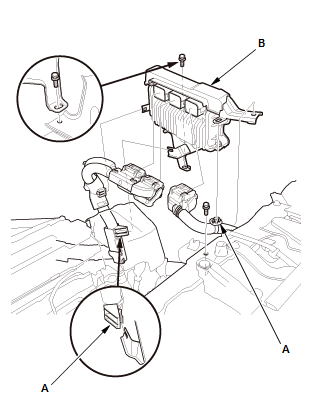

8. PCM With Bracket - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the cover and disconnect the connectors .

2. Remove the harness clamps (A).

3. Remove the PCM with bracket (B).

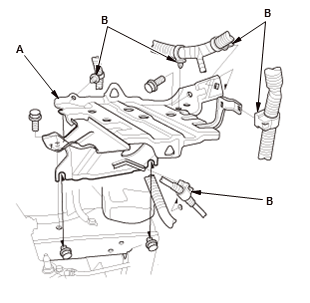

9. 12 Volt Battery Base - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the 12 volt battery base (A) and the harness clamps (B).

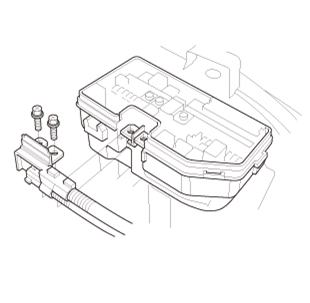

10. Positive Cable (Under-Hood Fuse/Relay Box) - Disconnect

Courtesy of HONDA, U.S.A., INC.

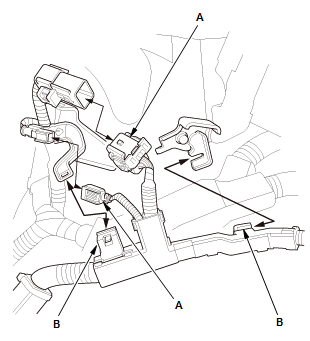

11. Connector (Engine Wire Harness) - Disconnect

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connectors (A), and remove the harness clamps (B).

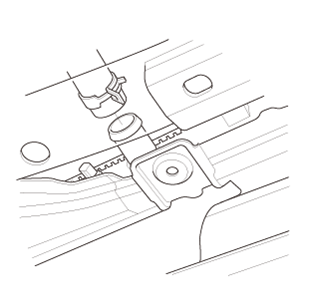

12. Harness Holder - Remove

Courtesy of HONDA, U.S.A., INC.
13.Fuel Feed Hose (Fuel Rail Side) - Disconnect
14. EVAP Canister Purge Hose and Brake Booster Vacuum Hose - Disconnect

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the EVAP canister purge hose (A) and the brake booster vacuum hose (B).
15.Steering Joint - Disconnect
NOTE: Hold the steering wheel in the steering wheel holder tool.
16. Radiator Cap - Remove
17. Vehicle - Lift
1. Raise the vehicle.
18.Front Wheel - Remove
19.Splash Shield - Remove
20.Engine Coolant - Drain
21.Engine Oil - Drain
22.Transmission Fluid - Drain
23.Front Floor Undercover - Remove - Refer to: Middle Floor Undercover Removal and Installation Rear Floor Undercover Removal and Installation Front Floor Undercover Removal and Installation
24.Rear Driveshaft Removal & Installation(AWD/4WD)
25.Exhaust Pipe A, Exhaust Pipe Bracket, and Under-Floor TWC - Remove
NOTE:
- Disconnect the secondary HO2S connector at the same time.
- Do not remove the secondary HO2S.
26.Front Stabilizer Link - Disconnect
27.Tie-Rod End Ball Joint - Disconnect
NOTE: Be careful not to damage the ball joint boot when installing the remover.
28.Front Driveshaft - Remove
29.Connector (EPS) - Disconnect
30. Lower Torque Rod Bolt - Remove

Courtesy of HONDA, U.S.A., INC.
31. Front Engine Mount Mounting Bolt - Remove

Courtesy of HONDA, U.S.A., INC.
32. Front Subframe - Support

Courtesy of HONDA, U.S.A., INC.

1. Attach the subframe adapter to the front subframe by looping the belt (A) over the front of the front subframe, then secure the belt with its stop (B), and tighten the wing nut (C)

2. Raise the transmission jack and line up the slots in the subframe adapter arms with the bolt holes on the jack base, then securely attach them with four bolts.

33. Front Subframe - Remove

Courtesy of HONDA, U.S.A., INC.

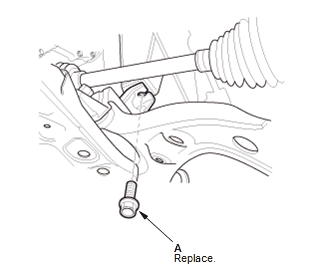

1. Remove the front subframe mid bolt (A) on both sides.

Courtesy of HONDA, U.S.A., INC.

2. Remove the front subframe mounting bolts

3. Lower the front subframe carefully.

NOTE: Check that the front subframe is free of the electrical wiring.

34. Lower Radiator Hose - Disconnect

Courtesy of HONDA, U.S.A., INC.
35. Vehicle - Lift
1. Lower the vehicle.
36. Heater Hose and Upper Radiator Hose - Disconnect

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the heater hoses (A) and the upper radiator hose (B).
37.Shift Cable (Transmission Side) - Disconnect
38.Alternator - Remove

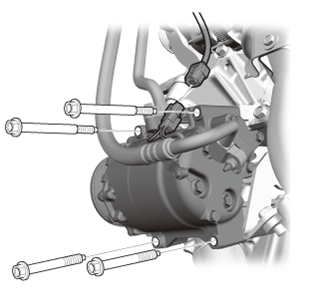

39. A/C Compressor - Move

Courtesy of HONDA, U.S.A., INC.

NOTE:
- Do not disconnect the A/C hoses.
- Do not bend the A/C hoses excessively.
- Hang the A/C compressor with a wire tie.
40. Engine - Lift and support the engine with a jack and a wood block under the oil pan.
41. Upper Torque Rod - Remove

Courtesy of HONDA, U.S.A., INC.

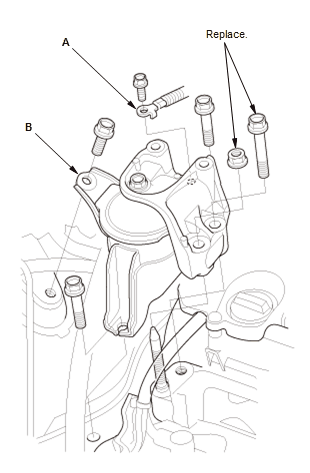

42. Side Engine Mount - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the ground cable (A)

2. Remove the side engine mount (B).

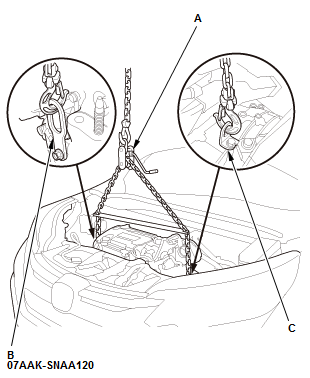

43. Chain Hoist - Install

Courtesy of HONDA, U.S.A., INC.

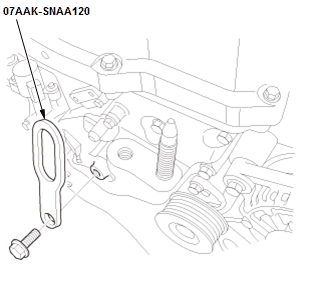

1. Install the universal lifting eyelet to the cam chain case.

Courtesy of HONDA, U.S.A., INC.

2. Attach a chain hoist (A) to universal lifting eyelet (B) and the transmission hanger (C), then lift the engine/transmission until it is securely supported by the chain hoist.

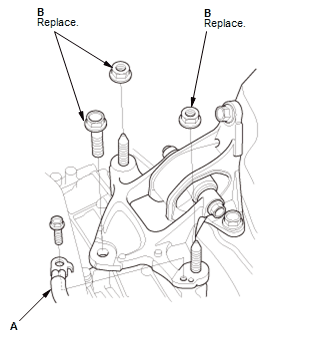

44. Transmission Mount Bracket Mounting Bolt and Nut - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the ground cable (A)

2. Remove the transmission mount bracket mounting bolt and nut (B).
45. Engine - Remove
1. Check that the engine/transmission is completely free of the vacuum hoses, the fuel hoses, the coolant hoses, and the electrical wiring
46. Slowly lower the engine/transmission about 150 mm (5.91 in). Check once again that all the hoses and the electrical wiring are disconnected and free from the engine/transmission, then lower it all the way and support it
47. Remove the chain hoist from the engine/transmission
48. Raise the vehicle, and remove the engine/transmission from under the vehicle.
