ATEQ TPMS Reset Procedure
Set the tire pressure of all wheels to pressure specified on the tire and loading information label. Make sure the vehicle is at a complete stop.
- For Manual transmission models: The shift lever is in "N".
- For Continuously variable transmission models: The shift lever is in "P".
- The power mode is ON.
Calibrate the system from the CUSTOMIZE SETTINGS menu on the multi-information display:

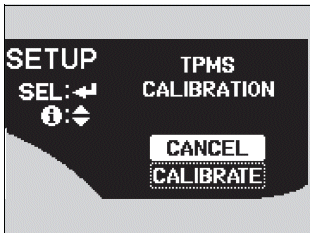

- Press the UP/DOWN ARROW buttons on the right side of steering wheel to select CUSTOMIZE SETTINGS, then press the SEL/RESET button to see TPMS CALIBRATION appears on the display. See Fig 1.
- Press the SEL/RESET button. The display switches to the customization setup screen to select CALIBRATE.
- Press the ARROW buttons and select CALIBRATE, then press the SEL/RESET button to see CALIBRATION STARTED screen appears, then the display returns to the customization menu screen.
- The calibration process finishes automatically.
NOTE:
If the CALIBRATION FAILED TO START message appears, repeat steps 2 and 3.
