VSA Modulator-Control Unit Removal and Installation: Installation

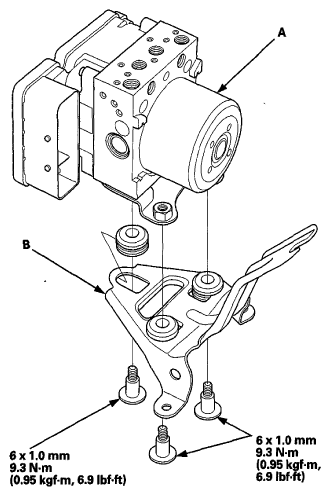

Install the VSA modulator-control unit (A) onto the bracket (B).

Fig 1: VSA Modulator-Control Unit, Brackets And Mounting Bolts Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

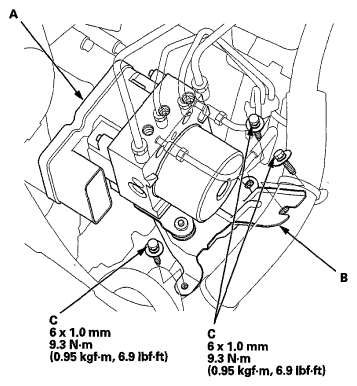

Install the VSA modulator-control unit (A) with the bracket (B) to the body, then install the VSA modulator-control unit bracket mounting bolts (C).

Fig 2: VSA Modulator-Control Unit, Brackets And Mounting Bolts Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the connecting surface of the VSA modulator-control unit 32P connector (A) to the VSA modulator-control unit.

Fig 3: Pulling Down Lever Of VSA Modulator-Control Unit 32P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull down the lever (B) of the VSA modulator-control unit 32P connector, then confirm the connector is fully seated.

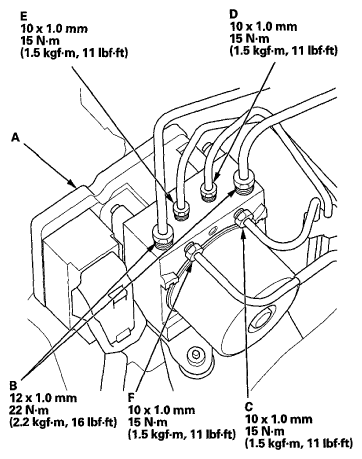

Connect the 10 mm brake lines and the 12 mm brake lines to the VSA modulator-control unit (A).
NOTE: The brake lines are connected to the master cylinder (B), the left-rear (C), the right-front (D), the left-front (E), and the right-rear (F) brake systems.

Fig 4: VSA Modulator-Control Unit And Brake Lines With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the VSA modulator-control unit update (see VSA MODULATOR-CONTROL UNIT UPDATE ).
Do the VSA sensor neutral position memorization procedure (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
