Exploded View

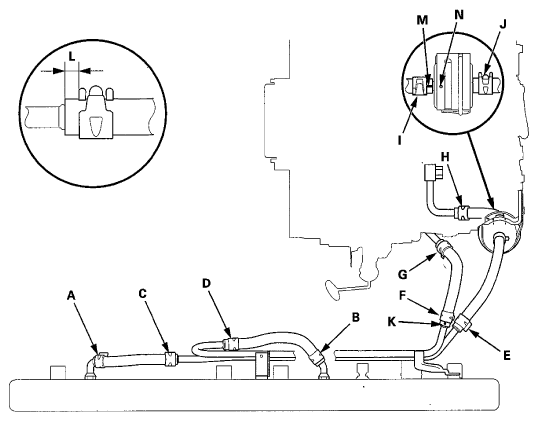

Fig 1: Locating ATF Cooler Hoses And Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at the appropriate points in reference to the following list. Align the paint mark (K) facing up.

ATF COOLER HOSES REFERENCE CHART

Point	Distance from Hose End to Clip (L)	Hose End Contact Point
A	2-4 mm (0.08-0.16 in)	Bulge
B	2-4 mm (0.08-0.16 in)	Bulge
C	6-8 mm (0.24-0.31 in)	Bulge
D
E
F
G
H
I	6-8 mm (0.24-0.31 in)	At 2 mm (0.08 in) or less from ATF filter housing
J	6-8 mm (0.24-0.31 in)	ATF filter housing

Align the paint mark on the ATF cooler hose end (M) with the paint mark (N) on the ATF filter holder.
Refill the transmission with ATF to the proper level (see ATF LEVEL CHECK ).
