Removal and Installation

NOTE:  If the keyless access/TPMS control unit is replaced, Do The Keyless Access Registration and Memorizing The Tire Pressure Sensor ID . If the original keyless access/TPMS control unit is installed, confirm that all systems work properly.

1. Glove Box - Remove
2. Keyless Access/TPMS Control Unit - Remove

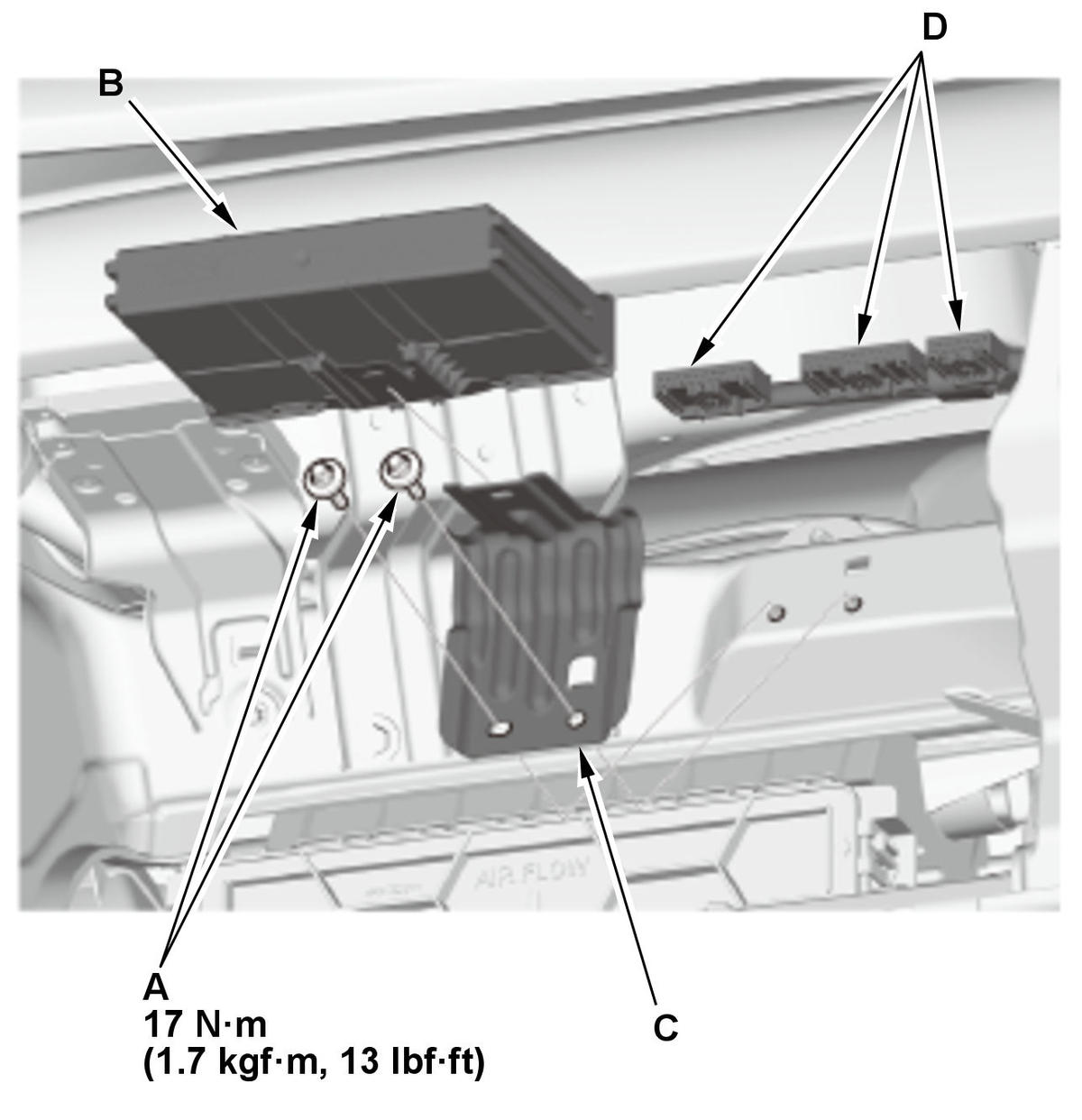

   Fig 1: Keyless Access/TPMS Control Unit With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the TORX bolts (A) using a TORX E8 socket. 2. Remove the keyless access/TPMS control unit (B) with the bracket (C). 3. Disconnect the connectors (D). 4. Remove the keyless access/TPMS control unit from the bracket.

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE:  If the bolt threads of the steering hanger beam are stripped, replace the bolts with one-size larger bolts (available as a service part), which are specifically designed to tighten the instrument panel to the specified torque setting.

4. Keyless Access System - Register
5. Tire Pressure Sensor ID - Memorize
