Visual Index - Body

Location Index
Body 1
Body 2
Body 3
Body 4
Body 5
Body 6 (Driver's Seat)
Body 7 (Front Passenger's Seat)
Body 8 (Air Conditioning 1)

Body 1

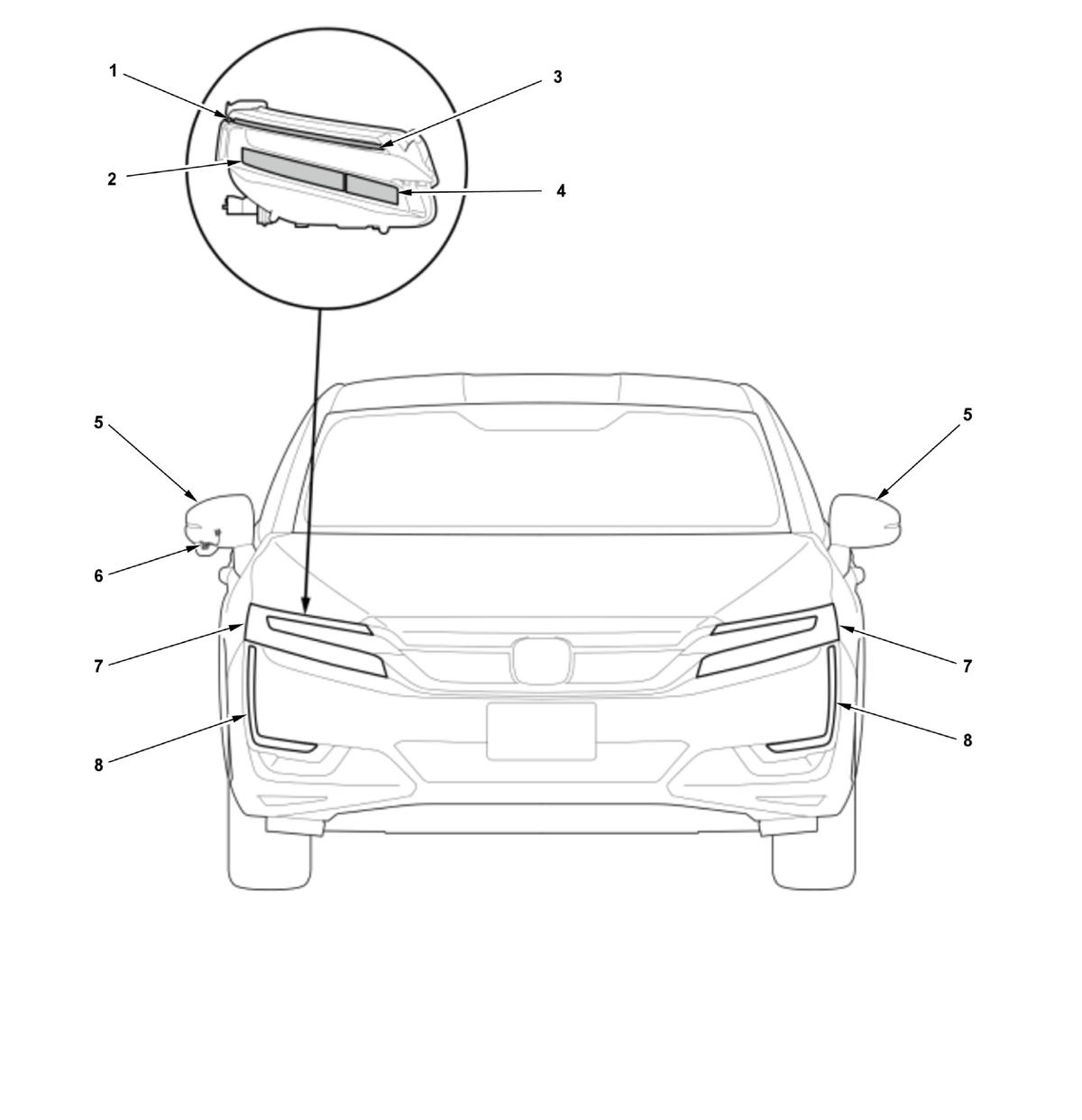

GHH418913Courtesy of HONDA, U.S.A., INC.

Body 1

No. Component Related System
1 Front Side Maker Light (LED)
2 Headlight (Low Beam) (LED)
3 Front Turn Signal Light (LED)
4 Headlight (High Beam) (LED) Exterior Lights
5 Power Mirrors Power Mirrors
6 Lanewatch Camera LaneWatch
7 Head Lights
8 Front Parking/Daytime Running Lights (LED)

Body 2

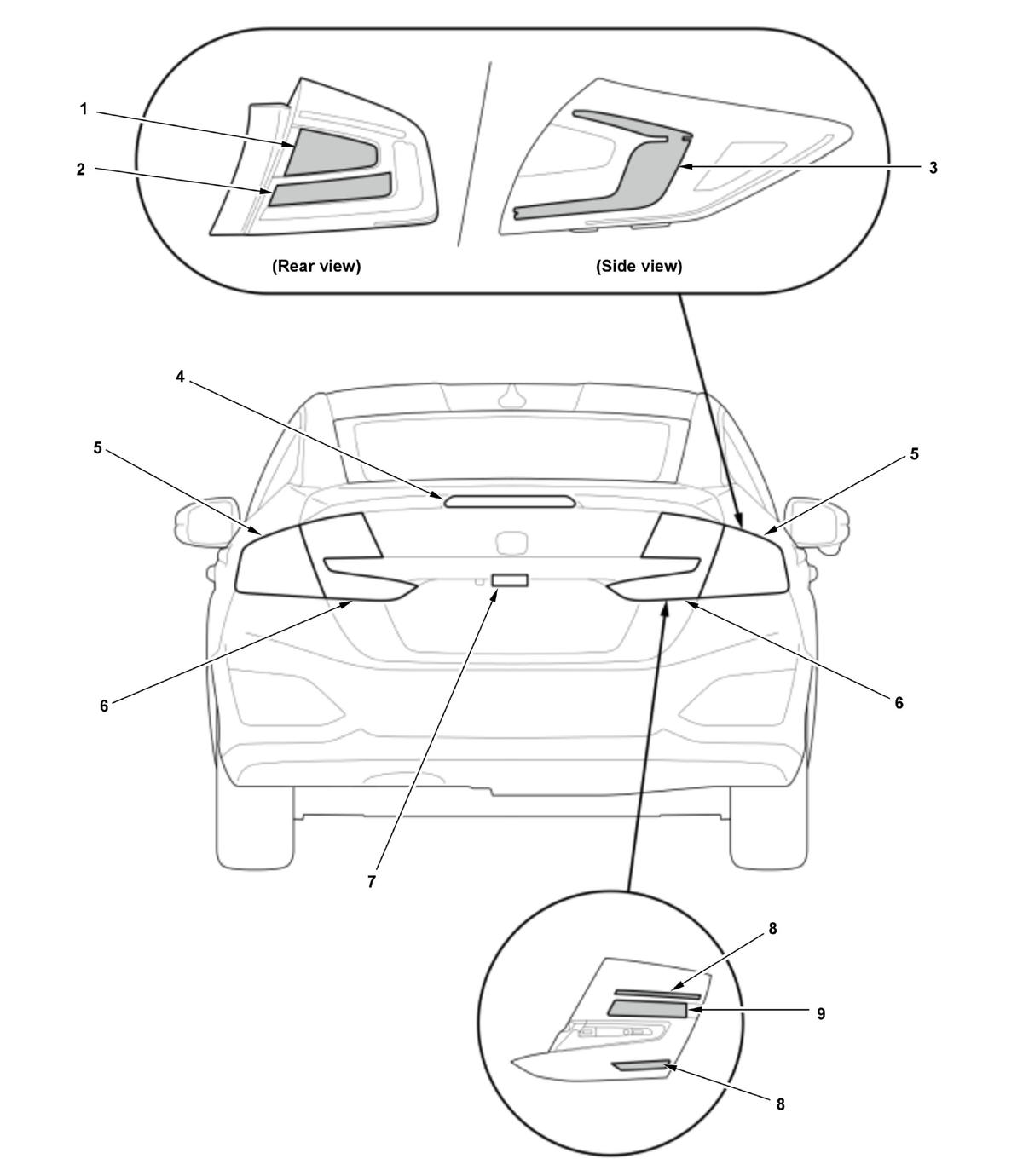

GHH418914Courtesy of HONDA, U.S.A., INC.

Body 2

No. Component Related System
1 Rear Turn Signal Light (LED)
2 Brake Light/Taillight (LED)
3 Rear Side Marker Light (LED)
No. Component Related System
4 High Mount Brake Light (LED) Exterior Lights
5 Taillight
6 Inner Taillights
7 License Plate Light (LED)
8 Inner Taillights (LED)
9 Back-up Light (LED) Exterior Lights

Body 3

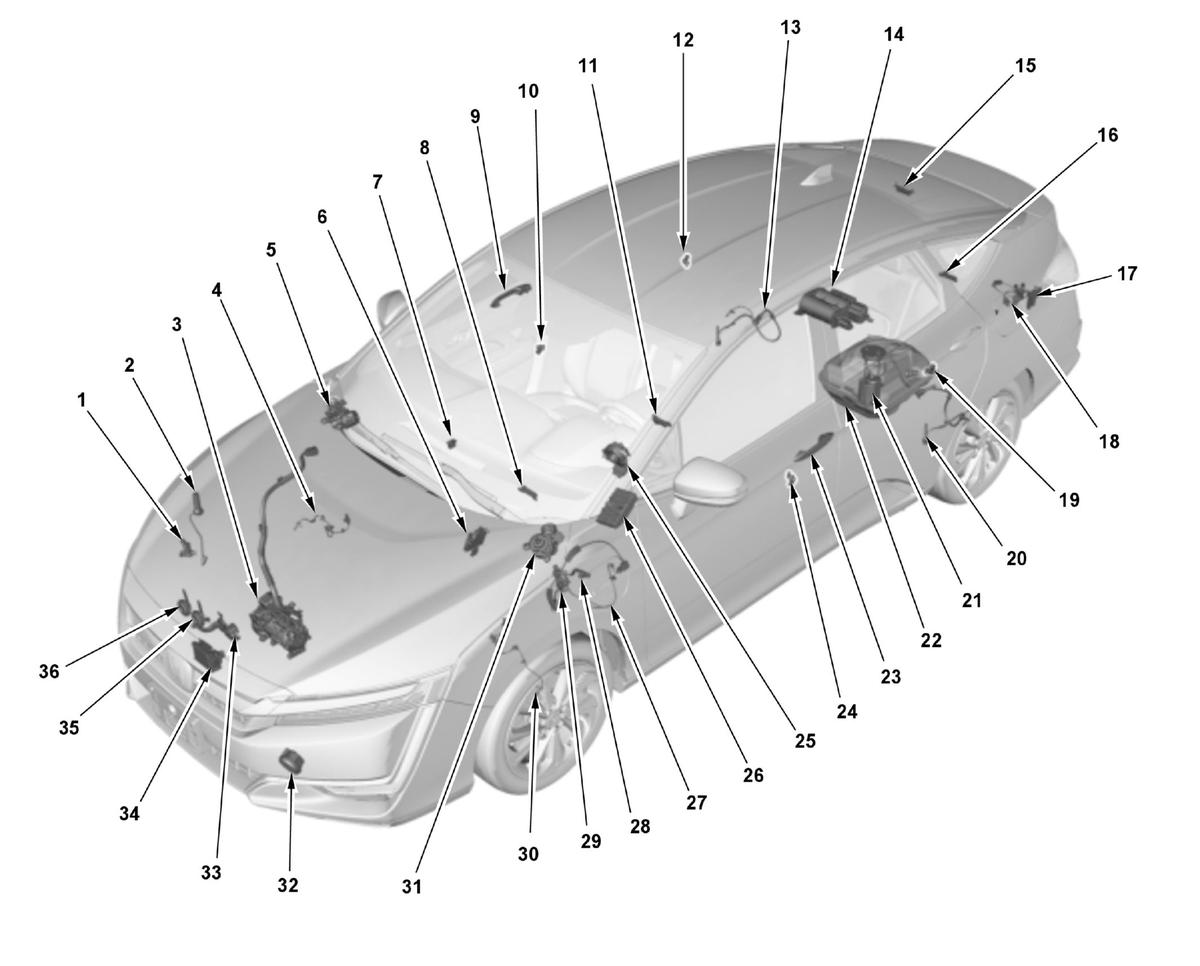

GHH418915Courtesy of HONDA, U.S.A., INC.

Body 3

No. Component Related System
1 Windshield Washer Motor Wipers/Washers
2 Washer Fluid Leveling Switch*
3 Electric A/C Compressor Climate Control

*: Canada model

No. Component Related System
4 Right-Front Wheel Speed Sensor
5 Passenger's Windshield Wiper Control Unit/Motor Wipers/Washers
6 Washer Motor Control Unit Wipers/Washers
7 Automatic Lighting Control Unit-Sensor
8 Front Inner LF Antenna Keyless Access System
9 Front Passenger's Door Outer Handle
  • -

    Front Passenger's Door Outer Handle Lock Switch

  • -

    Front Passenger's Door Outer Handle LF Antenna/Touch Sensor

 Keyless Access System
10 Front Passenger's Door Switch
11 Rear Inner LF Antenna Keyless Access System
12 Right Rear Door Switch
13 Right-Rear Wheel Speed Sensor
14 Evaporative Emission (EVAP) Canister

Evaporative Emission (EVAP) Canister Drain Box

Evaporative Emission (EVAP) Leak Check Module

 Fuel and Emissions Systems
15 Rear Shelf LF Antenna Keyless Access System
16 Rear Bumper LF Antenna Keyless Access System
17 Fuel Fill Door Opener Solenoid Fuel Fill Door
18 Fuel Fill Door Opener Sensor Fuel Fill Door
19 Left Rear Door Switch
20 Left-Rear Wheel Speed Sensor
21 Fuel Tank Unit
  • -

    Fuel Gauge Sending Unit

  • -

    Fuel Pressure Regulator

  • -

    Fuel Filter
22 Fuel Tank
  • -

    Fuel Tank Pressure (FTP) Sensor

 Fuel and Emissions Systems
23 Driver's Door Outer Handle
  • -

    Driver's Door Outer Handle Lock Switch

  • -

    Driver's Door Outer Handle LF Antenna/Touch Sensor

 Keyless Access System

*: Canada model

No. Component Related System
24 Driver's Door Switch
25 Cable Reel
26 Body Control Module
27 Charge Lid Switch Charge Lid
28 Charge Lid Illumination Lamp/Charge Indicator
29 Charge Lid Actuator Charge Lid
30 Left-Front Wheel Speed Sensor
31 Driver's Windshield Wiper Control Unit/Motor Wipers/Washers
32 Acoustic Vehicle Alerting Speaker Acoustic Vehicle Alerting System
33 Hood Latch Switch Keyless/Power Door Locks/Security System
34 Millimeter Wave Radar
35 Horn (High)/Security Horn
36 Horn (Low) Horns

*: Canada model

Body 4

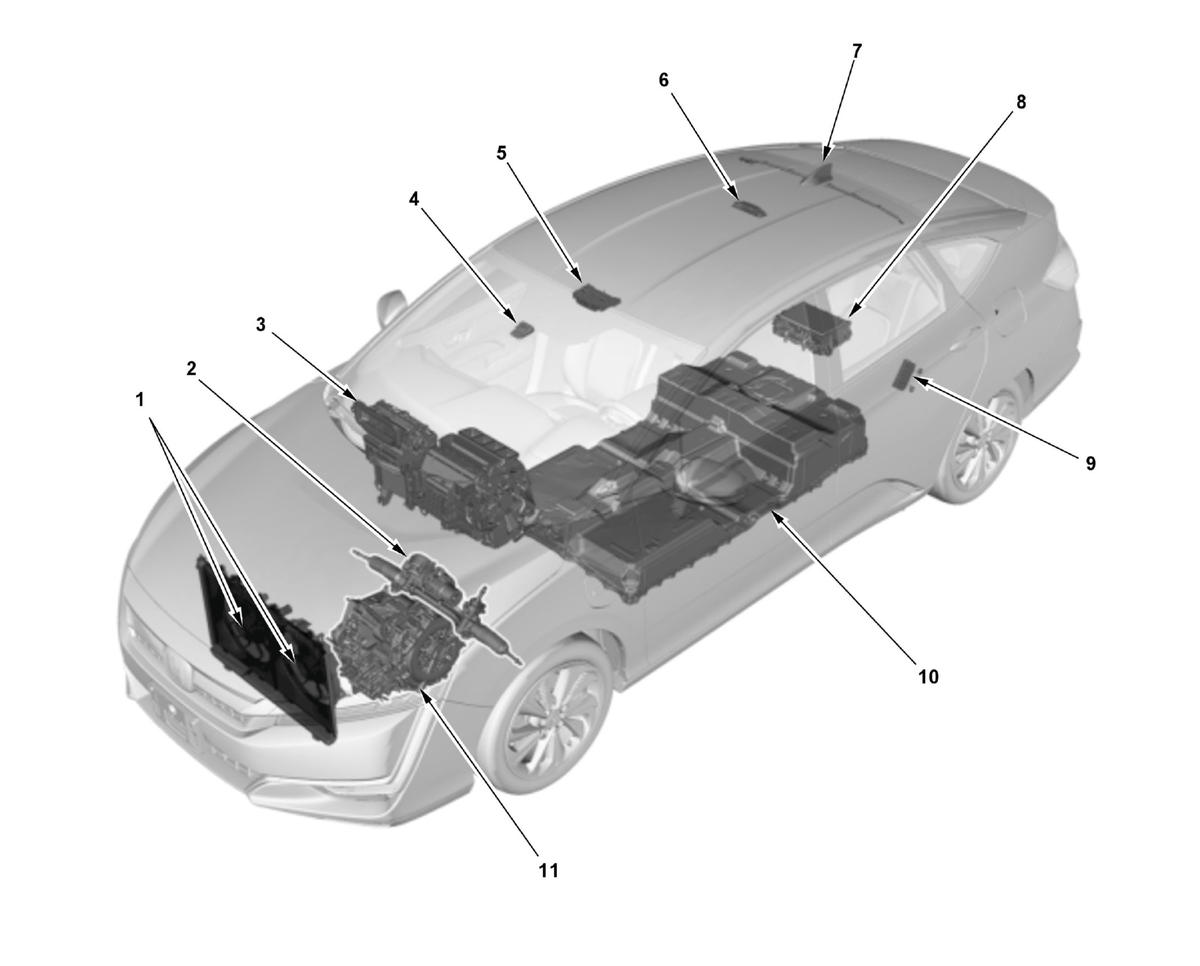

GHH418916Courtesy of HONDA, U.S.A., INC.

Body 4

No. Component Related System
1 Cooling Fan/RFC Unit/Fan Shroud
2 EPS Motor/Control Unit
  • -

    Motor Angle Sensor
3 HVAC Unit Climate Control
4 Multipurpose Camera Unit

*: With Battery Heater

No. Component Related System
5 Roof Module
  • -

    Front Individual Map Light

  • -

    Interior Light

  • -

    Homelink Switch

  • -

    Homelink Indicator

  • -

    Front Individual Map Light Switch

  • -

    Front Ambient Light

  • -

    Interior Light Switch
6 Rear Individual Map Light
  • -

    Rear Individual Map Light Switch

  • -

    Rear Ambient Light
7 Roof Antenna (AM/FM/XM/TEL/GPS)
8 Battery Charger Electric Powertrain
9 Tuner Unit
10 IPU
  • -

    ES Coolant Temperature Sensor 3

  • -

    Battery Condition Monitor Module A

  • -

    Battery Condition Monitor Module B

  • -

    DC-DC Converter

  • -

    Battery Heater*

  • -

    Main Junction Board

  • -

    Sub Junction Board

 Electric Powertrain
11 e-CVT
  • -

    Generator Motor

  • -

    Traction Motor

  • -

    Motor Rotor Position Sensor

*: With Battery Heater

Body 5

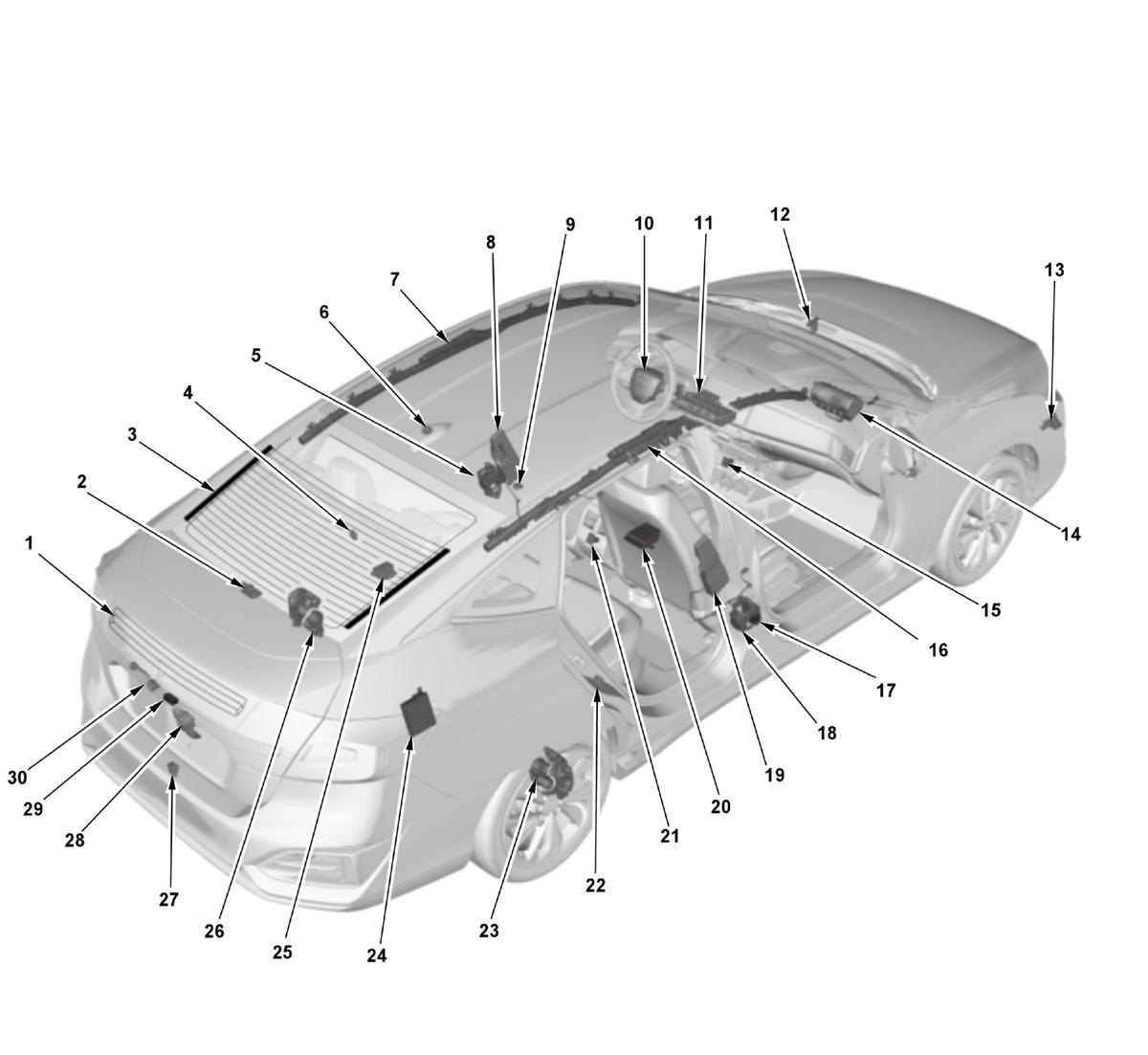

GHH418917Courtesy of HONDA, U.S.A., INC.

Body 5

No. Component Related System
1 Lower Rear Window Defogger Rear Window Defogger
2 Trunk Light Interior Lights
3 Upper Rear Window Defogger Rear Window Defogger
4 Left Side Impact Sensor (Second) SRS (Supplemental Restraint System)
5 Driver's Seat Belt Tensioner SRS (Supplemental Restraint System)
6 Rear Active Noise Cancellation Microphone Audio System
7 Left Side Curtain Airbag SRS (Supplemental Restraint System)
8 Driver's Side Airbag SRS (Supplemental Restraint System)
9 Left Side Impact Sensor (First) SRS (Supplemental Restraint System)
10 Driver's Airbag
  • -

    Horn Switch
11 Driver's Knee Airbag SRS (Supplemental Restraint System)
12 Left Front Impact Sensor SRS (Supplemental Restraint System)
13 Right Front Impact Sensor SRS (Supplemental Restraint System)
14 Front Passenger's Airbag SRS (Supplemental Restraint System)
No. Component Related System
15 Front Accessory Power Socket Accessory Power Sockets
16 Right Side Curtain Airbag SRS (Supplemental Restraint System)
17 Right Side Impact Sensor (First) SRS (Supplemental Restraint System)
18 Front Passenger's Seat Belt Tensioner SRS (Supplemental Restraint System)
19 Front Passenger's Side Airbag SRS (Supplemental Restraint System)
20 SRS Unit
21 Console Accessory Power Socket Accessory Power Sockets
22 Right Side Impact Sensor (Second) SRS (Supplemental Restraint System)
23 Right-Rear Electric Parking Brake Actuator Electric Parking Brake
24 Telematics Control Unit Telematics System
25 RF Unit Keyless Access System
26 Left-Rear Electric Parking Brake Actuator Electric Parking Brake
27 Keyless Buzzer
28 Trunk Lid Latch
  • -

    Trunk Lid Latch Switch

  • -

    Trunk Lid Opener Solenoid
29 Trunk Lid Outer Handle Switch
30 Rearview Camera Navigation System

Body 6 (Driver's Seat)

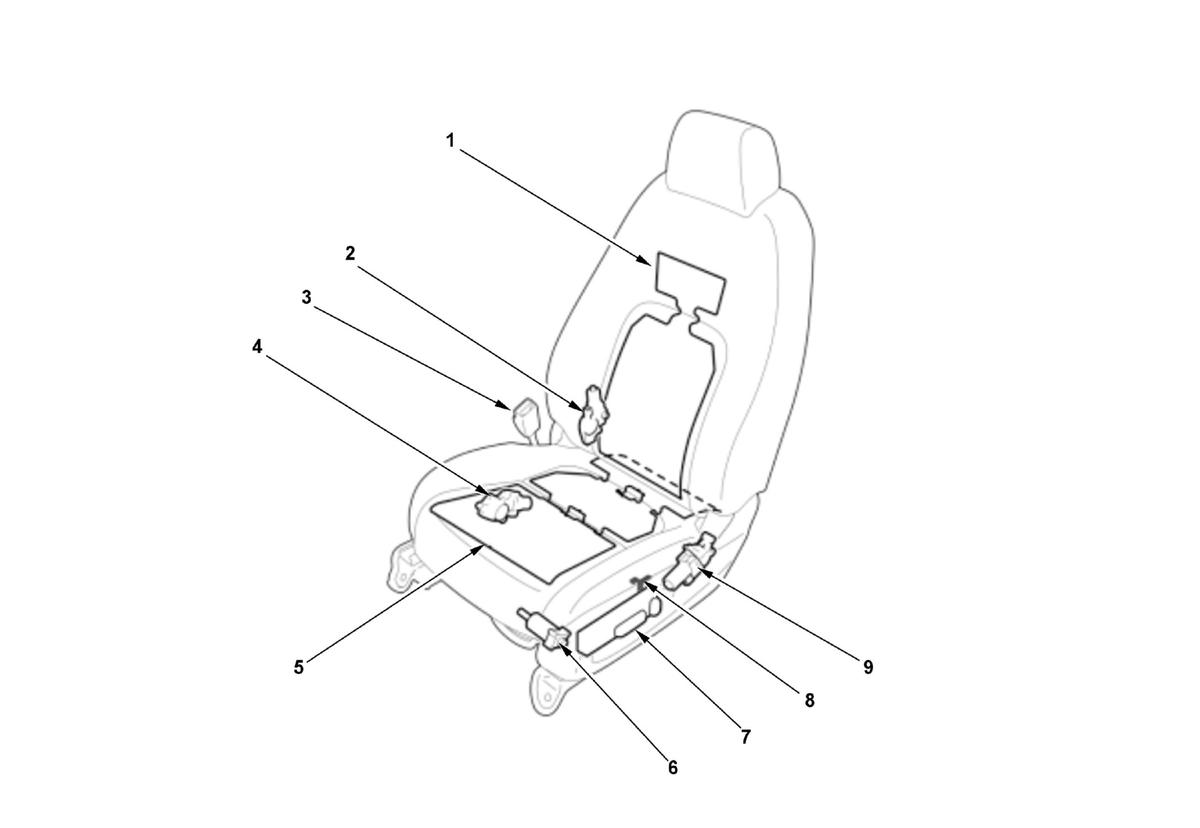

GHH418918Courtesy of HONDA, U.S.A., INC.

Body 6 (Driver's Seat)

No. Component Related System
1 Seat-Back Heater Seat Heaters
2 Recline Motor/Position Sensor
3 Driver's Seat Belt Buckle Switch Reminder Systems
4 Front Up-Down Motor/Position Sensor Driving Position Memory System (DPMS)
5 Seat Cushion Heater Seat Heaters
6 Slide Motor/Position Sensor
7 Power Seat Control Unit/Power Seat Adjustment Switch
8 Driver's Seat Position Sensor SRS (Supplemental Restraint System)
9 Rear Up-Down Motor/Position Sensor

Body 7 (Front Passenger's Seat)

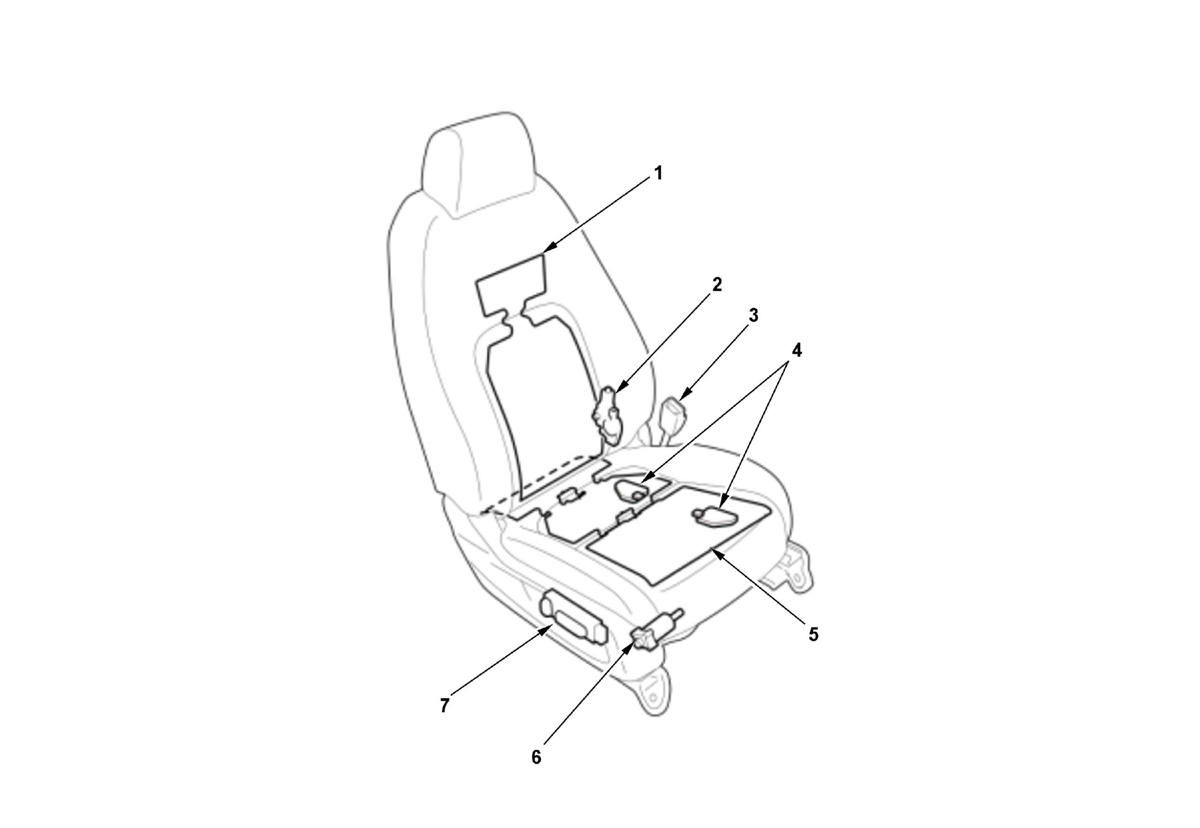

GHH418919Courtesy of HONDA, U.S.A., INC.

Body 7 (Front Passenger's Seat)

No. Component Related System
1 Seat-Back Heater Seat Heaters
2 Recline Motor Power Seats
3 Front Passenger's Seat Belt Buckle Switch Reminder Systems
4 Front Passenger's Weight Sensors
5 Seat Cushion Heater Seat Heaters
6 Slide Motor Power Seats
7 Power Seat Adjustment Switch Power Seats

Body 8 (Air Conditioning)

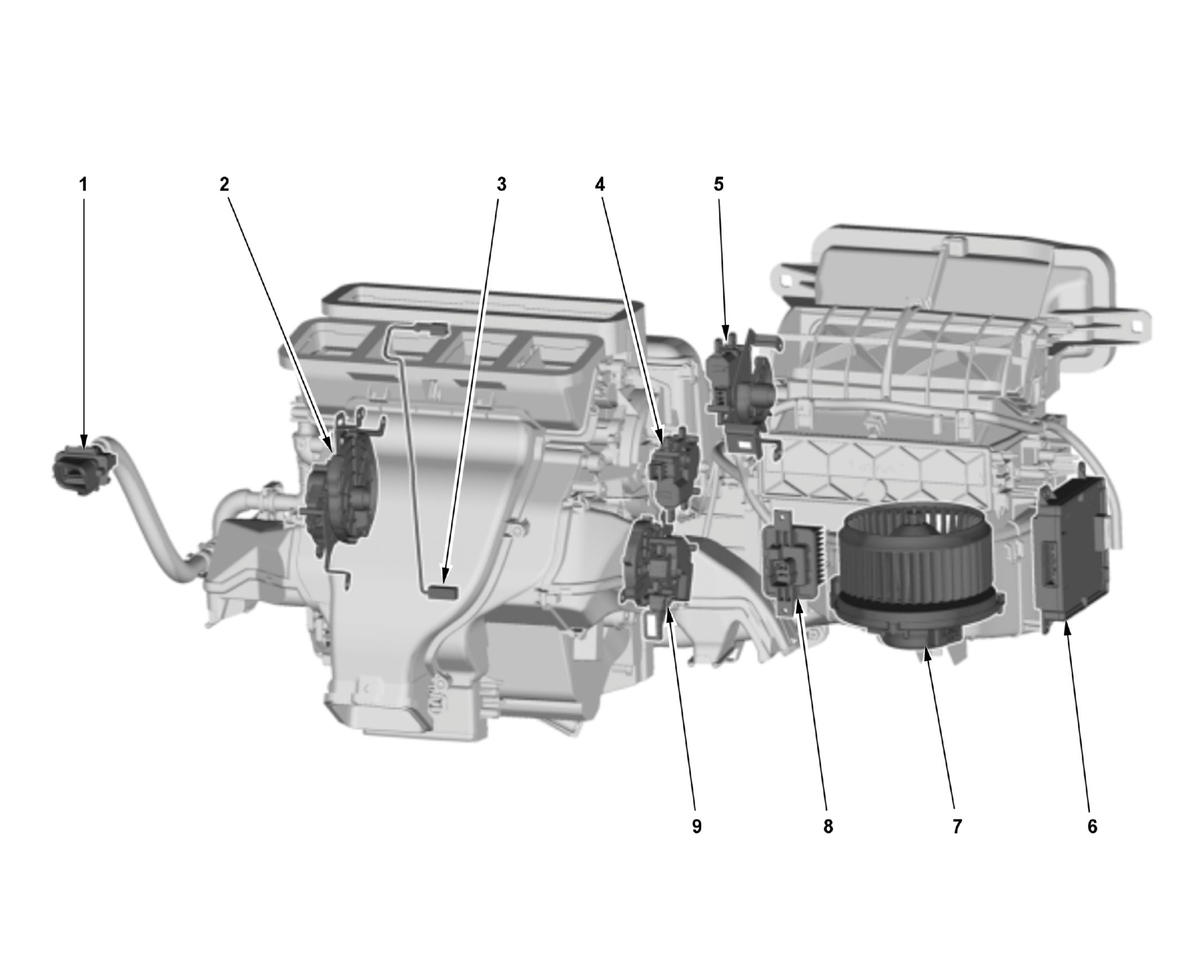

GHH418920Courtesy of HONDA, U.S.A., INC.

Body 8 (Air Conditioning)

No. Component Related System
1 Humidity/In-Car Temperature Sensor Climate Control
2 Driver's Air Mix Control Motor Climate Control
3 Evaporator Temperature Sensor Climate Control
4 Mode Control Motor Climate Control
5 Recirculation Control Motor Climate Control
6 Climate Control Unit
7 Blower Motor Climate Control
8 Power Transister Climate Control
9 Passenger's Air Mix Control Motor Climate Control
