Visual Index - Door
| Location Index |
|---|
| Door 1 (Driver's Door) |
| Door 2 (Front Passenger's Door) |
| Door 3 (Left Rear Door) |
| Door 4 (Right Rear Door) |

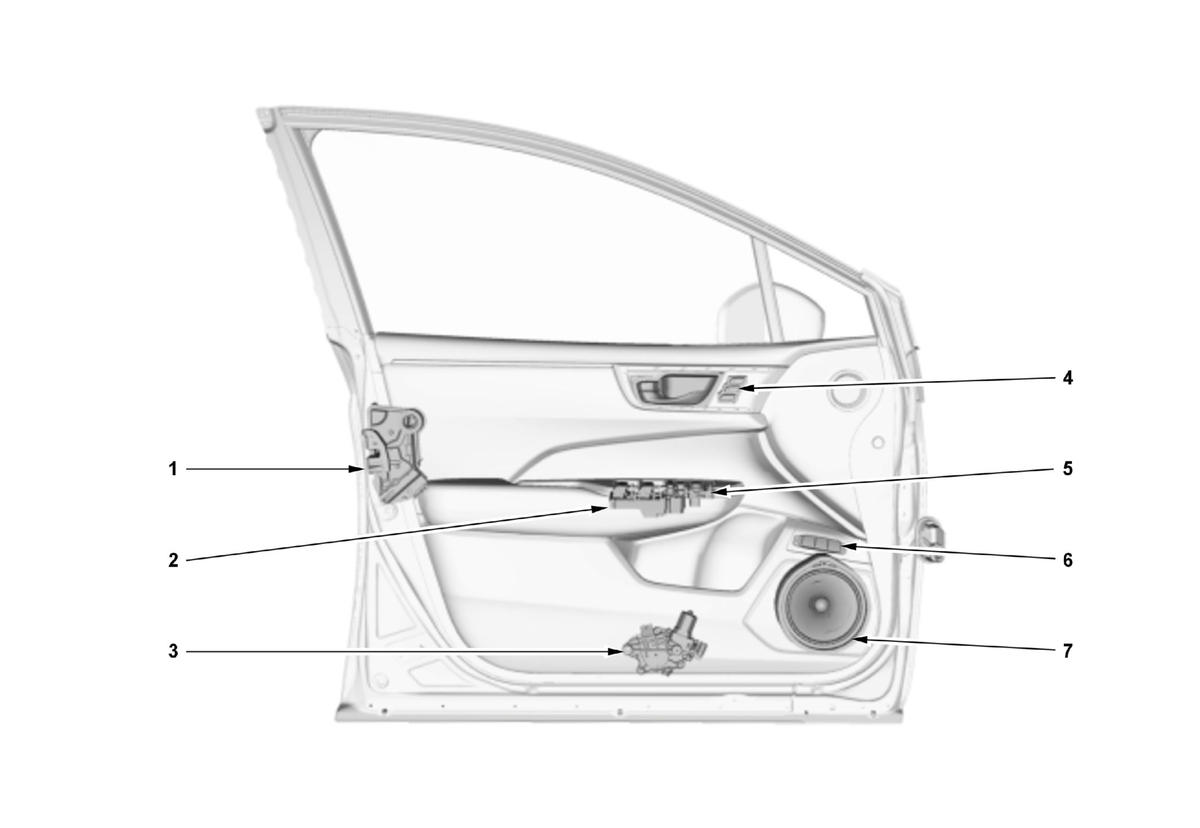

Door 1 (Driver's Door)
Door 1 (Driver's Door)
| No. | Component | Related System |
|---|---|---|
| 1 | Driver's Door Latch
|
|
| 2 | Power Window Master Switch | |
| 3 | Driver's Power Window Motor | Power Windows |
| 4 | Driving Position Memory Switch | Driving Position Memory System (DPMS) |
| 5 | Power Mirror Switch | Power Mirrors |
| 6 | Fuel Fill Door Opener Switch Trunk Lid Opener Switch |
Fuel Fill Door |
| No. | Component | Related System |
|---|---|---|
| 7 | Driver's Door Speaker |

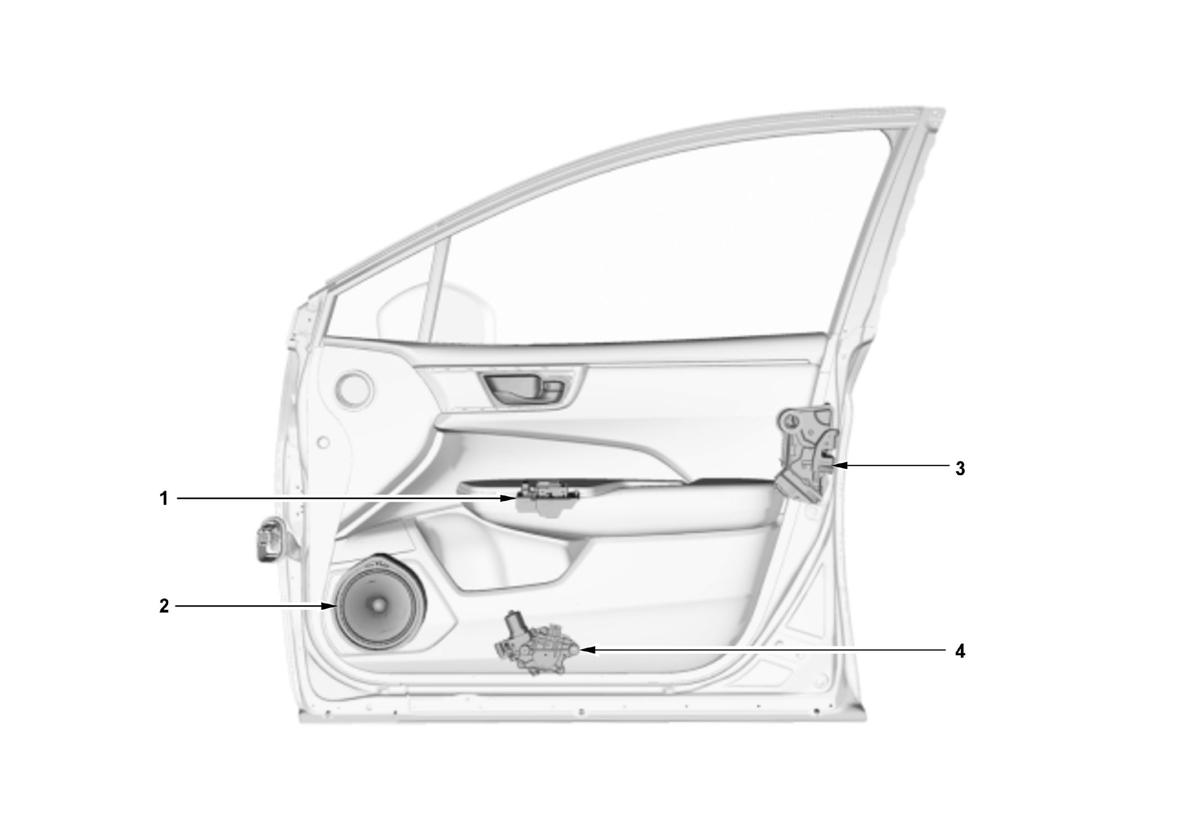

Door 2 (Front Passenger's Door)
Door 2 (Front Passenger's Door)
| No. | Component | Related System |
|---|---|---|
| 1 | Front Passenger's Power Window Switch | |
| 2 | Front Passenger's Door Speaker | |
| 3 | Front Passenger's Door Latch
|
Keyless/Power Door Locks/Security System |
| 4 | Front Passenger's Power Window Motor | Power Windows |

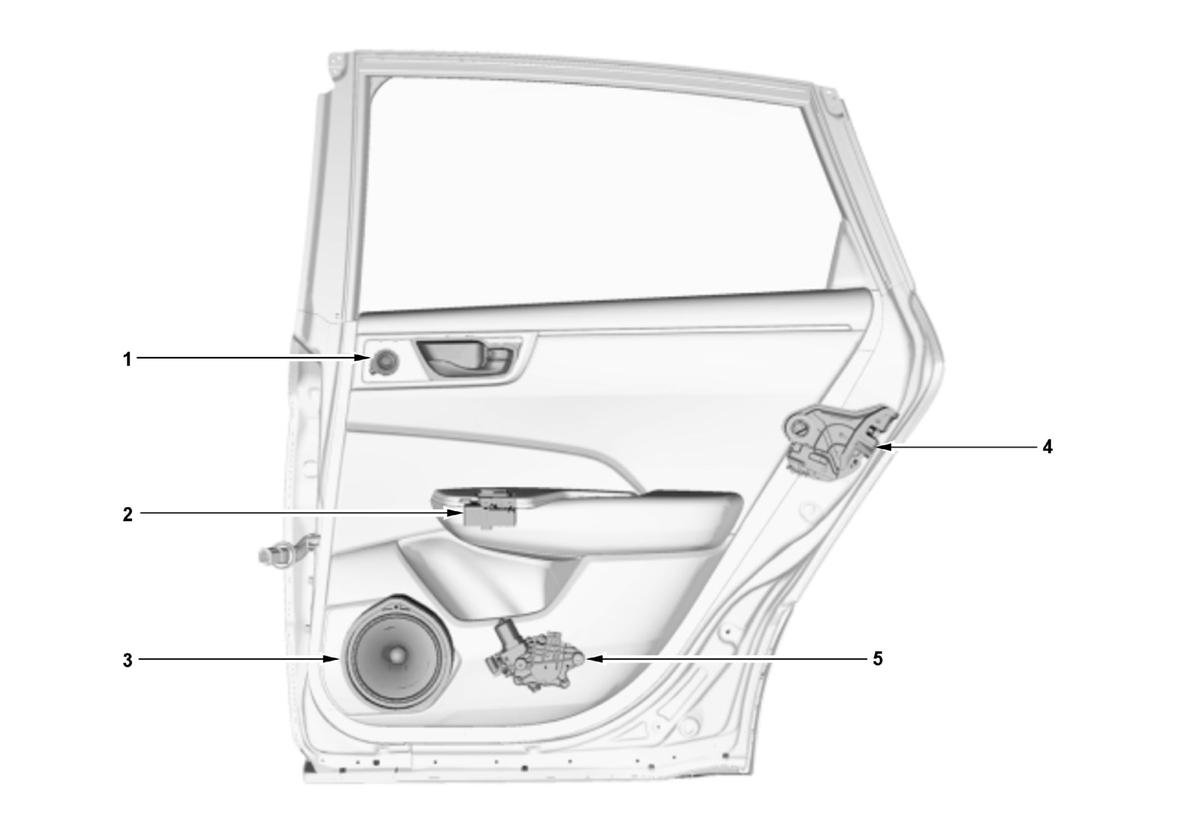

Door 3 (Left Rear Door)
Door 3 (Left Rear Door)
| No. | Component | Related System |
|---|---|---|
| 1 | Left Rear Door Latch
|
Keyless/Power Door Locks/Security System |
| 2 | Left Rear Power Window Motor | Power Windows |
| 3 | Left Rear Tweeter | Audio System |
| 4 | Left Rear Power Window Switch | Power Windows |
| 5 | Left Rear Door Speaker | Audio System |
Door 4 (Right Rear Door)
Door 4 (Right Rear Door)
| No. | Component | Related System |
|---|---|---|
| 1 | Right Rear Tweeter | Audio System |
| 2 | Right Rear Power Window Switch | Power Windows |
| 3 | Right Rear Door Speaker | Audio System |
| 4 | Right Rear Door Latch
|
Keyless/Power Door Locks/Security System |
| 5 | Right Rear Power Window Motor | Power Windows |
