TPMS Calibration Procedure
You can calibrate the system from the customized feature on the audio/information screen.
- Turn the ignition switch to ON.
- Gear position in P or N.

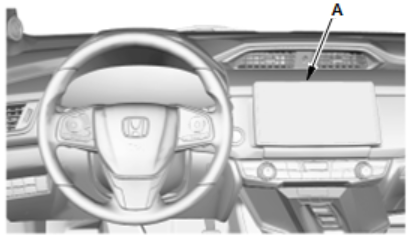

- Select the HOME button on the screen (A). See Fig 1.
- Select SETTINGS.
- Select VEHICLE.
- Select TPMS CALIBRATION.
- Select CALIBRATE. When the calibration is complete, the display returns to the customization menu screen.
- The calibration process finishes automatically after approximately 30 minutes of cumulative driving at speeds between 30-65 mph (48-105 km/h).
NOTE:
During the driving period, if the power system is turned on and the vehicle is not moved within 45 seconds, you may notice the low tire pressure/TPMS indicator comes on briefly. This is normal and indicates that the calibration process is not yet complete.
NOTE:
If the CALIBRATION FAILED TO START message appears, repeat steps 5-7.
