DTC P0502: CVT Speed Sensor Circuit Open/Short
General Description

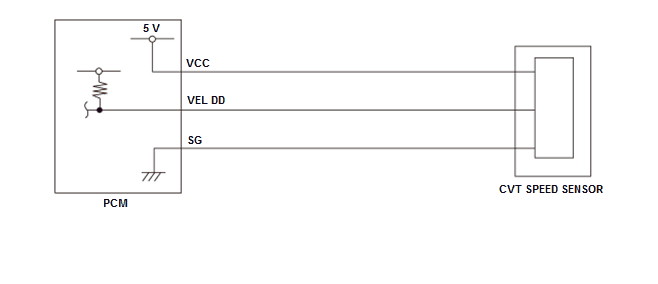

The CVT speed sensor is attached to the outside of the transmission housing. The CVT speed sensor detects the number of revolutions of the secondary driven gear and sends a pulsing signal to the powertrain control module (PCM). The PCM converts the pulsing signal into vehicle speed. If no pulses occur with the secondary driven gear rotating, the PCM detects a malfunction that may be caused by an open, an intermittent open, or a short to ground. If no signal from the CVT speed sensor is received for a set time, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 4 seconds or more |
| DTC Type | One drive cycle, MIL on, A/T gear position indicator blinks |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [Engine Speed] | 500 rpm | - |
| Drive pulley speed [Input Shaft (Drive Pulley) Speed rpm] | 200 rpm | - |
| 12 volt battery voltage [Battery Voltage] | 10.0 V | - |
| Shift lever position | Without paddle shifter | D, S, L |
| With paddle shifter | D, S | |
| No active DTCs set (prevents monitor from running) | P0501, P0705, P0746, P0777, P0780, P0792, P0793, P0796, P0962, P0963, P0966, P0967, P0970, P0971, P1898, P1899 | |
| Other | No electrical noise in the CVT speed sensor output circuit | |
| Decelerate and fuel cut-off for at least 3 seconds | ||
[ ]: HDS Parameter
Malfunction Threshold
No signal from the CVT speed sensor is detected for at least 4 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- CVT speed sensor line open (includes connector loose connection or disconnection)
- CVT speed sensor line short to ground
- CVT speed sensor failure
- PCM internal circuit failure
Confirmation Procedure

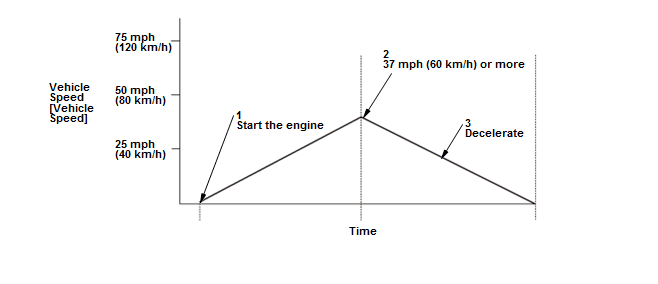

Operating Condition
- 1. Start the engine.
- 2. Drive the vehicle at a speed of 37 mph (60 km/h) or more.
- 3. Release the accelerator pedal, and slow the vehicle.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
