VSA - System Diagram: Notes

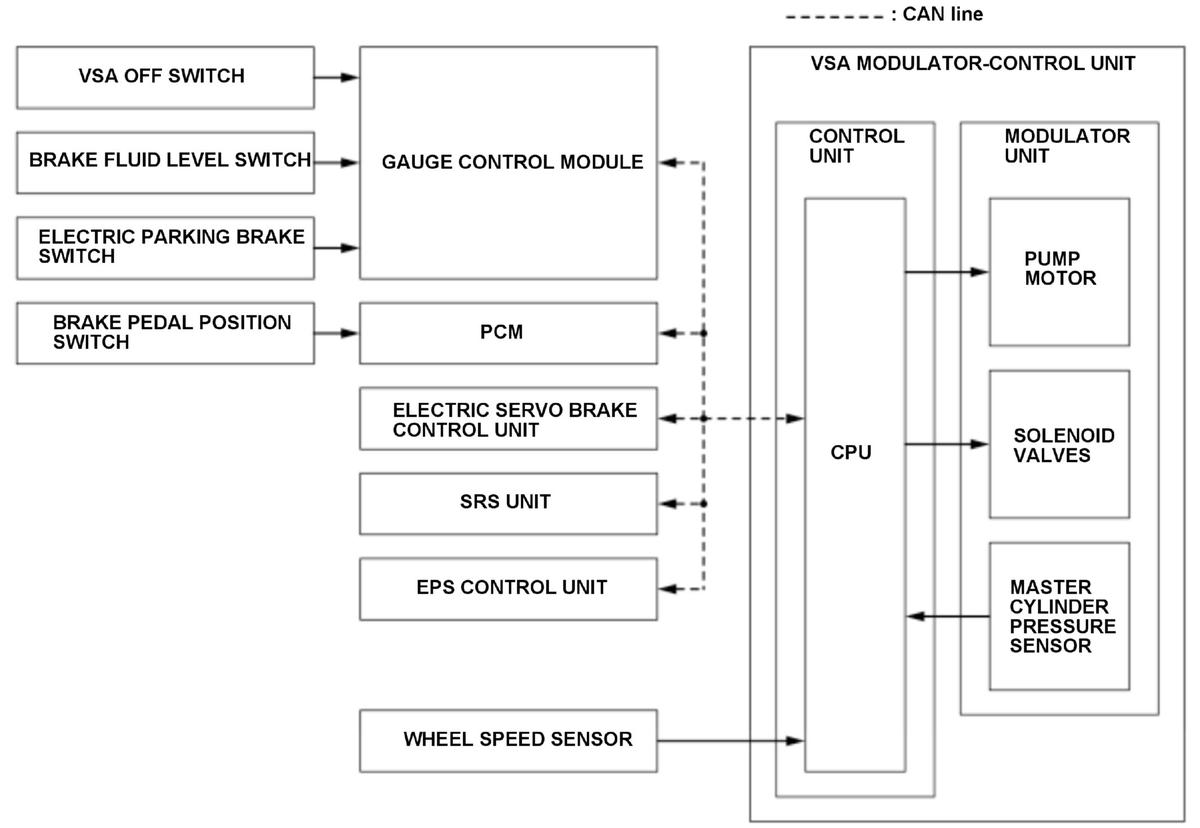

The system diagram of the VSA system is shown below.

For locations of each component on vehicle, refer to Component Location Index:

GHH388633Courtesy of HONDA, U.S.A., INC.
