Multipurpose Camera Aiming: Notes

Special Tool Required

SPECIAL TOOL DESCRIPTION

Image Description/Tool Number
G12436989Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Stand 07AAJ-TK8A100(1)
G12436990Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Attachment Bracket 07AAK-5K0A110
G12436991Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Stand Set 07AAJ-STKA220(1)
G12436992Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Stand Pole 07AAK-5K0A120

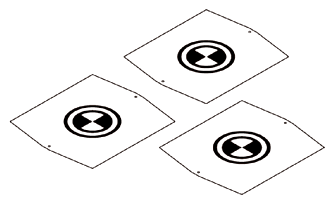

G12436993Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Target Set 070AK-TYPA030

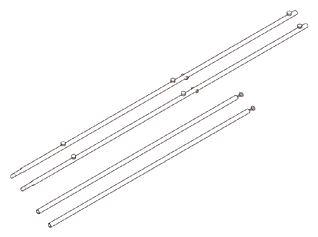

G12436994Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Target Holder Set 07AAB-TYPA020
(1) Use Stand 07AAJ-TK8A100 or Stand Set 07AAJ-STKA220 for aiming.
