DTC : P0523: Notes
DTC P0523: Rocker Arm Oil Pressure Sensor Circuit High Voltage
General Description

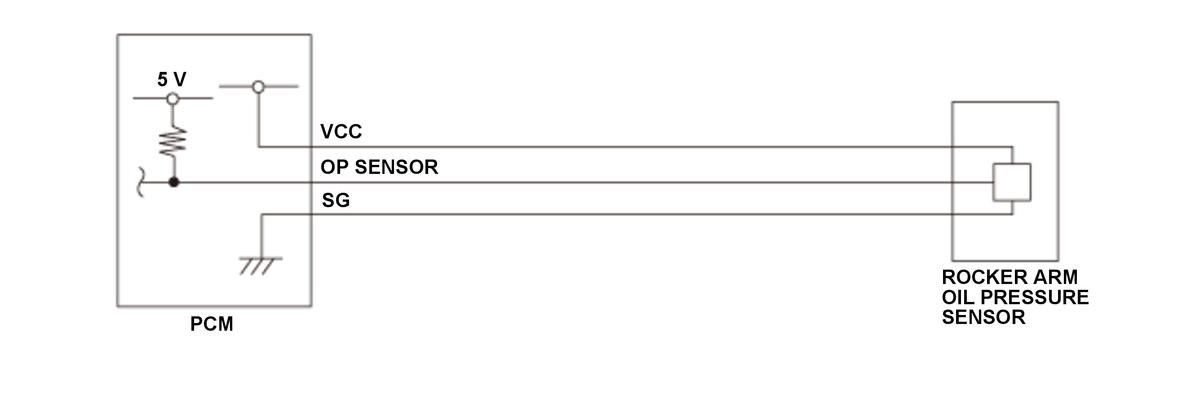

The rocker arm oil pressure sensor detects engine oil pressure in the valve pause system. When the voltage from the rocker arm oil pressure sensor is a set value for a specified time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 2.0 seconds or more |
| DTC Type | Two drive cycles, MIL on |
