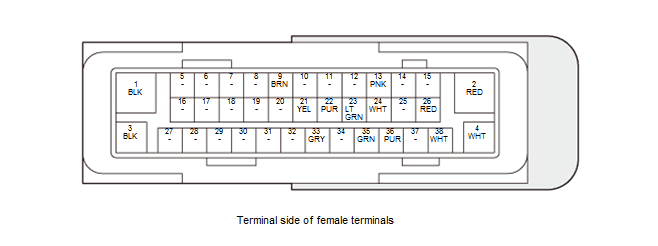

VSA Modulator-Control Unit Connector for Inputs and Outputs
VSA Modulator-Control Unit Inputs and Outputs for 38P Connector
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
GND |
Ground for the pump motor |
| 2 |
+B ABS/VSA MTR |
Power source for the motor relay |
| 3 |
GND |
Ground for the VSA modulator-control unit |
| 4 |
+B ABS/VSA FSR |
Power source for the fail-safe relay |
| 5 |
Not used |
- - - |
| 6 |
Not used |
| 7 |
Not used |
| 8 |
Not used |
| 9 |
FR L ABS SNSR- |
Detects left-front wheel speed sensor signal |
| 10 |
Not used |
- - - |
| 11 |
Not used |
| 12 |
Not used |
| 13 |
FR R ABS SNSR- |
Detects right-front wheel speed sensor signal |
| 14 |
Not used |
- - - |
| 15 |
Not used |
| 16 |
Not used |
| 17 |
Not used |
| 18 |
Not used |
| 19 |
Not used |
| 20 |
Not used |
| 21 |
FR L ABS SNSR+ |
Detects left-front wheel speed sensor signal |
| 22 |
RR L ABS SNSR- |
Detects left-rear wheel speed sensor signal |
| 23 |
RR R ABS SNSR+ |
Detects right-rear wheel speed sensor signal |
| 24 |
FR R ABS SNSR+ |
Detects right-front wheel speed sensor signal |
| 25 |
Not used |
- - - |
| 26 |
F-CAN_L |
F-CAN communication circuit |
| Terminal number |
Terminal sign |
Description |
| 27 |
Not used |
- - - |
| 28 |
Not used |
| 29 |
Not used |
| 30 |
Not used |
| 31 |
Not used |
| 32 |
Not used |
| 33 |
RR L ABS SNSR+ |
Detects left-rear wheel speed sensor signal |
| 34 |
Not used |
- - - |
| 35 |
RR R ABS SNSR- |
Detects right-rear wheel speed sensor signal |
| 36 |
IG1 VSA/ABS |
Power source for activating the system |
| 37 |
Not used |
- - - |
| 38 |
F-CAN_H |
F-CAN communication circuit |
