Engine Oil Level Check: Check

  1. Engine Oil Level - Check

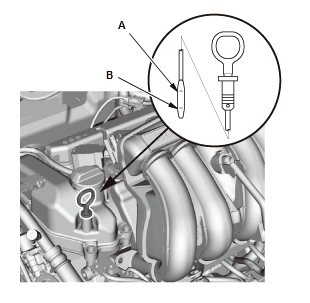

    GHH82413Courtesy of HONDA, U.S.A., INC.
    1. Park the vehicle on level ground, and start the engine. Hold the engine speed at 3, 000 rpm with no load (M/T in neutral or CVT in P or N) until the radiator fan comes on, then turn off the engine, and wait more than 3 minutes

    2. Remove the dipstick, and wipe off the dipstick, then reinstall the dipstick

    3. Remove the dipstick

    4. Check the engine oil level. It should be between the upper mark (A) and the lower mark (B)

    5. If the engine oil level is near or below the lower mark check for oil leaks, and add the engine oil to bring it to the upper mark.
