DTC P0600: Powertrain Control Module (PCM) Serial Communication Failure
General Description

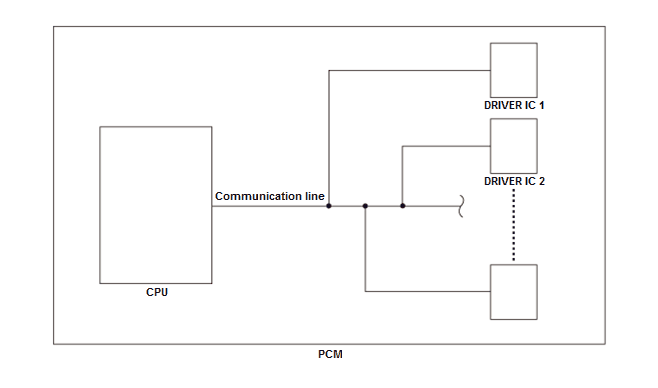

The driver IC which has diagnostic function and the CPU are built into the powertrain control module (PCM). If the CPU cannot receive diagnostic information from the driver IC for a specified duration due to occurrence of communication abnormality between the driver IC and the CPU, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 5 seconds or more |
| DTC Type | One drive cycle, MIL on |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [BATTERY] | 10.0 V | - |
| State of the engine | Running | |
[ ]: HDS Parameter
Malfunction Threshold
One of the conditions is met for at least 5 seconds:
- The CPU does not receive signal from the driver IC via the communication lines.
- The signal sent from the driver IC is abnormal.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
