System Description
>>
Navigation
>>
Navigation Function
>>
Function Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

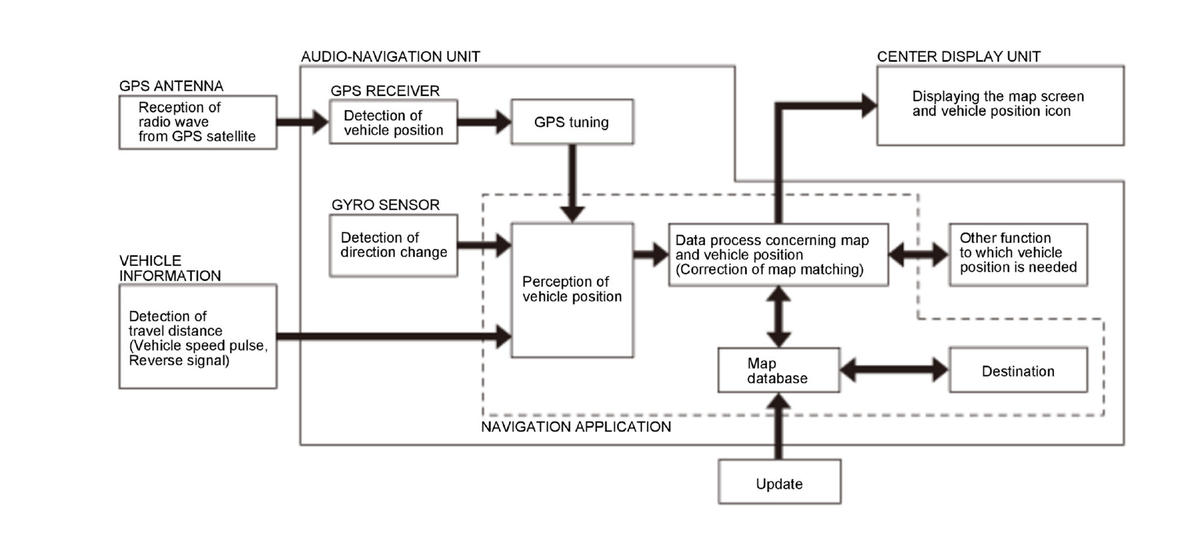

Function Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
