Engine Block Assembly Component Location Index (1.5 L Engine)

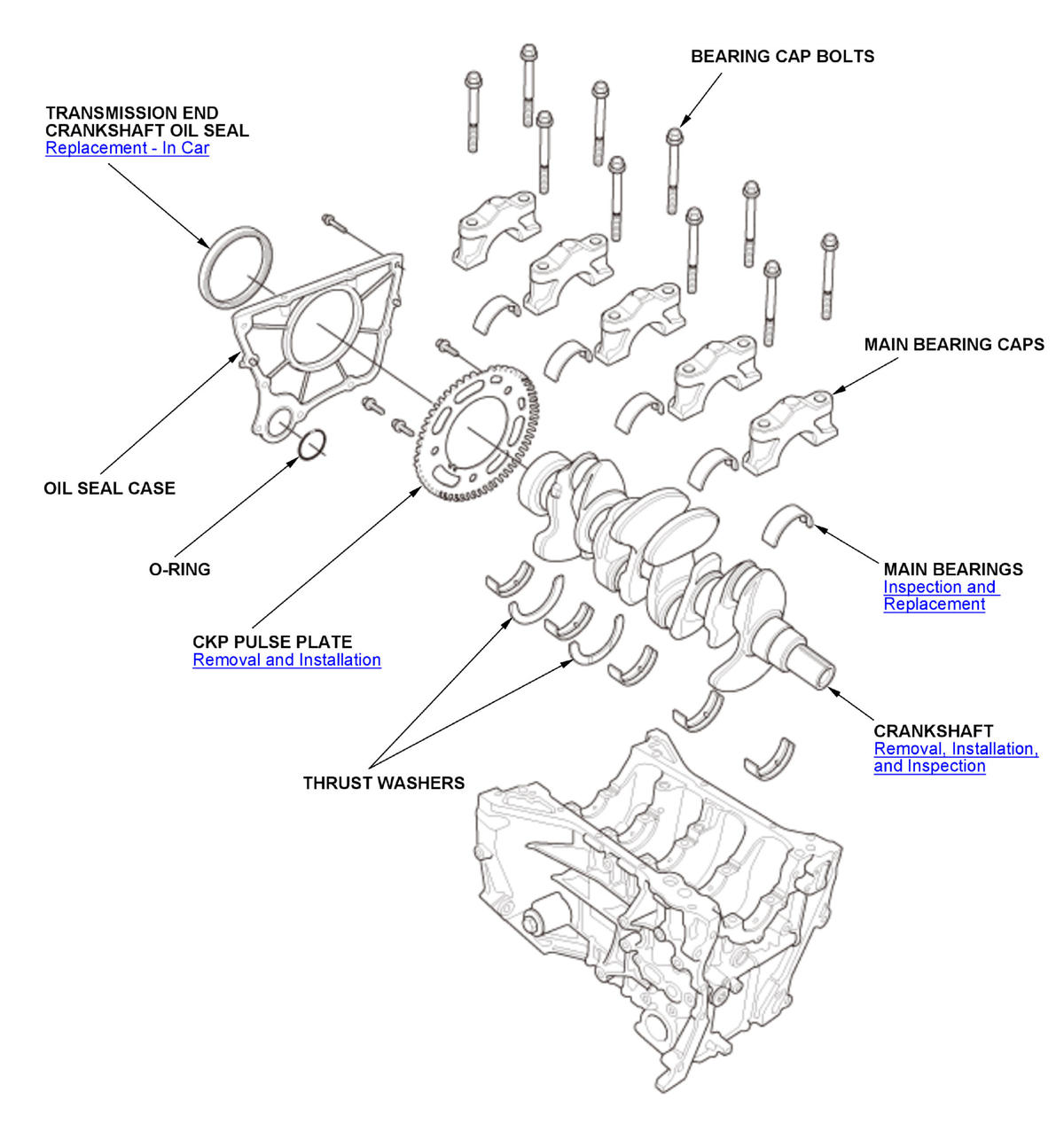

Fig 1: Engine Block Assembly Component Locations (1.5 L Engine) (1 Of 3)

Courtesy of HONDA, U.S.A., INC.

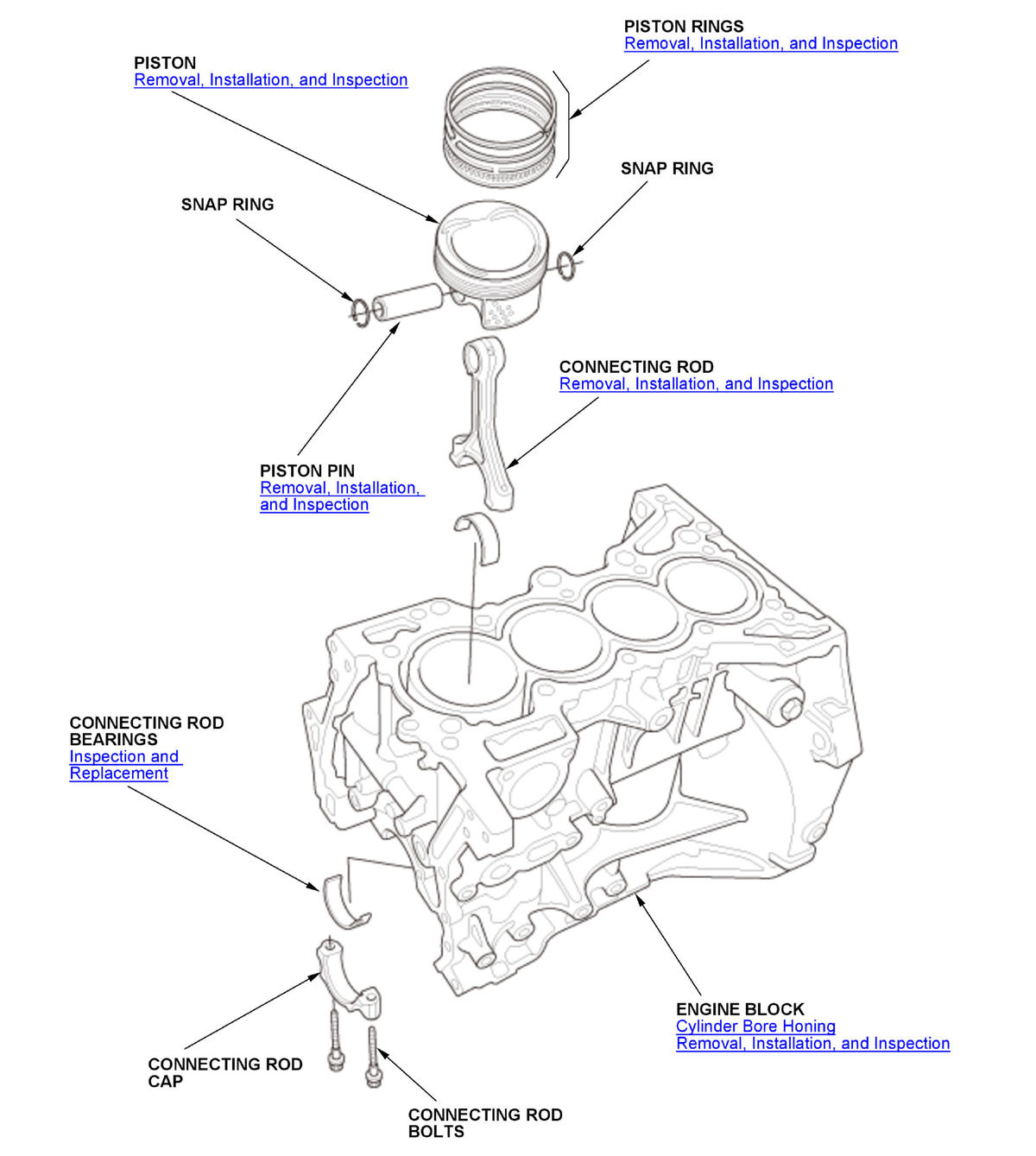

Fig 2: Engine Block Assembly Component Locations (1.5 L Engine) (2 Of 3)

Courtesy of HONDA, U.S.A., INC.

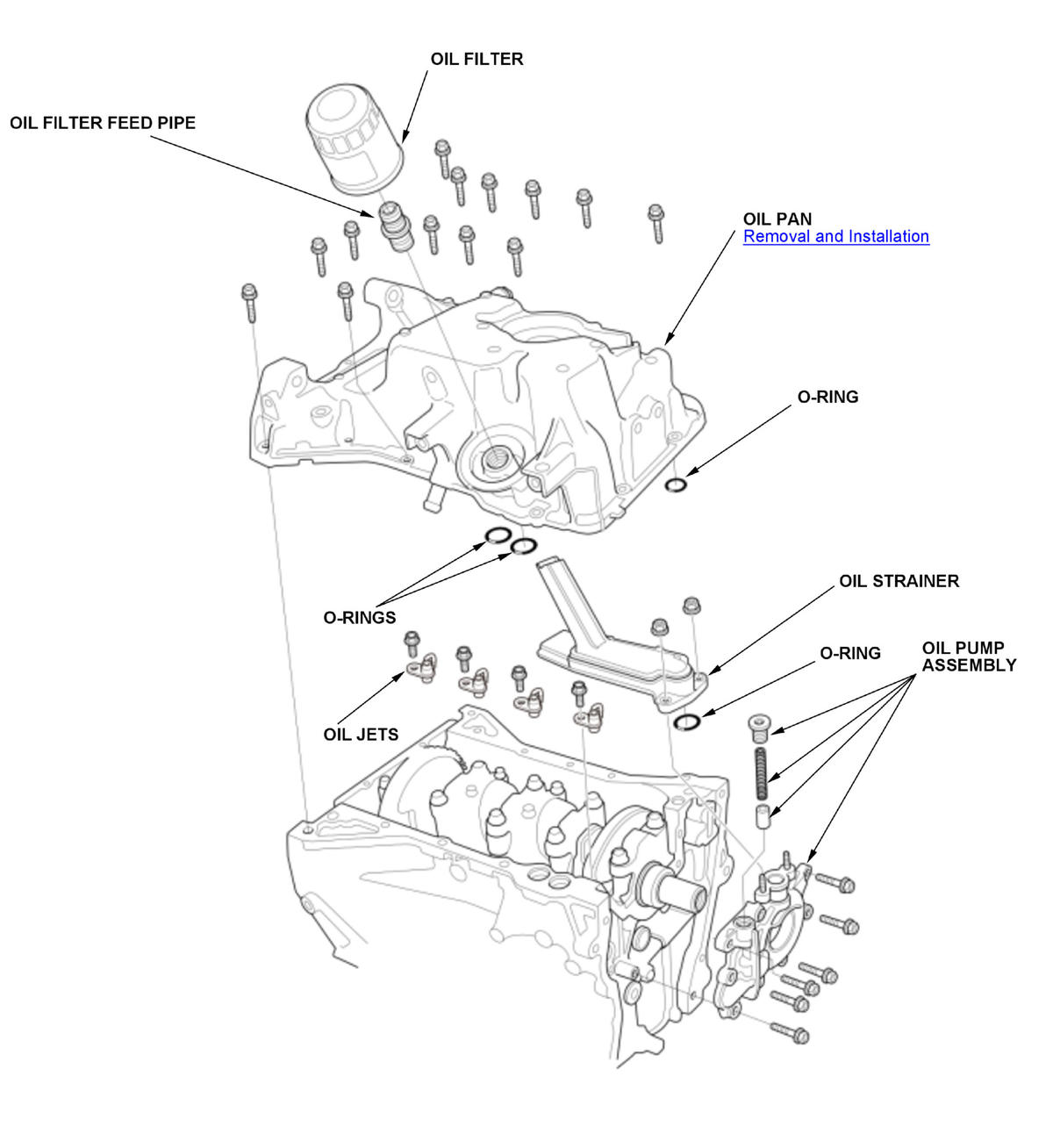

Fig 3: Engine Block Assembly Component Locations (1.5 L Engine) (3 Of 3)

Courtesy of HONDA, U.S.A., INC.
