Engine Block Assembly Component Location Index (2.0 L Engine)

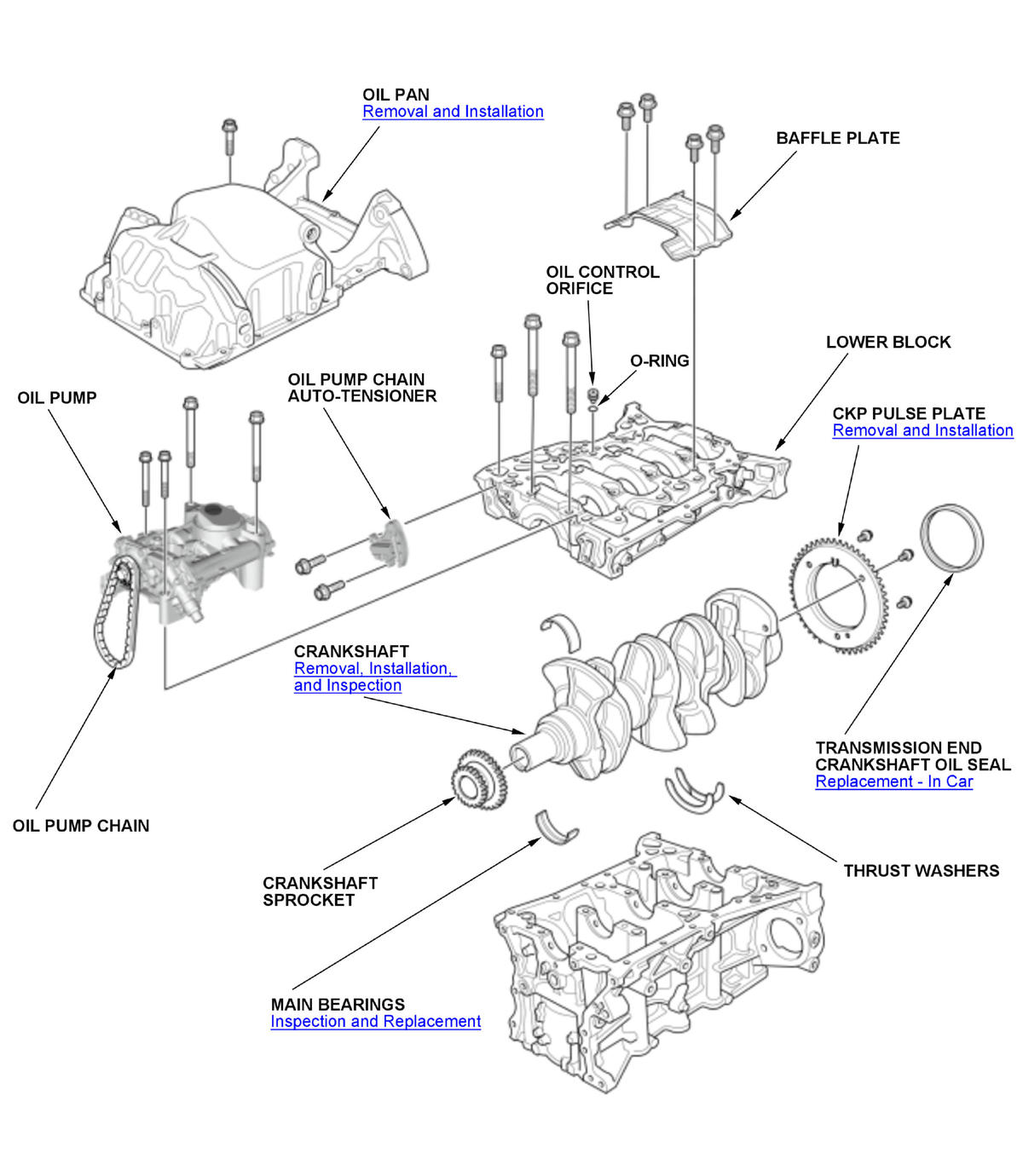

Fig 1: Engine Block Assembly Component Locations (2.0 L Engine) (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

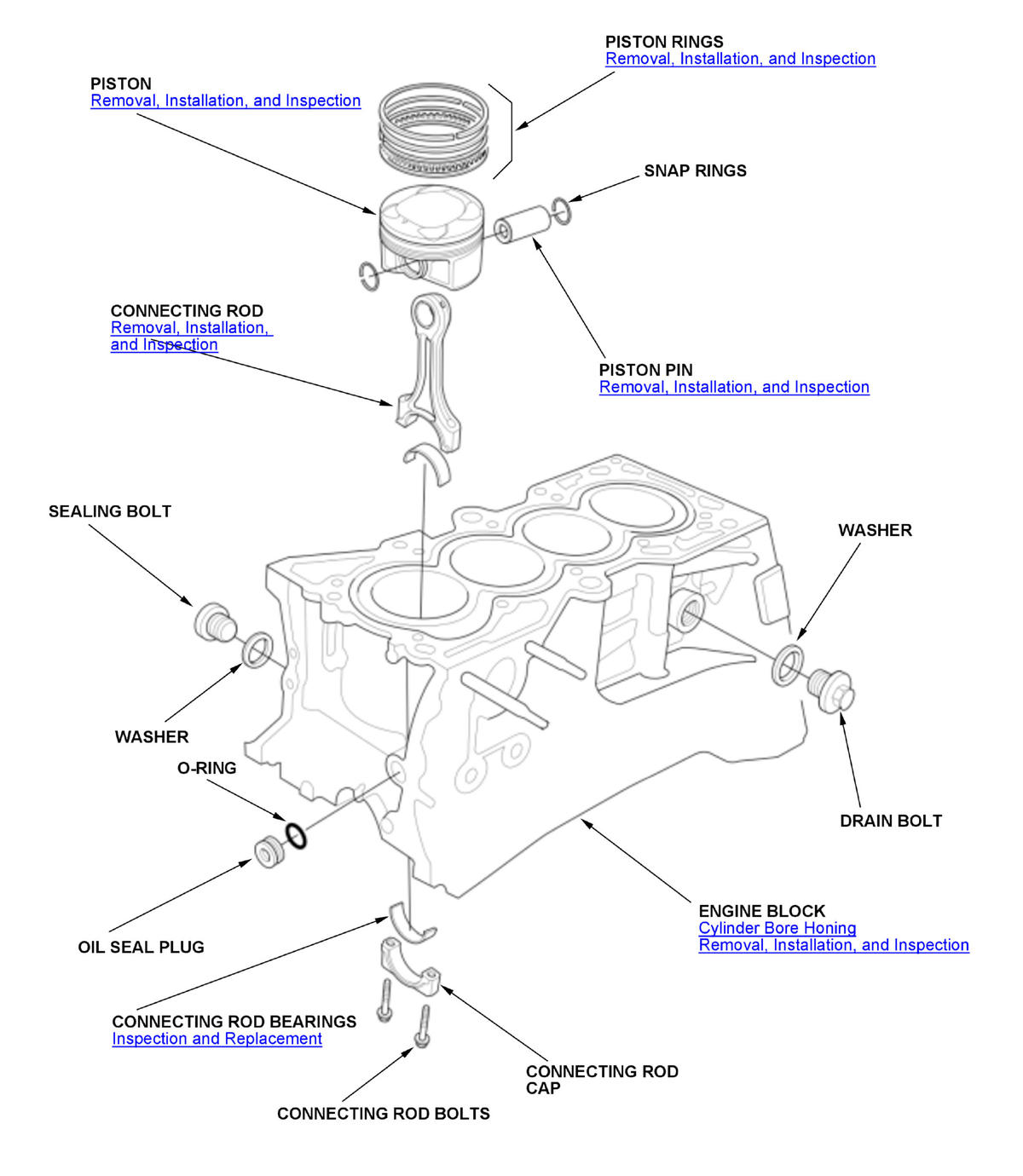

Fig 2: Engine Block Assembly Component Locations (2.0 L Engine) (2 Of 2)

Courtesy of HONDA, U.S.A., INC.
