VTEC/VTC System Description

VTEC

Overview

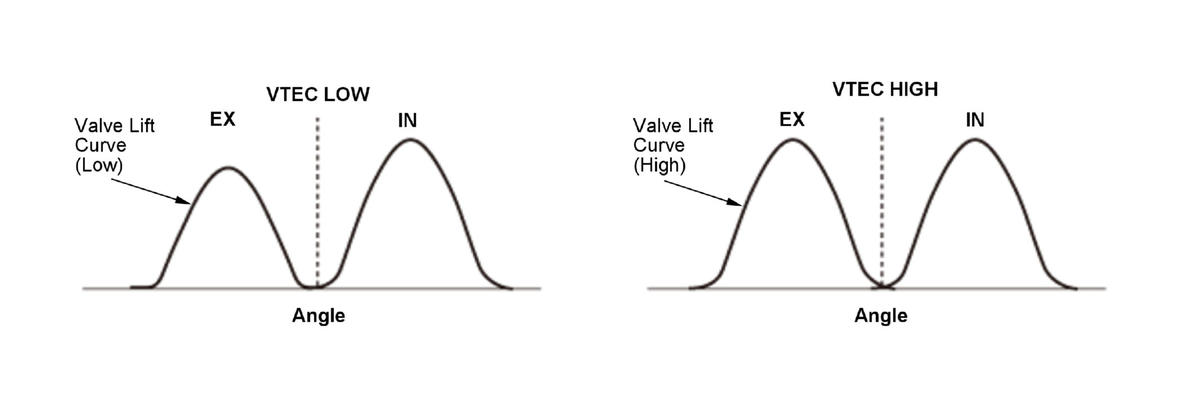

This VTEC system changes the exhaust valve lift timing and lift height depending on the engine speed and load in order to optimize the fuel efficiency and the engine output. The rocker arm oil control solenoid switches the VTEC system on and off; the solenoid is controlled by the PCM.

Courtesy of HONDA, U.S.A., INC.

Construction

VTEC is composed of the VTEC camshaft, VTEC rocker arm, and rocker arm oil control valve.

Control

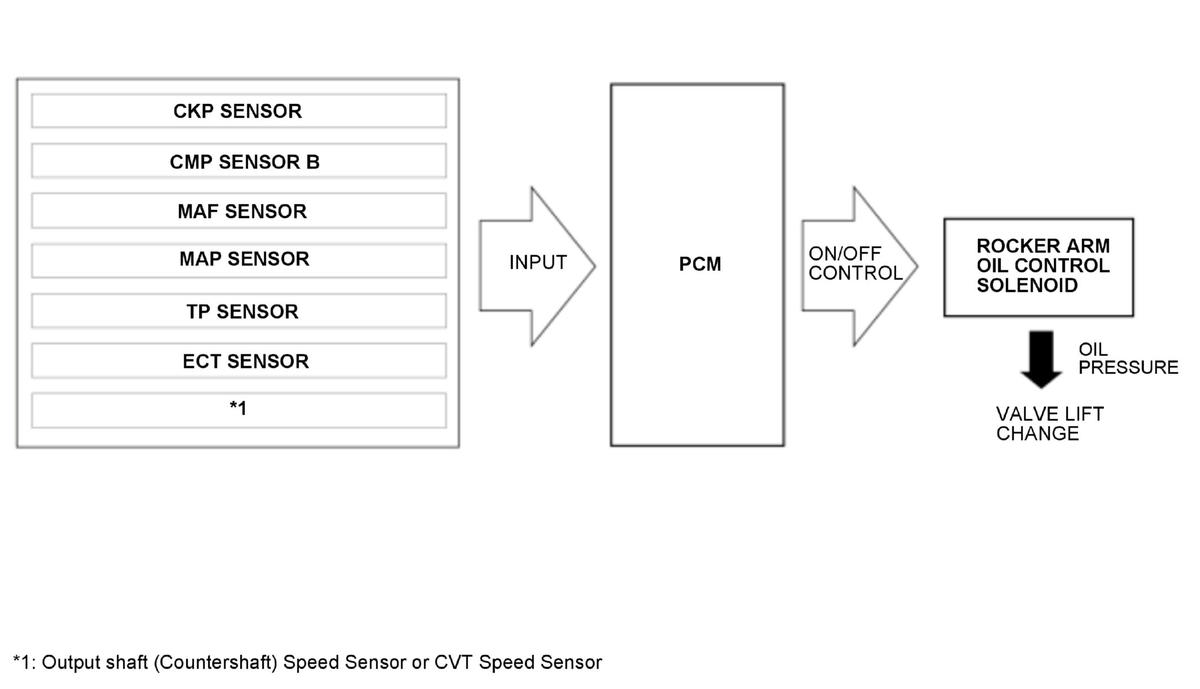

Based on the vehicle speed signal, engine speed signal, engine load signal, throttle position signal, and engine coolant signal sent from various sensors, the PCM determines the lift amount and controls the ON/OFF of the rocker arm oil control solenoid.The PCM generates and determines the control amount based on signals from various sensors to subject the rocker arm oil control solenoid to a feedback control.

For locations of each component on the vehicle, refer to the Component Location Index

Courtesy of HONDA, U.S.A., INC.

Operation

At low engine speed

The rocker arm oil control solenoid is turned off by the PCM. Oil pressure from the rocker arm oil control solenoid enters the exhaust primary (secondary)* rocker arm via the oil port from the exhaust rocker shaft. This oil pressure and the return spring tension push the stopper piston and the VTEC switching pistons. Each exhaust rocker arm is separated by this, and the exhaust primary and the exhaust secondary rocker arms are lifted by the low lift cam lobe.*: 2.0 L Engine

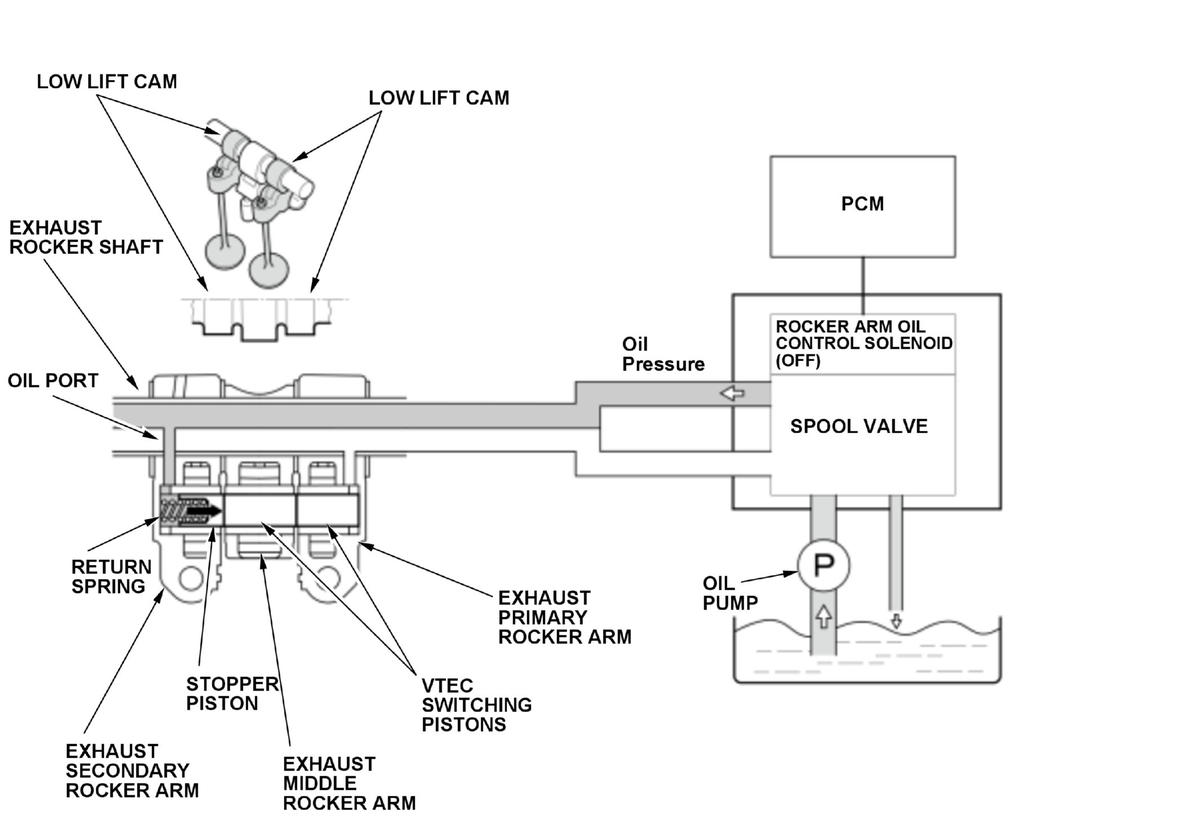

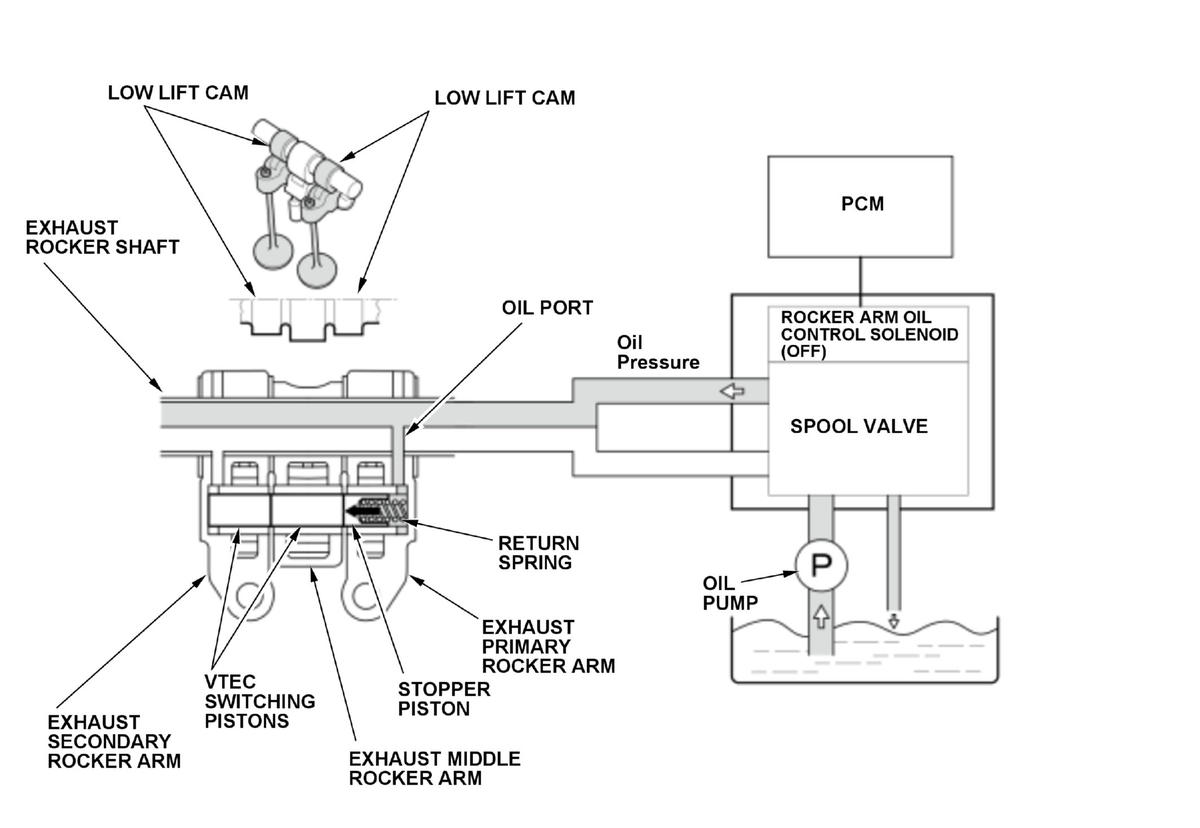

Rocker Arm Oil Control Solenoid OFF (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

Rocker Arm Oil Control Solenoid OFF (2.0 L Engine)

Courtesy of HONDA, U.S.A., INC.

At high engine speed/high load operation

The rocker arm oil control solenoid is turned on by the PCM. Oil pressure from the rocker arm oil control solenoid enters the exhaust secondary (primary)* rocker arm via the oil port from the exhaust rocker shaft, and it moves the VTEC switching piston in the exhaust secondary (primary)* rocker arm. This causes the VTEC switching piston to slide into the exhaust middle rocker arm and the exhaust primary (secondary)* rocker arm, locking the secondary, middle, and the primary rocker arms. All exhaust rocker arms are lifted by the high lift cam lobe.

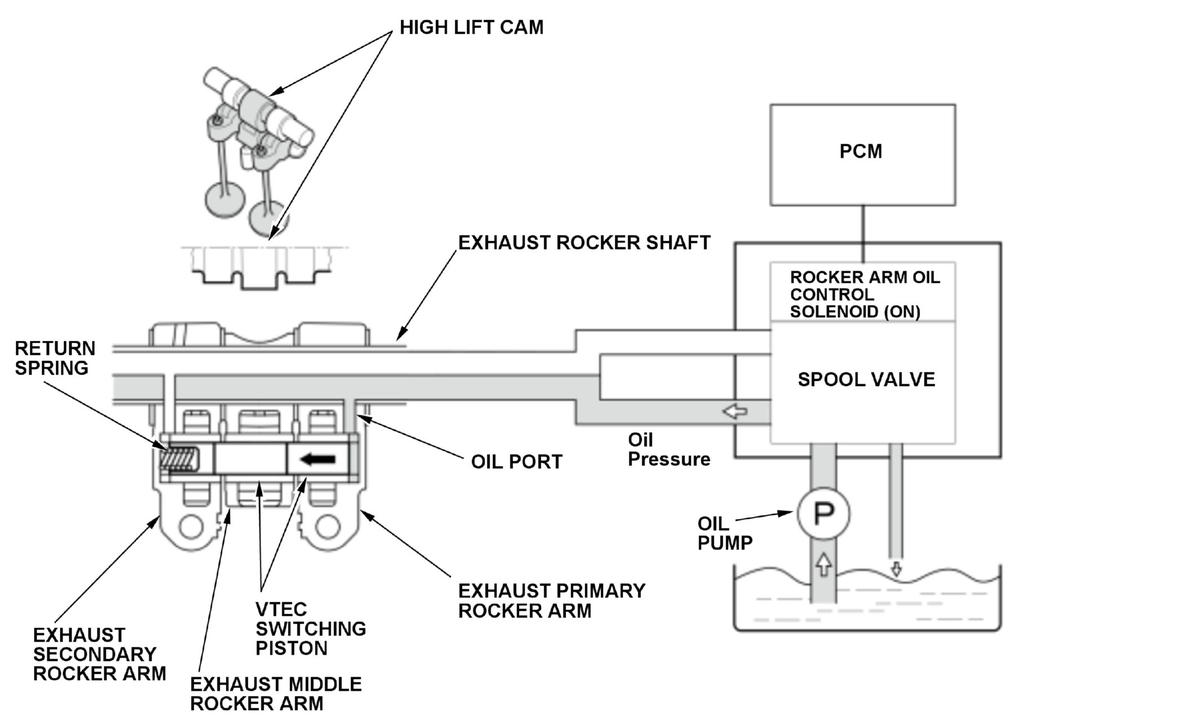

Rocker Arm Oil Control Solenoid ON (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

Rocker Arm Oil Control Solenoid ON (2.0 L Engine)

Courtesy of HONDA, U.S.A., INC.

VTC

Overview

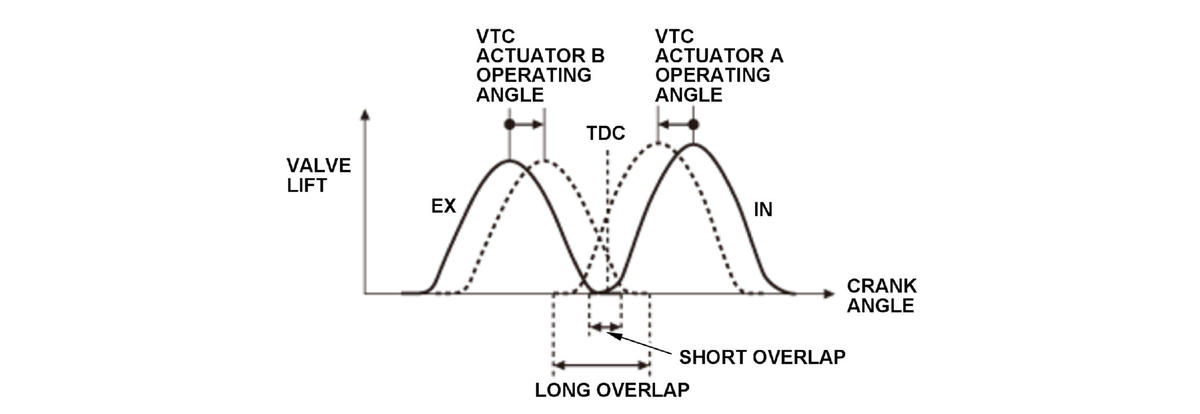

The VTC system makes continuous intake and exhaust valve timing changes depending on the engine speed, engine load, and vehicle speed.

Courtesy of HONDA, U.S.A., INC.

Control

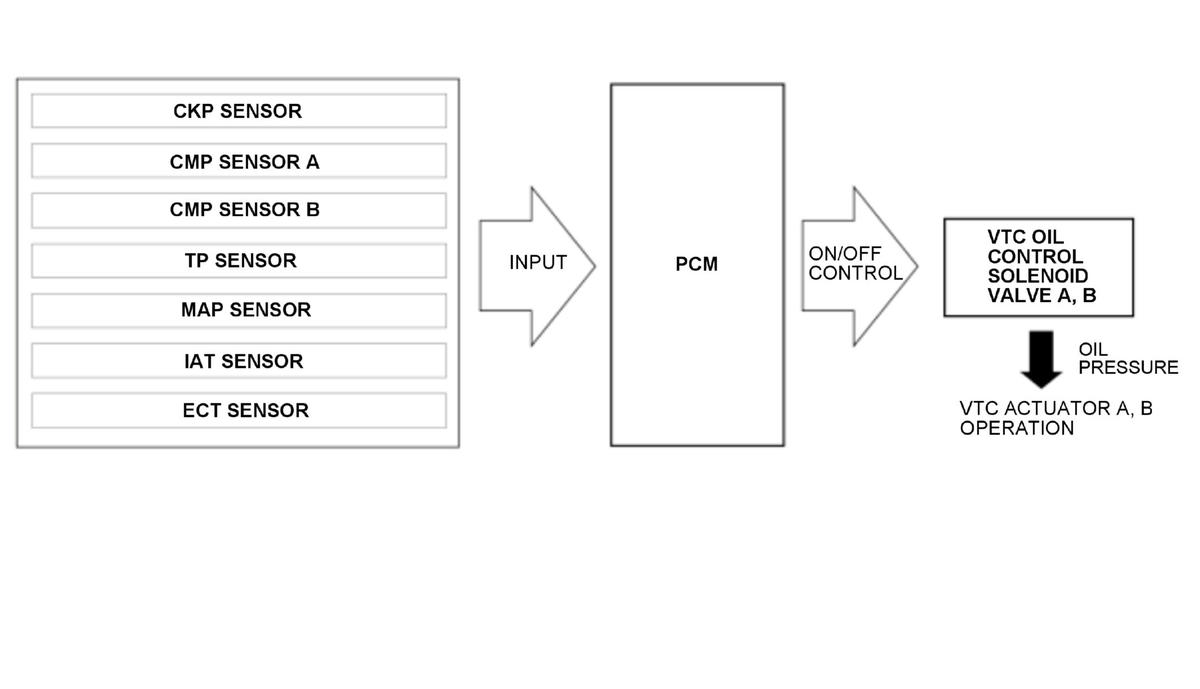

The VTC system diagram is as follows.The PCM advances or retards the valve timing based on the data from various sensors, and performs feedback-control to the VTC oil control solenoid valves.

Courtesy of HONDA, U.S.A., INC.

Operation

Advance Rotation Operation

When the advance chamber is charged with pressured oil from the VTC oil control solenoid valve, the camshaft rotates to the advanced side. when there is no oil pressure (engine is stopped), the VTC actuator B is locked in the most advanced position by the return spring and the lock pin.

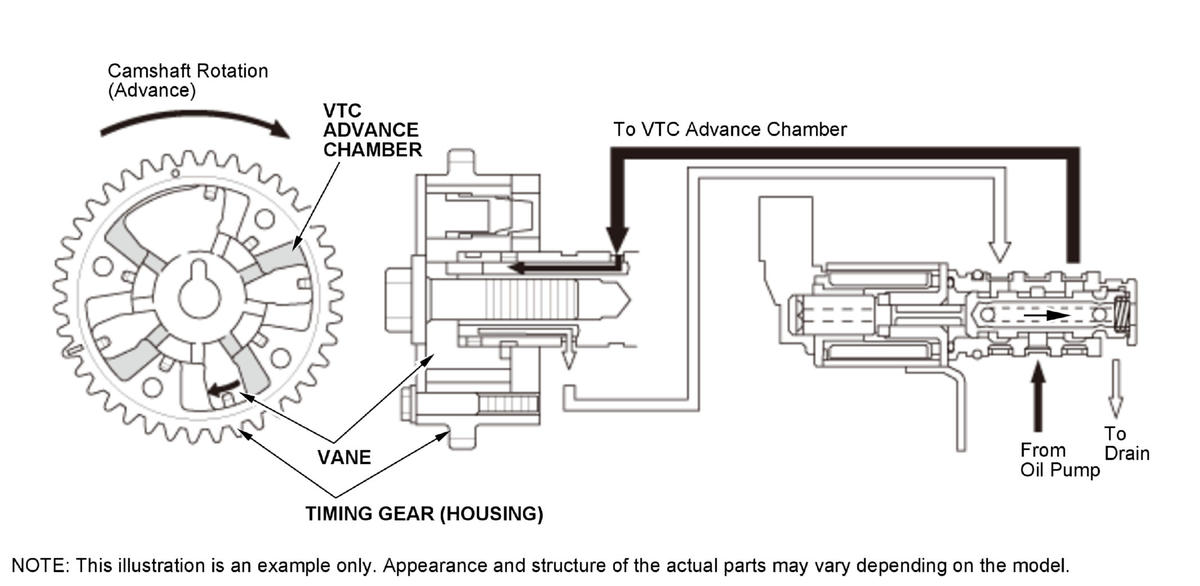

Intake Side (VTC Actuator A, VTC Oil Control Solenoid Valve A)

Courtesy of HONDA, U.S.A., INC.

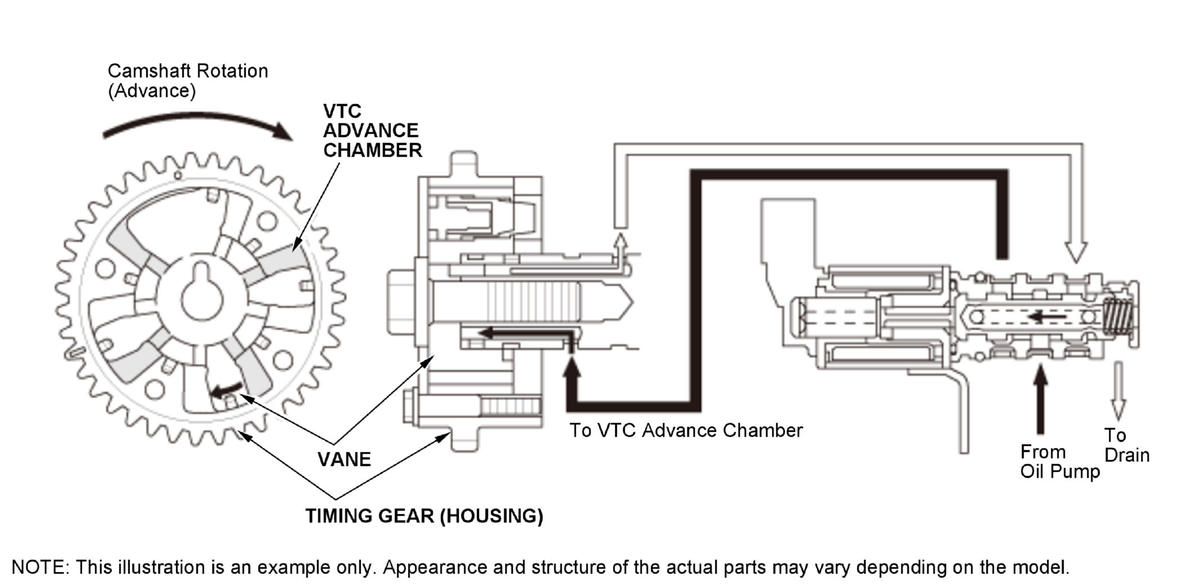

Exhaust Side (VTC Actuator B, VTC Oil Control Solenoid Valve B)

Courtesy of HONDA, U.S.A., INC.

Retard Rotation Operation

When the retard chamber is charged with pressured oil from the VTC oil control solenoid valve, the camshaft rotates to the retarded side. When there is no oil pressure (engine is stopped), the VTC actuator A is locked in the most retarded position by the lock pin.

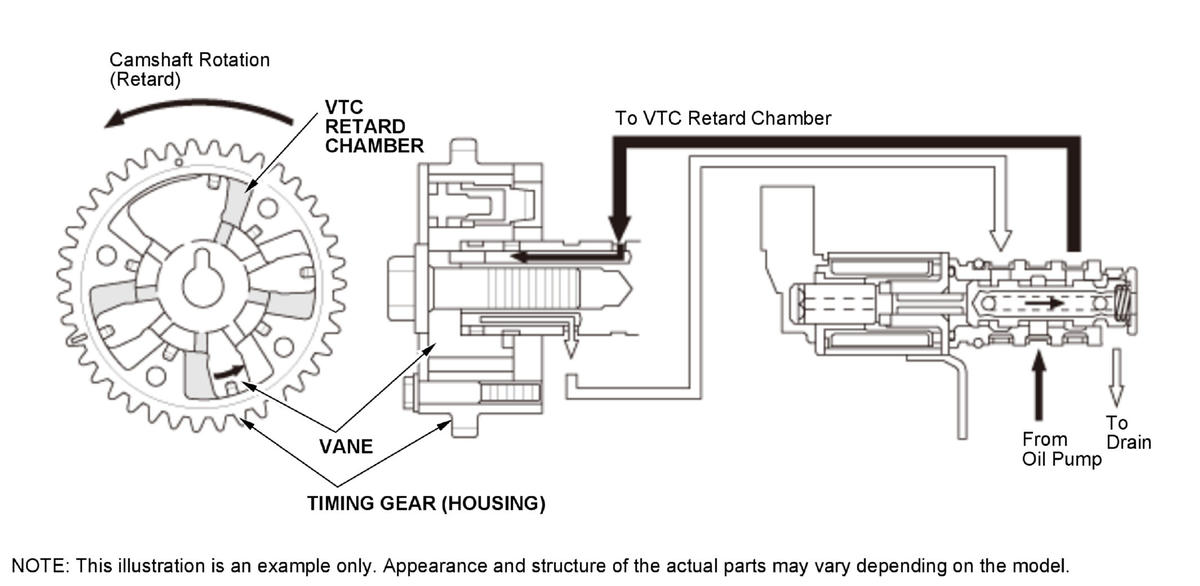

Intake Side (VTC Actuator A, VTC Oil Control Solenoid Valve A)

Courtesy of HONDA, U.S.A., INC.

Exhaust Side (VTC Actuator B, VTC Oil Control Solenoid Valve B)

Courtesy of HONDA, U.S.A., INC.
