Engine Block Assembly Component Location Index (1.5 L Engine)

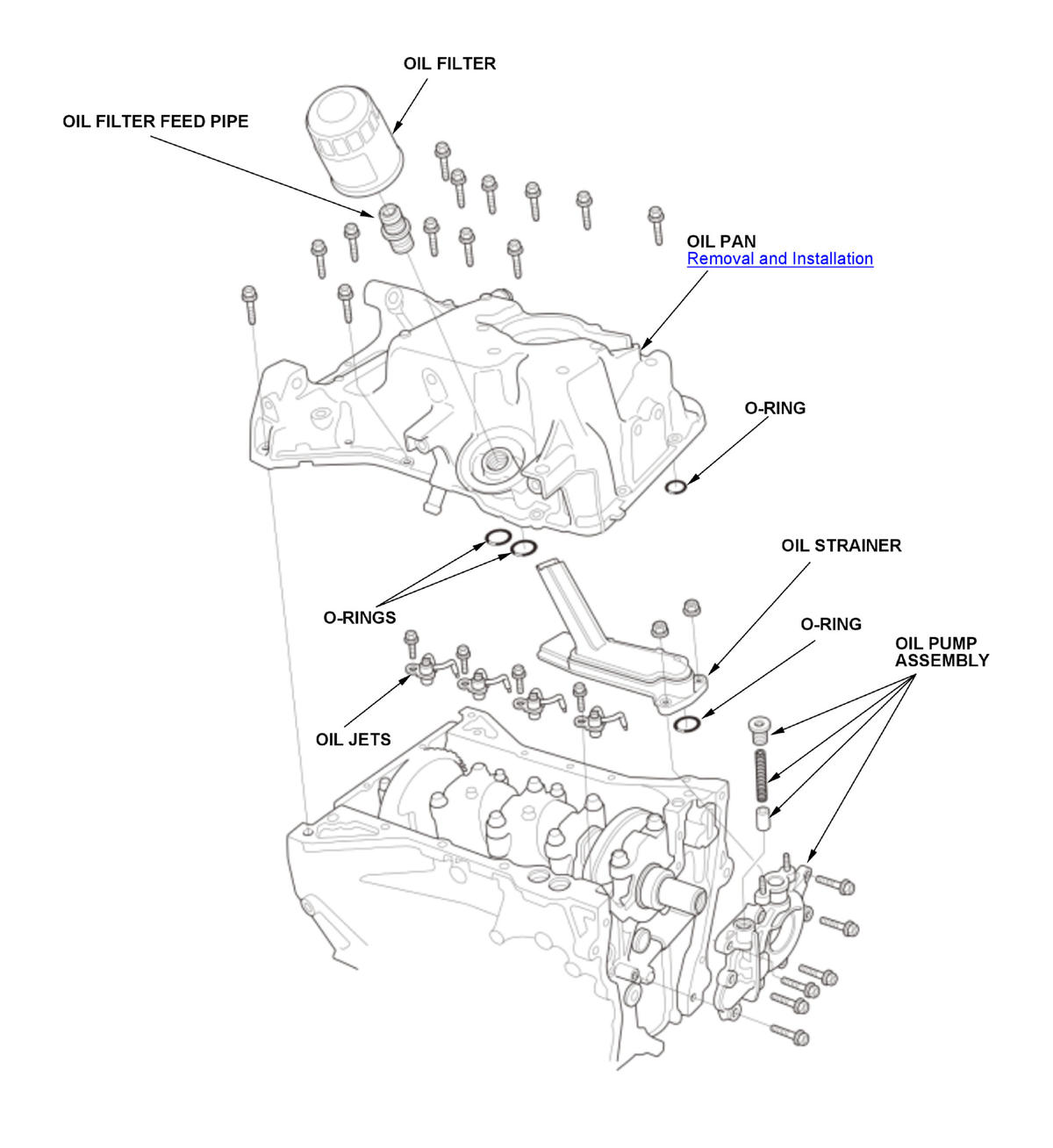

GHH427024Courtesy of HONDA, U.S.A., INC.

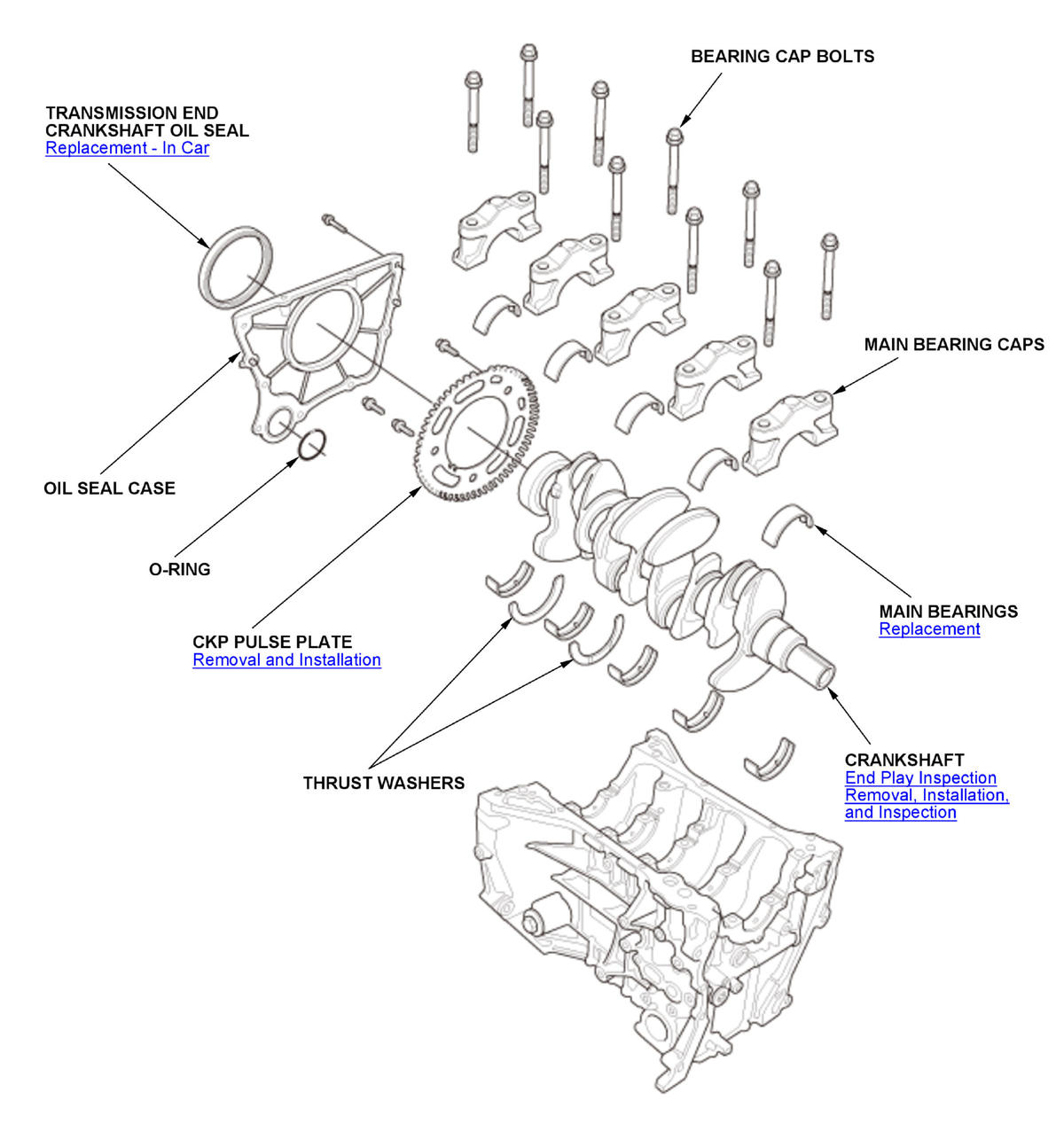

GHH427025Courtesy of HONDA, U.S.A., INC.

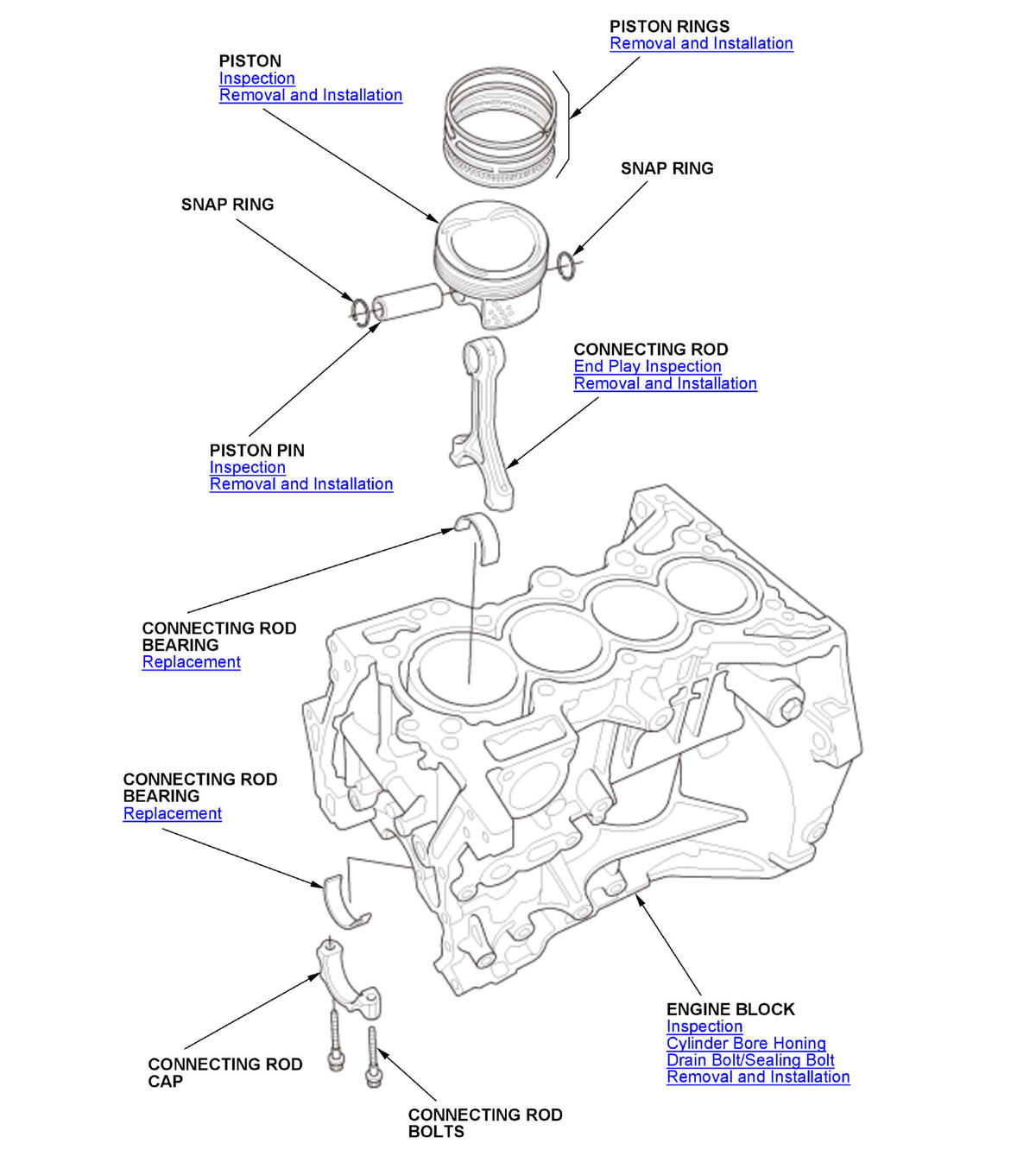

GHH427026Courtesy of HONDA, U.S.A., INC.
