Security System / Keyless Entry System - Testing & Troubleshooting - (Plug-In)
>>
Circuit Diagram
>>
Keyless Access System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

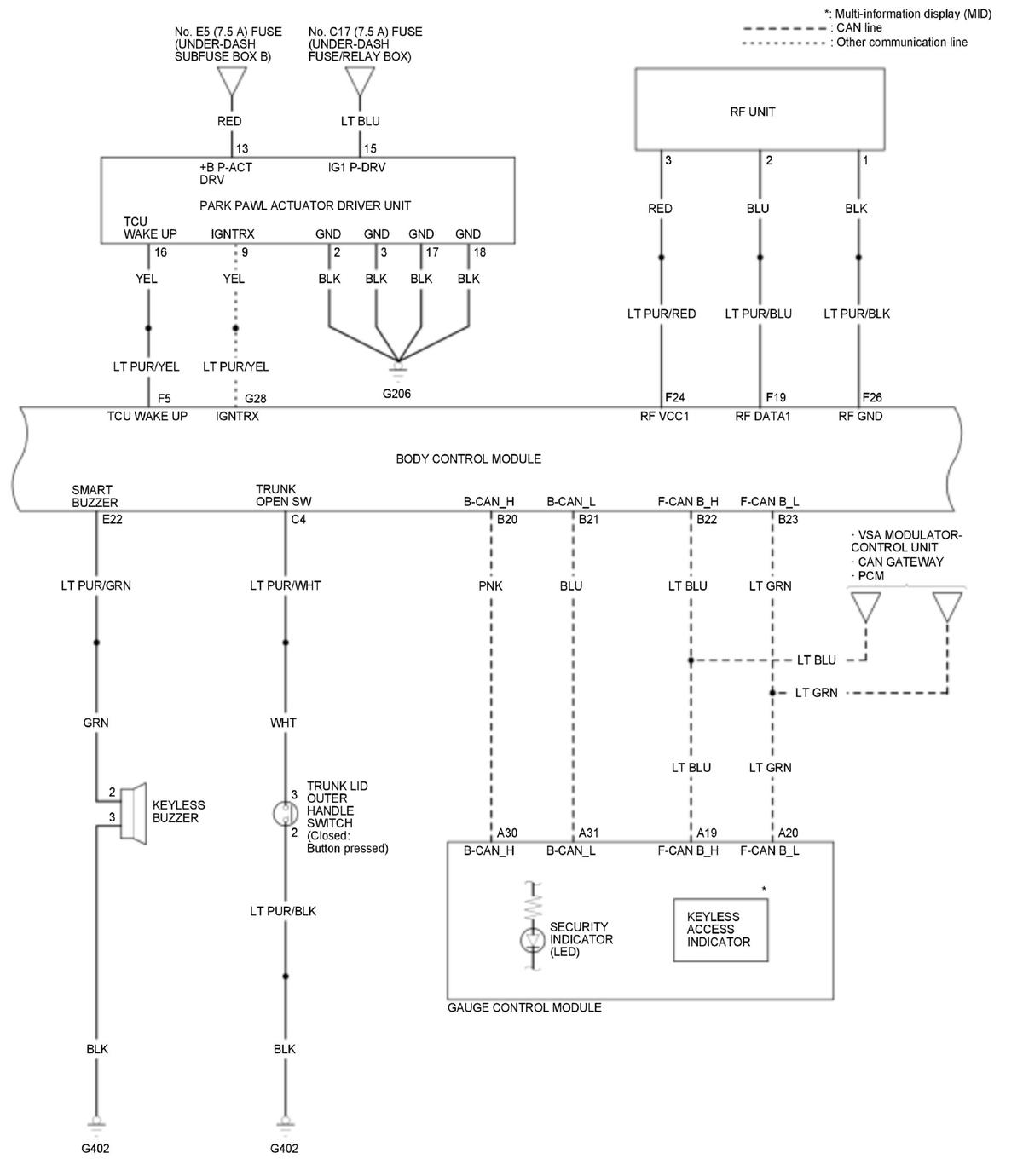

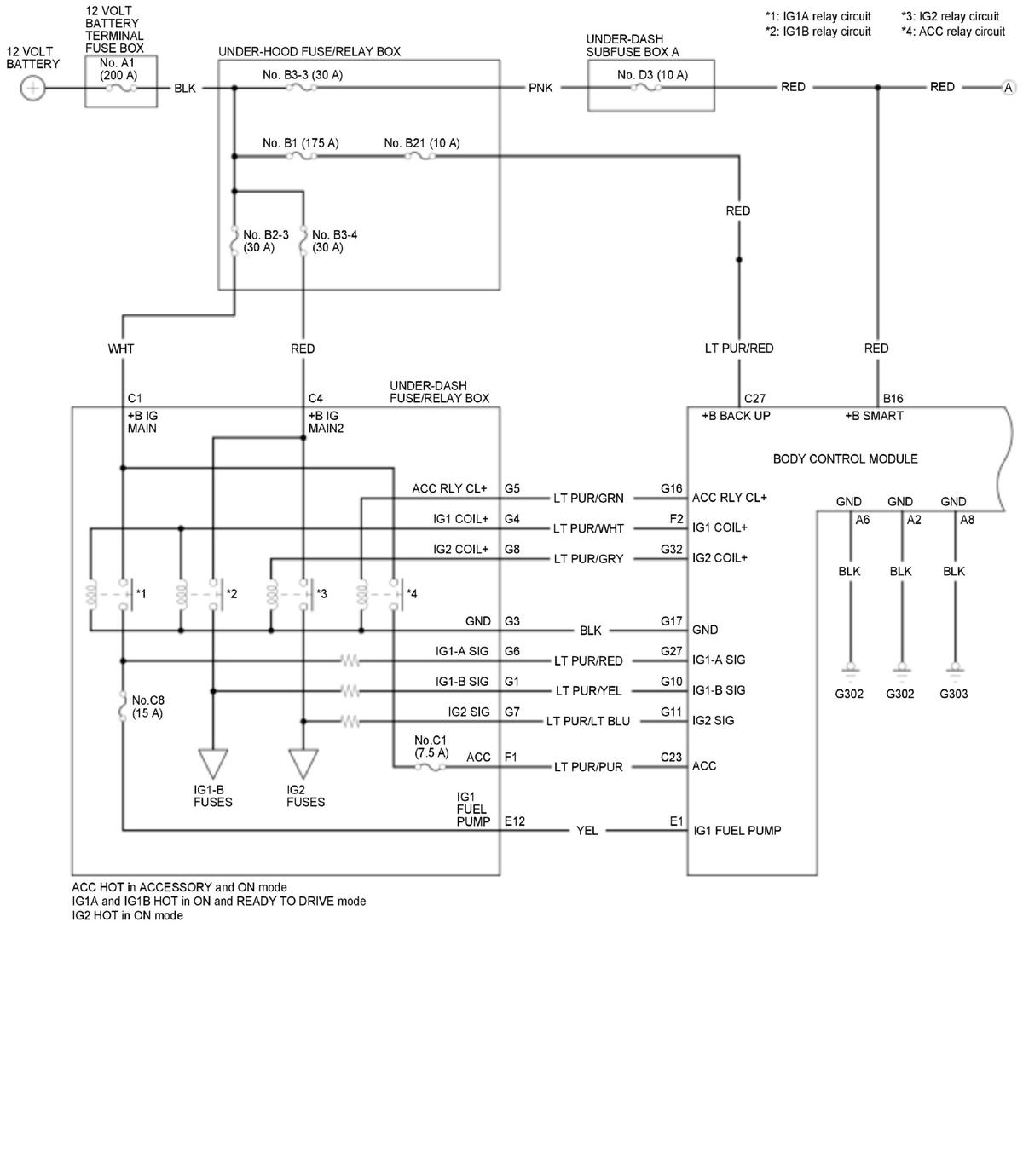

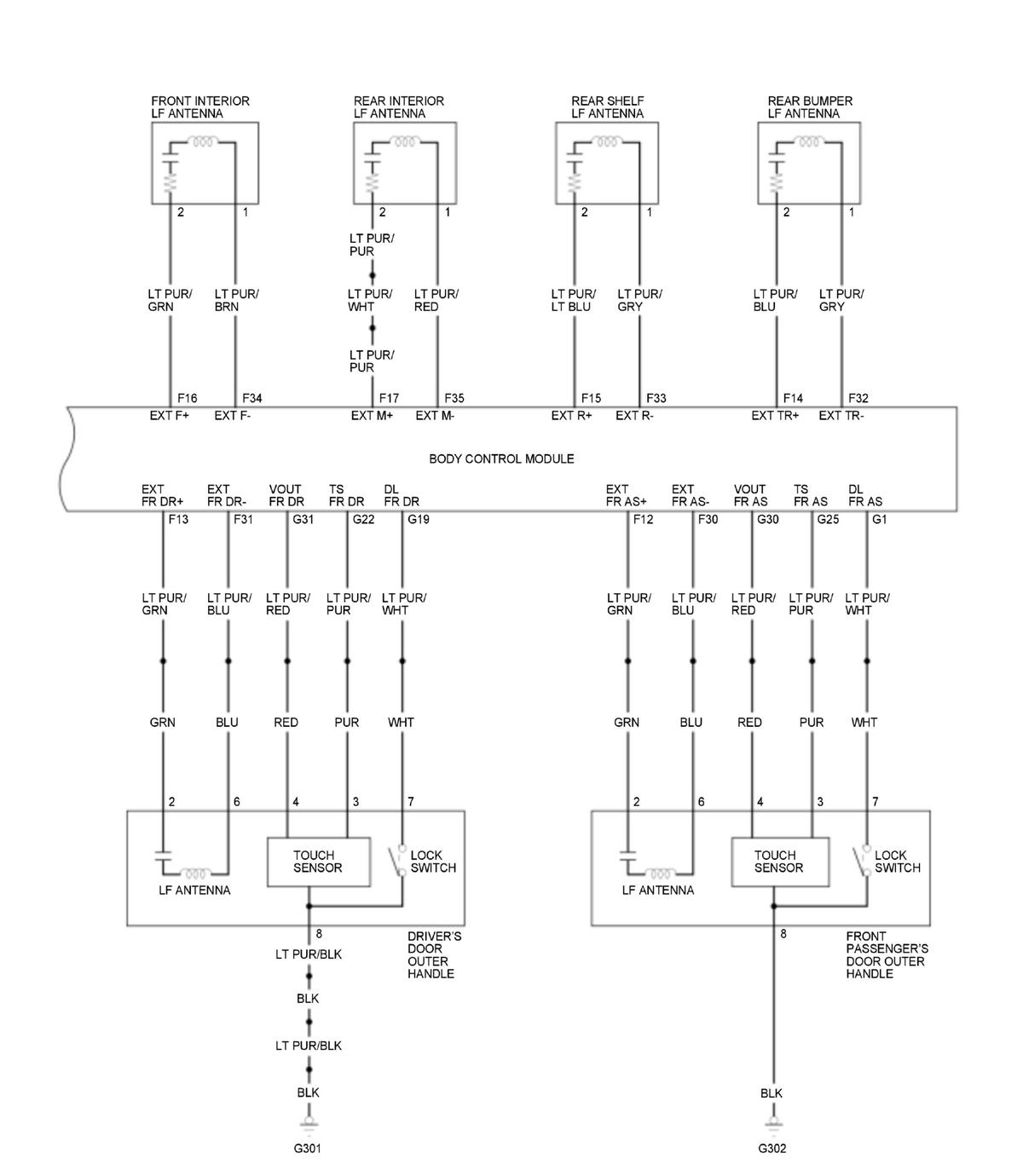

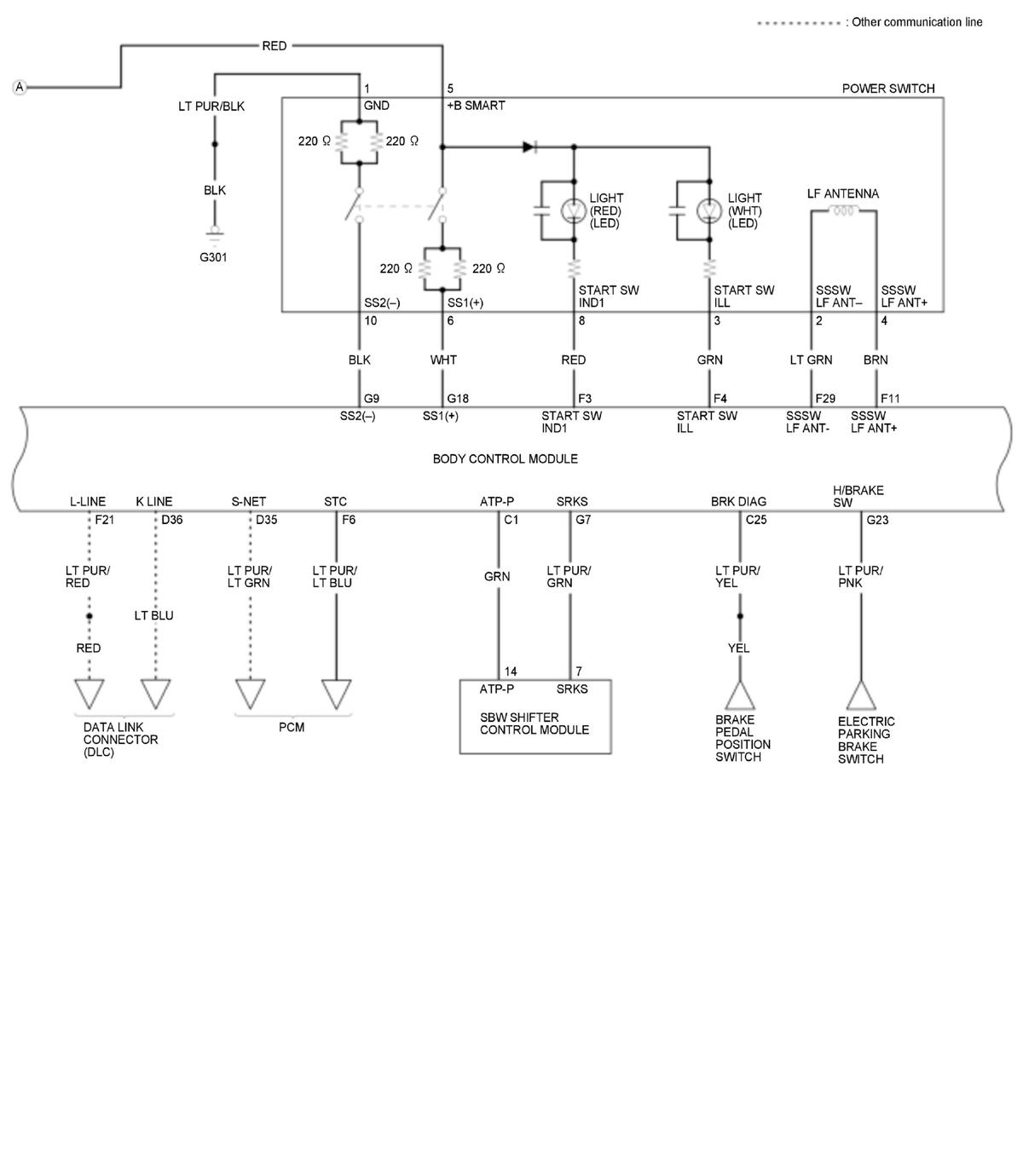

Keyless Access System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
