Windows / Glass - Testing & Troubleshooting (Plug-In)
>>
Circuit Diagram
>>
Power Windows
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

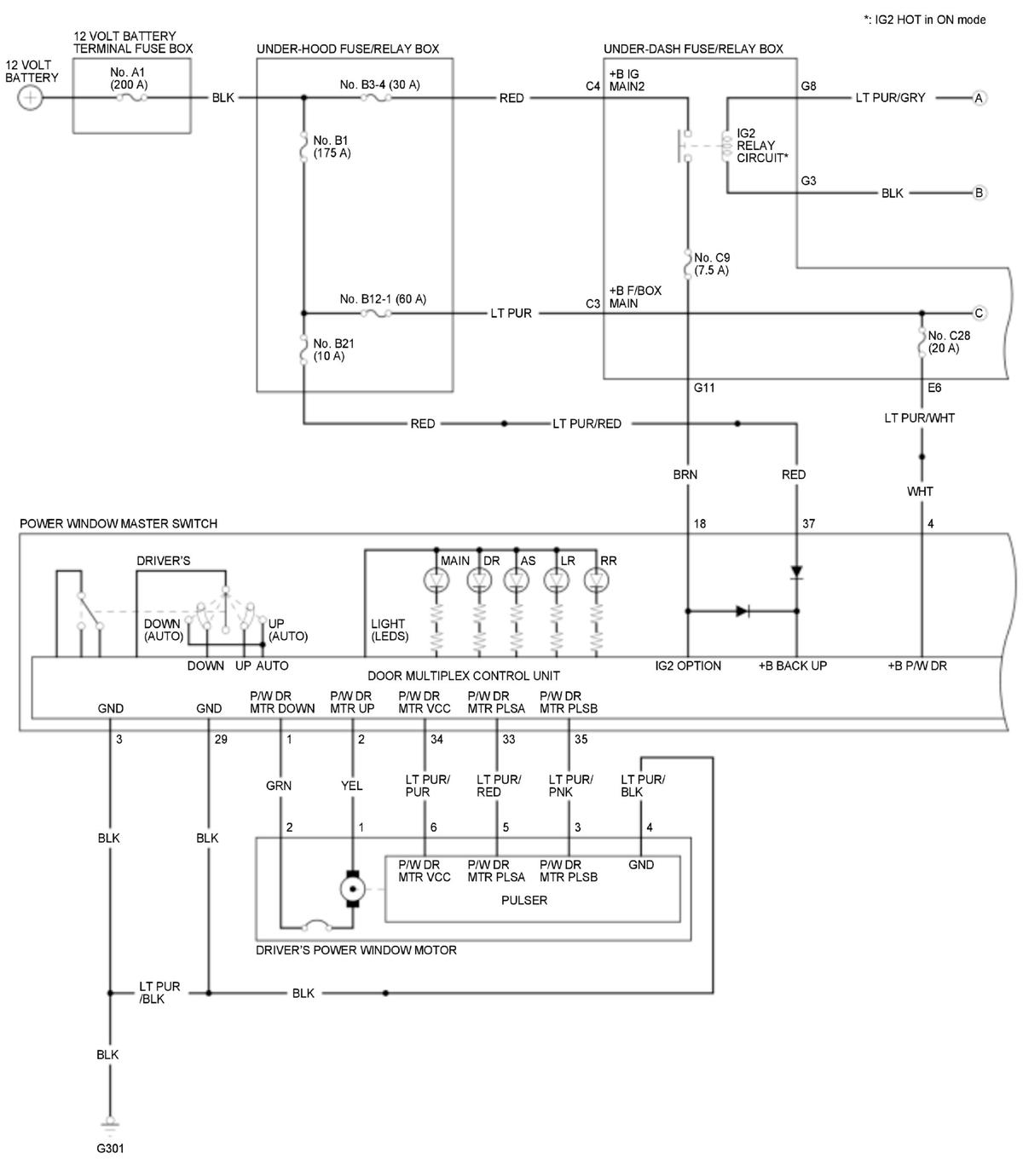

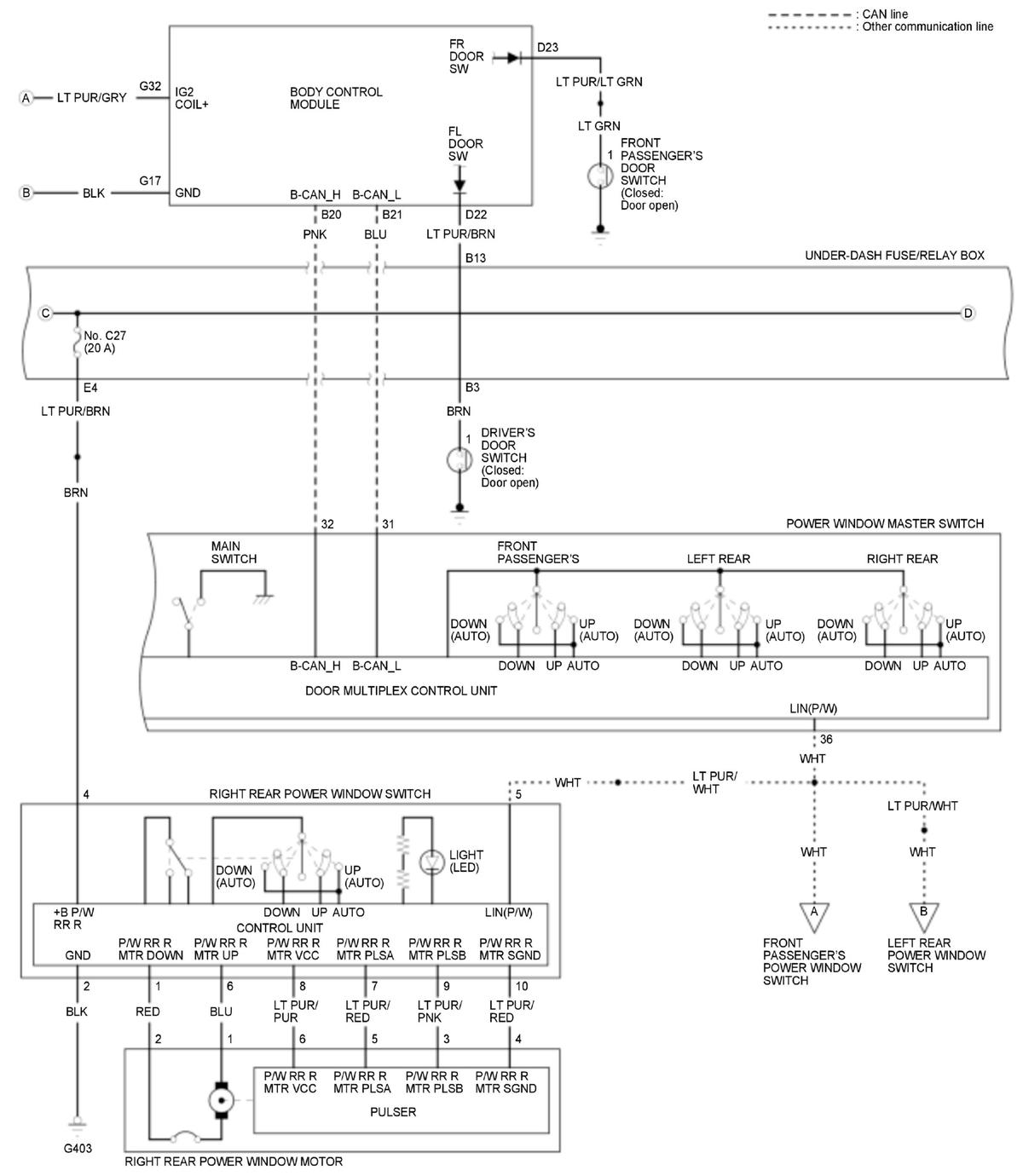

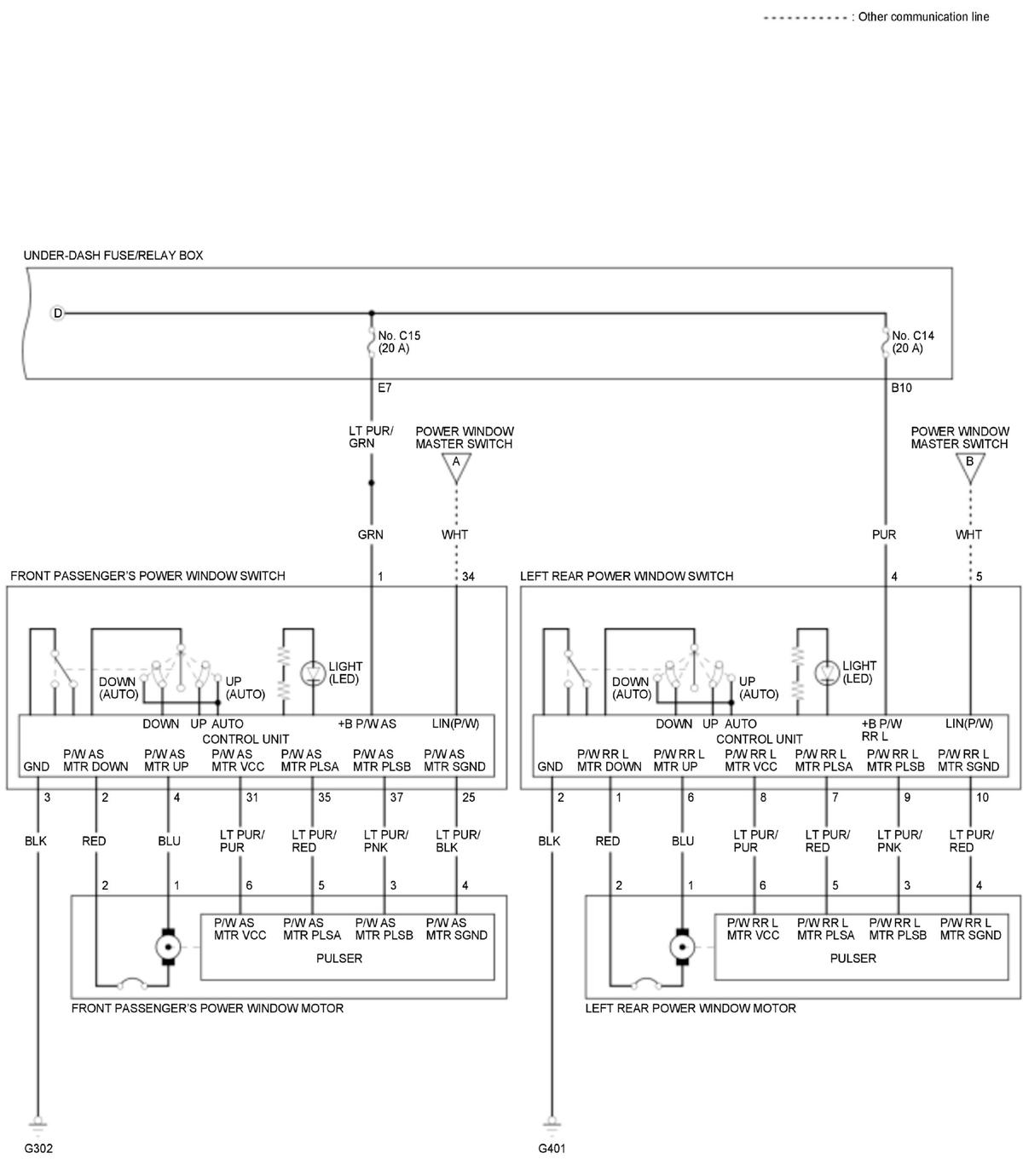

Power Windows
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
