Fuse/Relay Box

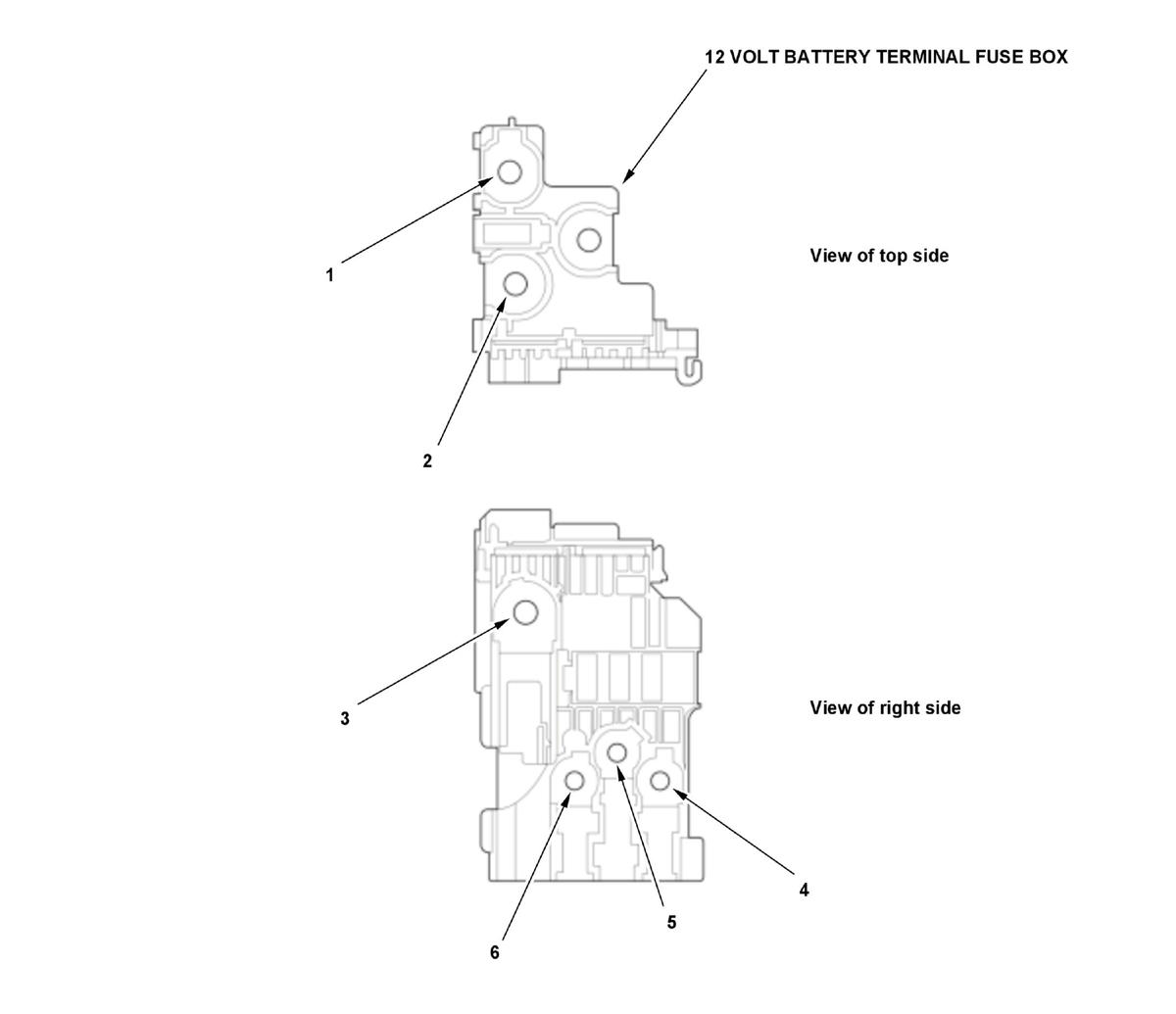

12 Volt Battery Terminal Fuse Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T1 | 1 | 1 | Not used | |
| T2 | 2 | 1 | Not used | |
| T3 | 3 | 1 | Engine compartment wire harness | |
| T4 | 6 | 1 | Not used | |
| T5 | 5 | 1 | Engine compartment wire harness | |
| T6 | 4 | 1 | Not used |

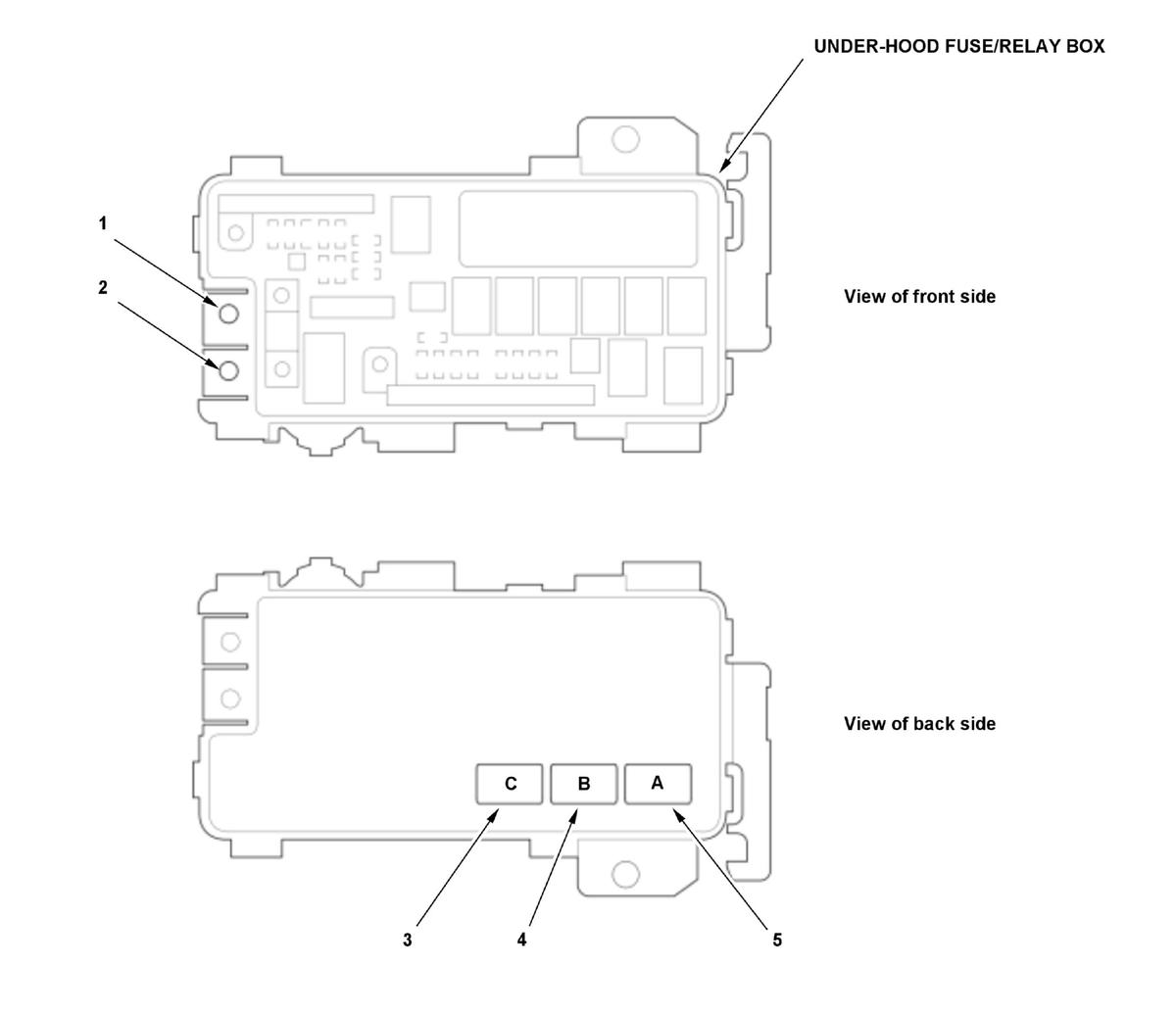

Under-Hood Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T7 | 1 | 1 | Engine compartment wire harness | |
| T101 | 2 | 1 | D/V 12 volt cable | |
| A | 5 | 8 | Engine compartment wire harness | |
| B | 4 | 14 | Engine compartment wire harness | |
| C | 3 | 10 | Engine compartment wire harness |

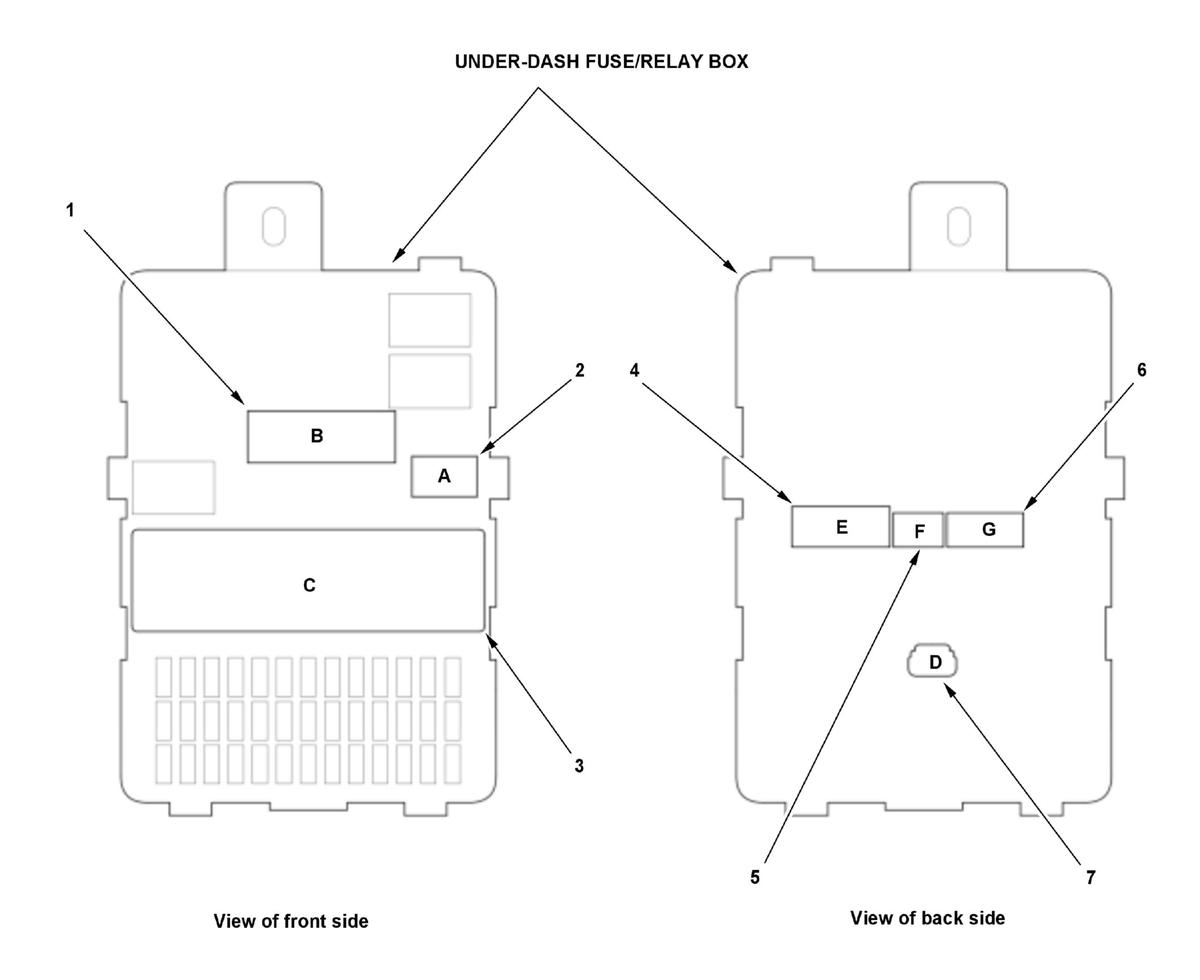

Under-Dash Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (optional connector) | 2 | 4 | Not used | |
| B | 1 | 22 | Floor wire harness | |
| C | 3 | 27 | Engine compartment wire harness | |
| D | 7 | 4 | Dashboard wire harness | |
| E | 4 | 18 | Dashboard wire harness | |
| F | 5 | 12 | Dashboard wire harness | |
| G | 6 | 20 | Dashboard wire harness |

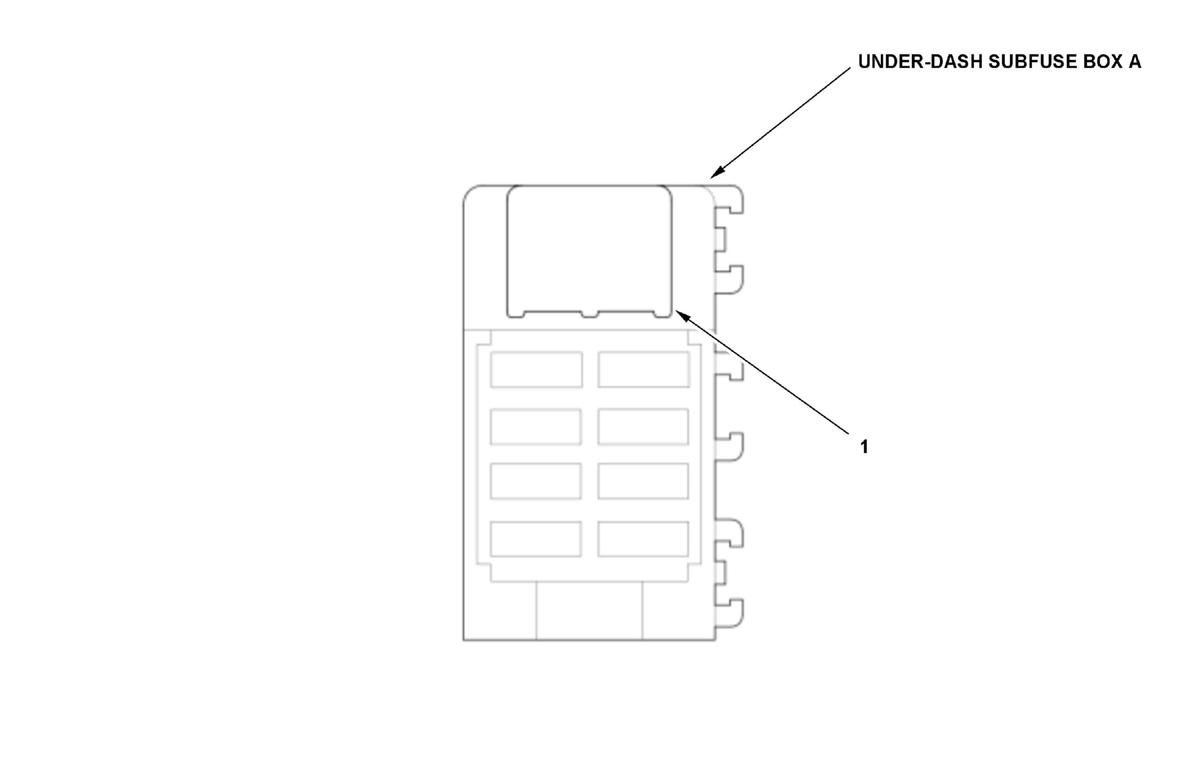

Under-Dash Subfuse Box A
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| Under-dash subfuse box A connector | 1 | 2 | Engine compartment wire harness |

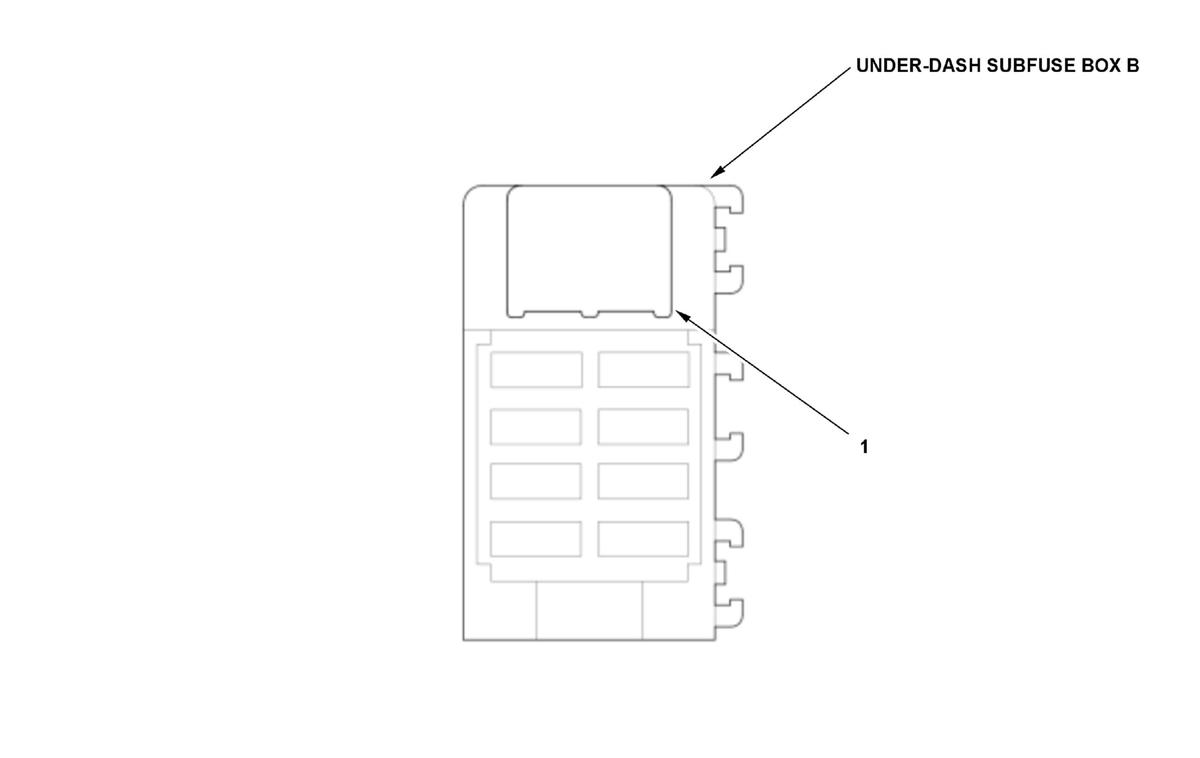

Under-Dash Subfuse Box B
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| Under-dash subfuse box B connector | 1 | 2 | Engine compartment wire harness |

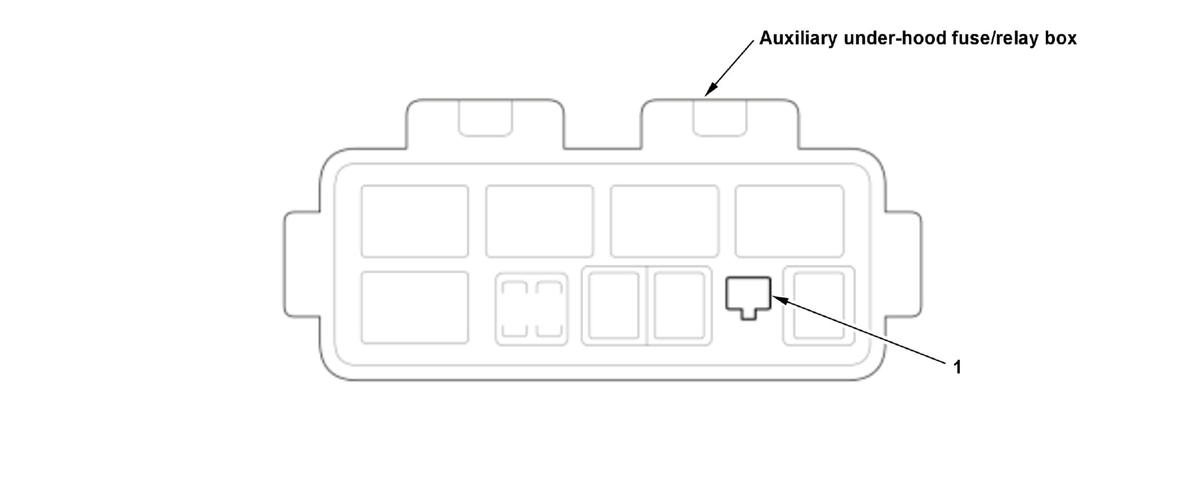

Auxiliary Under-Hood Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| Auxiliary under-hood fuse/relay box connector | 1 | 1 | Engine compartment wire harness |
