Relay Locations

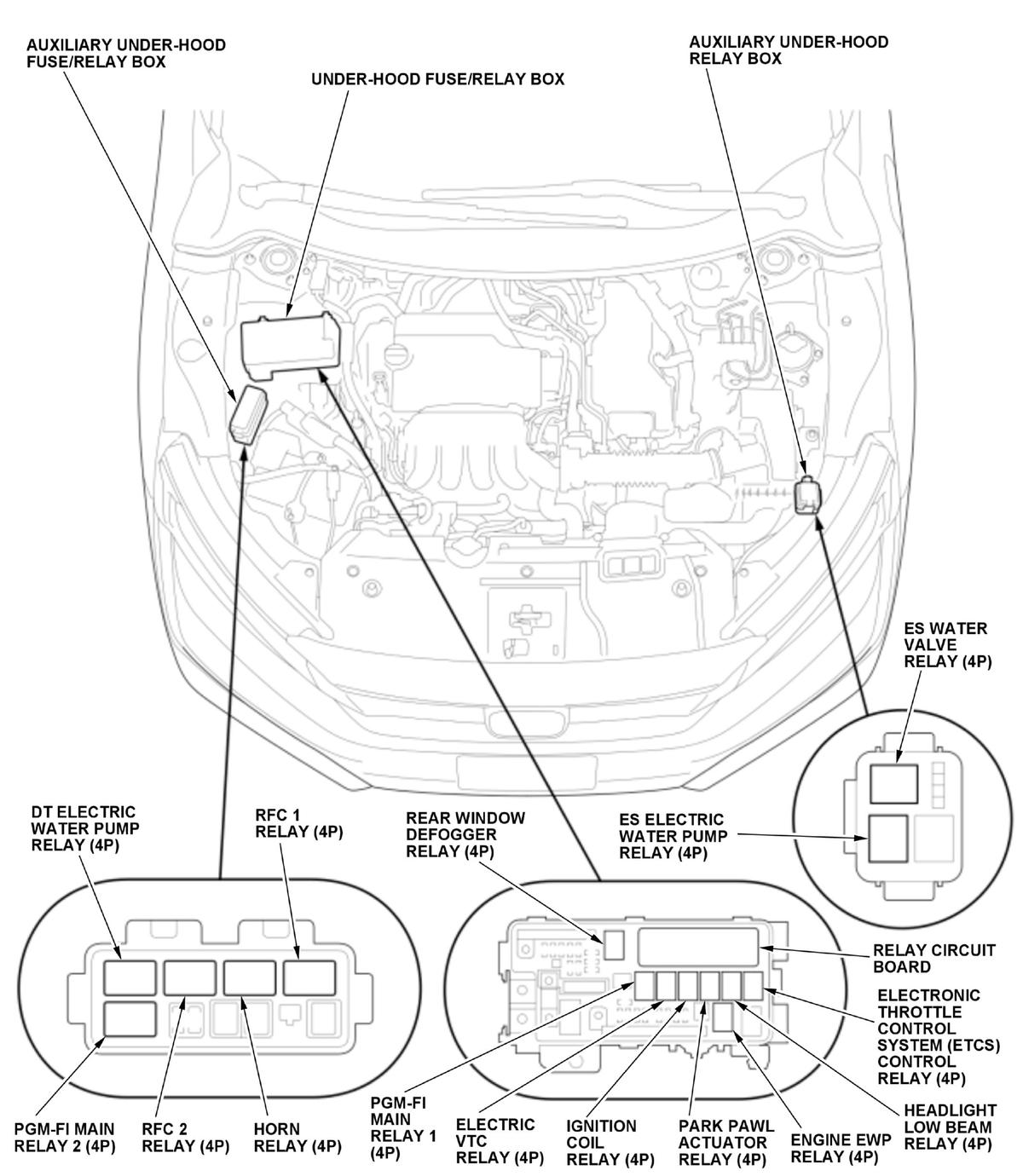

Engine Compartment

Courtesy of HONDA, U.S.A., INC.

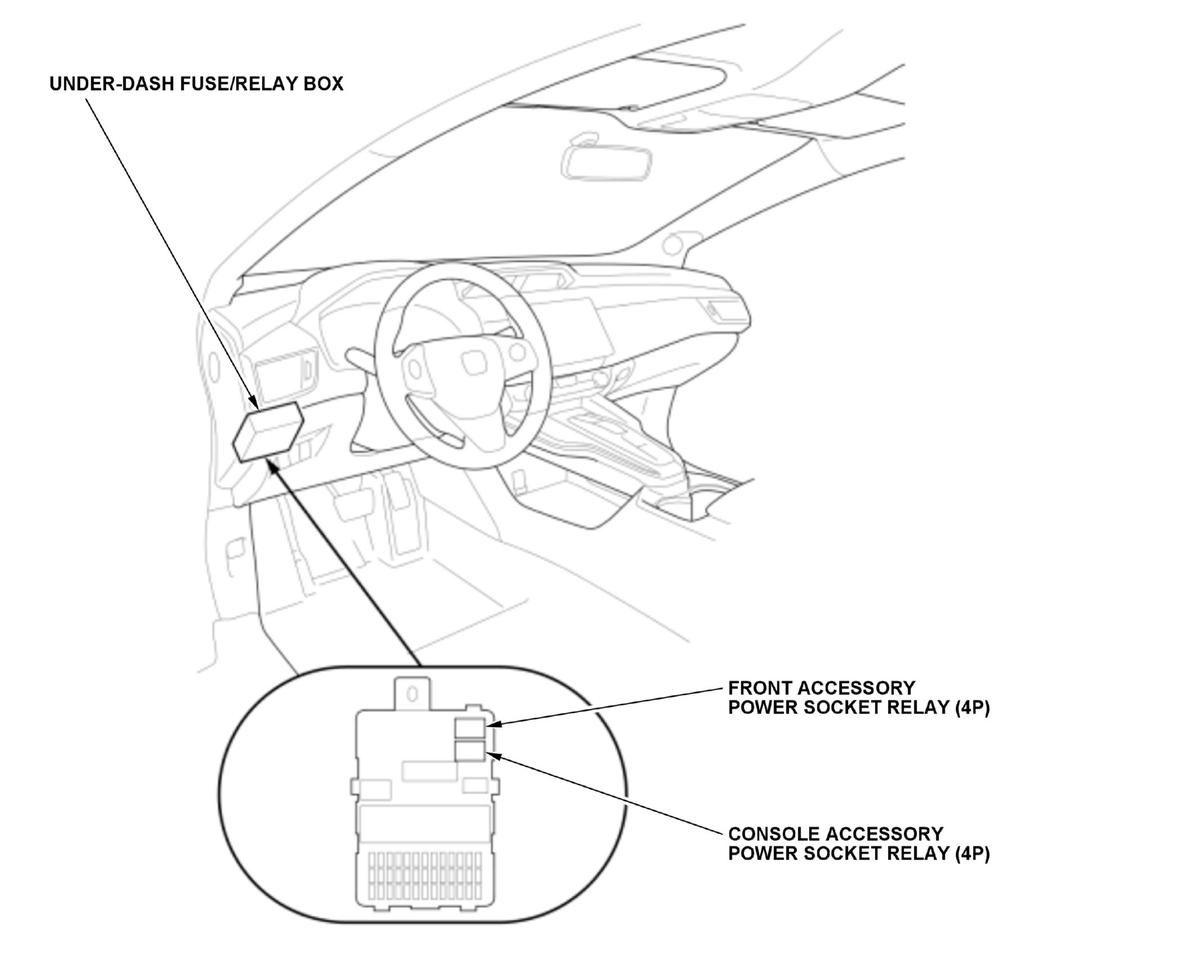

Dashboard - 1/2

Courtesy of HONDA, U.S.A., INC.

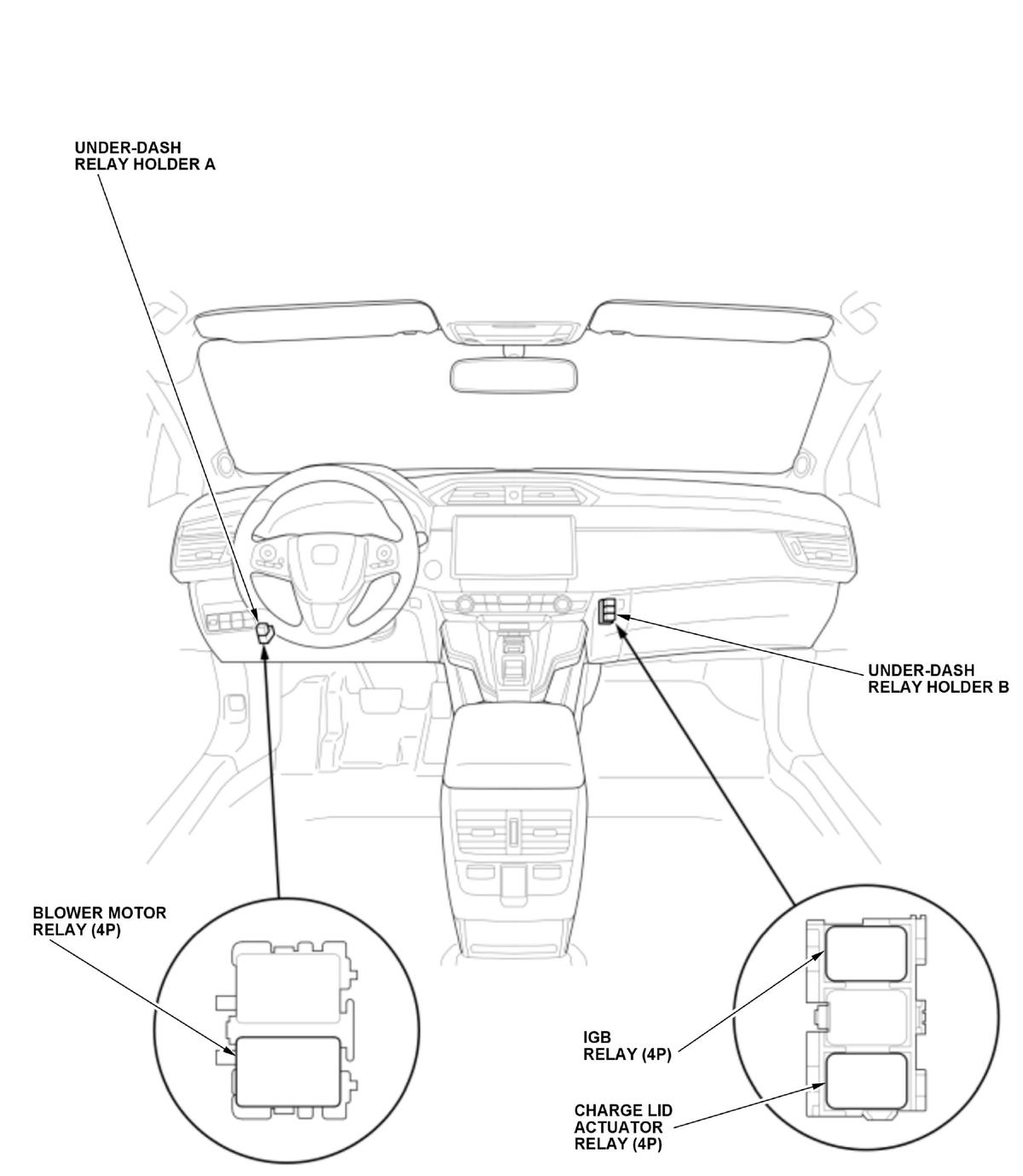

Dashboard - 2/2

Courtesy of HONDA, U.S.A., INC.

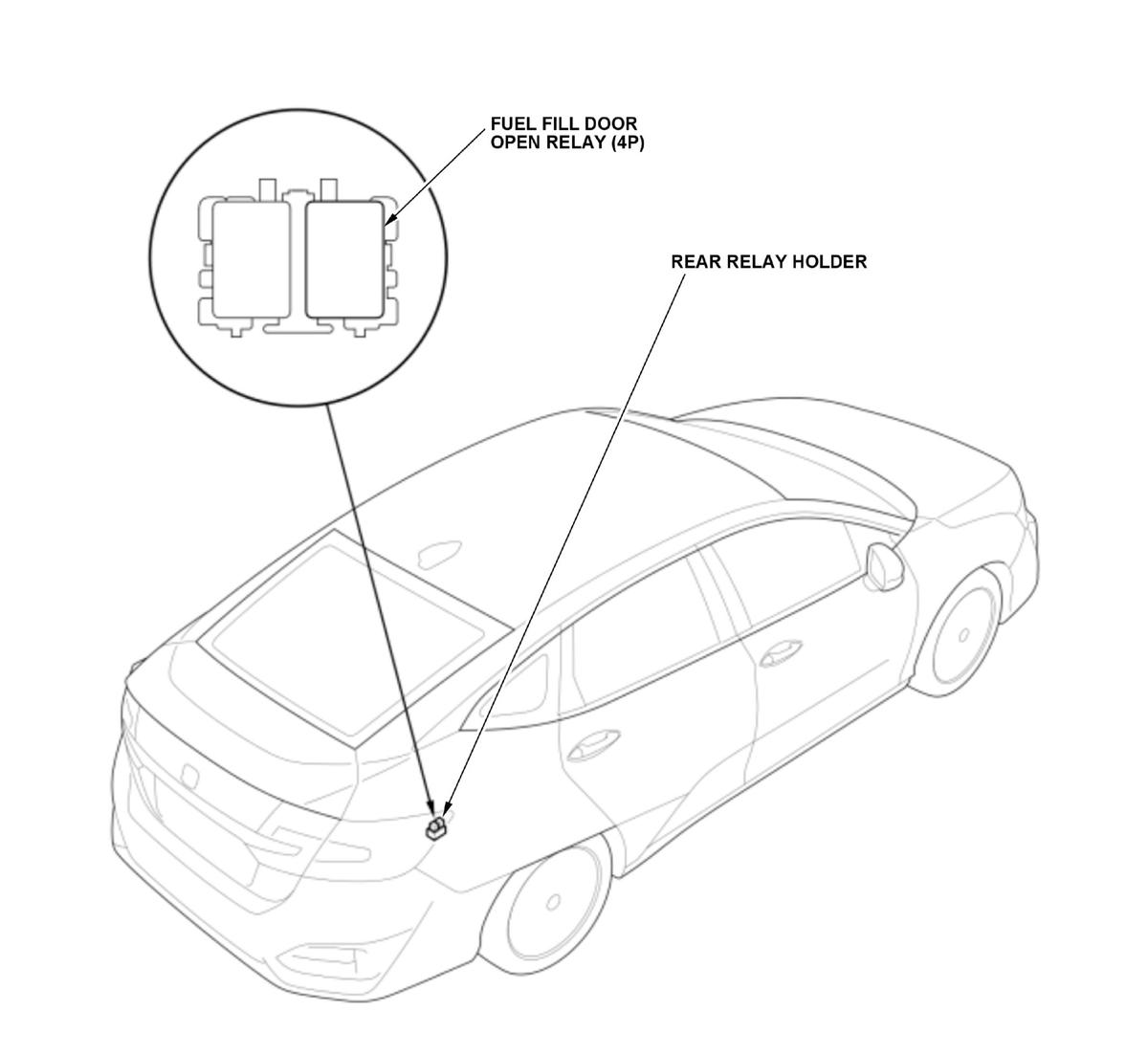

Rear

Courtesy of HONDA, U.S.A., INC.
