Engine Oil Level Check And Replacement: Replacement

NOTE: How to read the torque specifications .

Engine - Warm Up

1. Enter the maintenance mode , then start the engine. Hold the engine speed at 3, 000 RPM with no load (in P or N) until the radiator fan comes on, then let it idle.

Motor Undercover - Remove
NOTE: Remove the necessary part(s).

Engine Oil - Drain

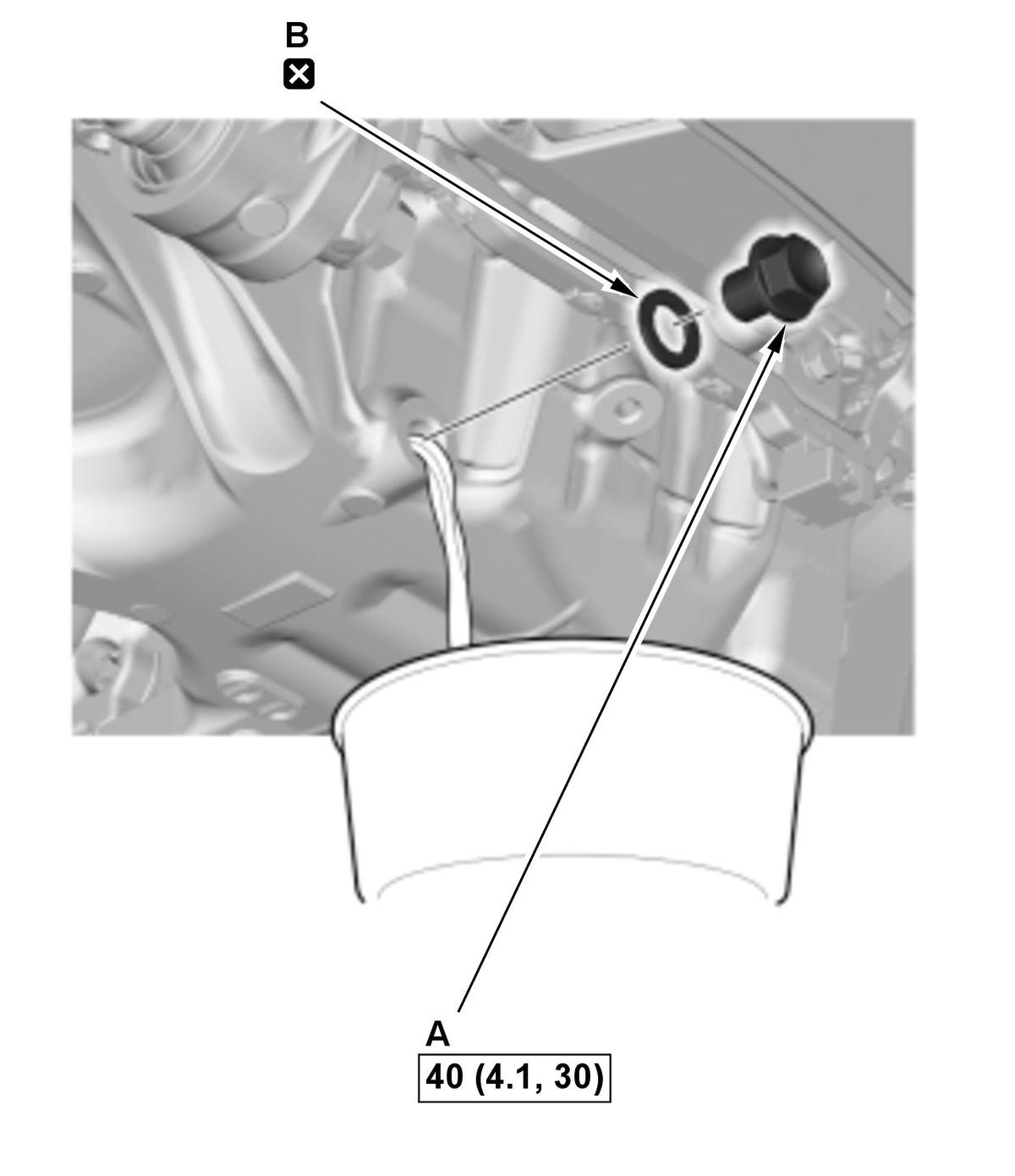

Fig 1: Engine Oil Drain Bolt With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the drain bolt (A), and drain the engine oil.

2. Reinstall the drain bolt with a new washer (B) and torque to specification.

Motor Undercover - Install

Engine Oil - Refill

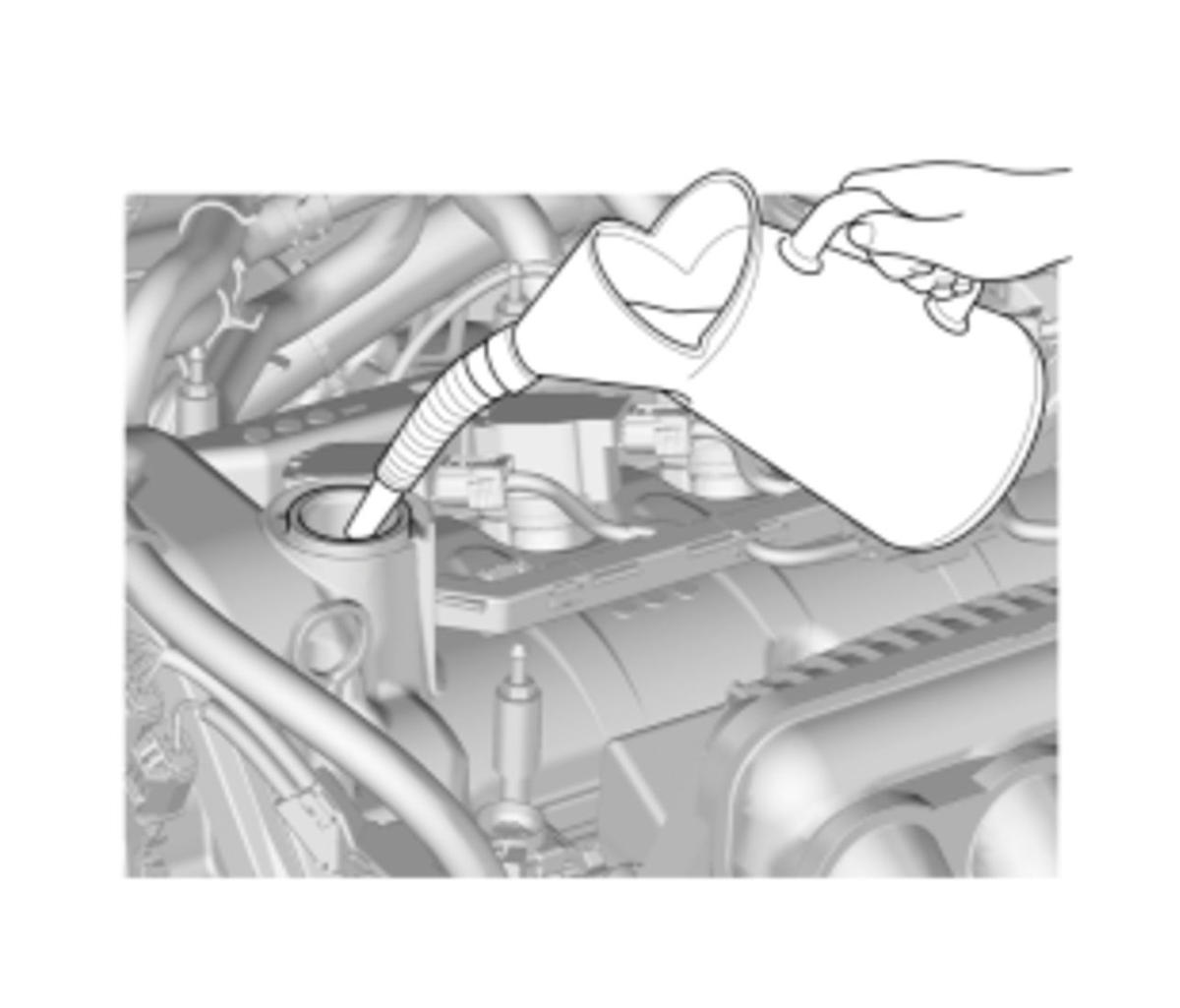

1. Refill the engine with the recommended engine oil .

Capacity
At Oil Change:	3.1 L (3.3 US qt)
At Oil Change including Filter:	3.3 L (3.5 US qt)
After Engine Overhaul:	4.0 L (4.2 US qt)

Courtesy of HONDA, U.S.A., INC.

Engine Oil Level - Check

1. Enter the maintenance mode , then start the engine. Run the engine for more than 3 minutes, then check the oil level and the oil leakage.

Maintenance Minder - Reset

1. If the Maintenance Minder required to replace the engine oil, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder"). If the Maintenance Minder did not require to replace the engine oil, reset the Maintenance Minder with the HDS (see "Resetting the Individual Maintenance Items").
