DTC P00FE

DTC P00FE:  Evaporative Emission (EVAP) Vent Line Blockage

General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

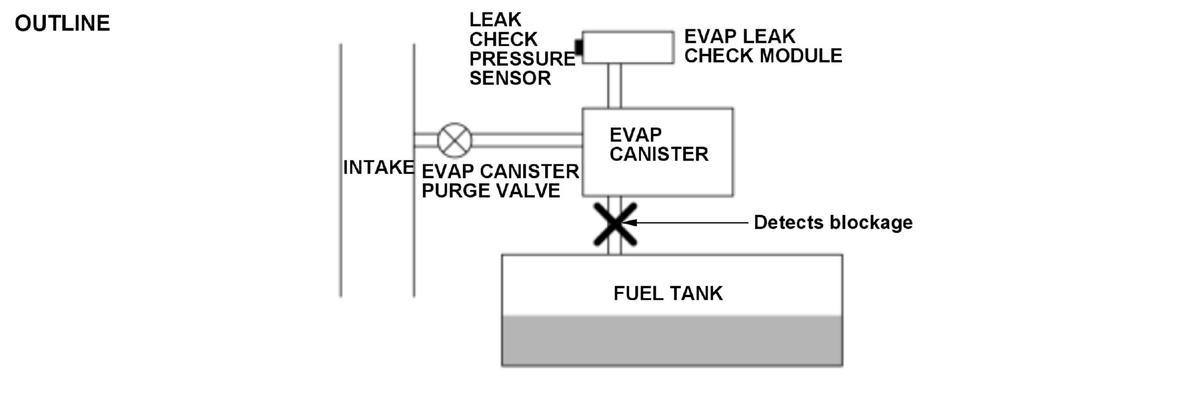

The powertrain control module (PCM) detects a blockage on the vent line by two phases:

• Phase 1

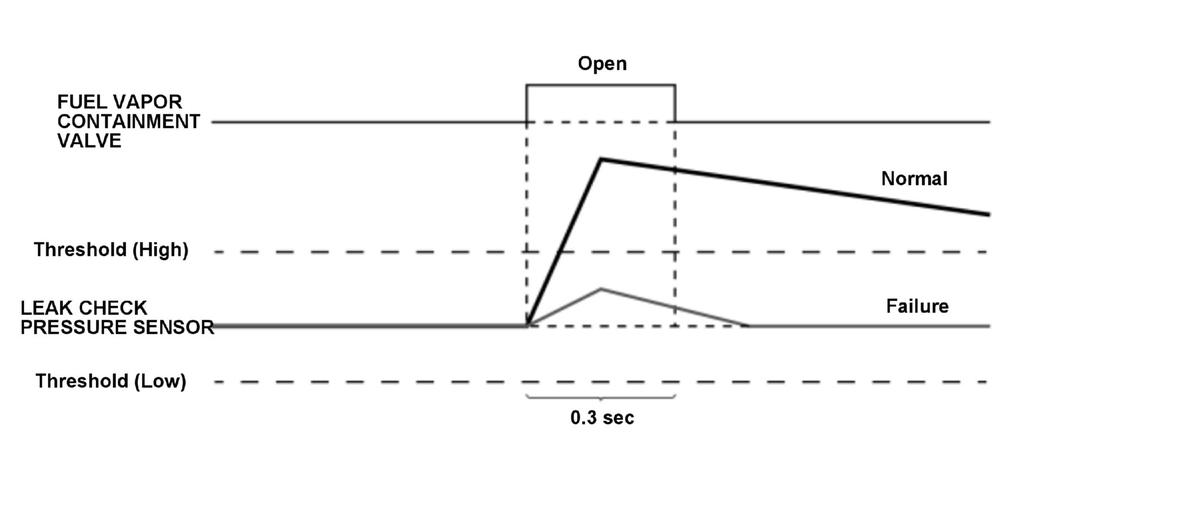

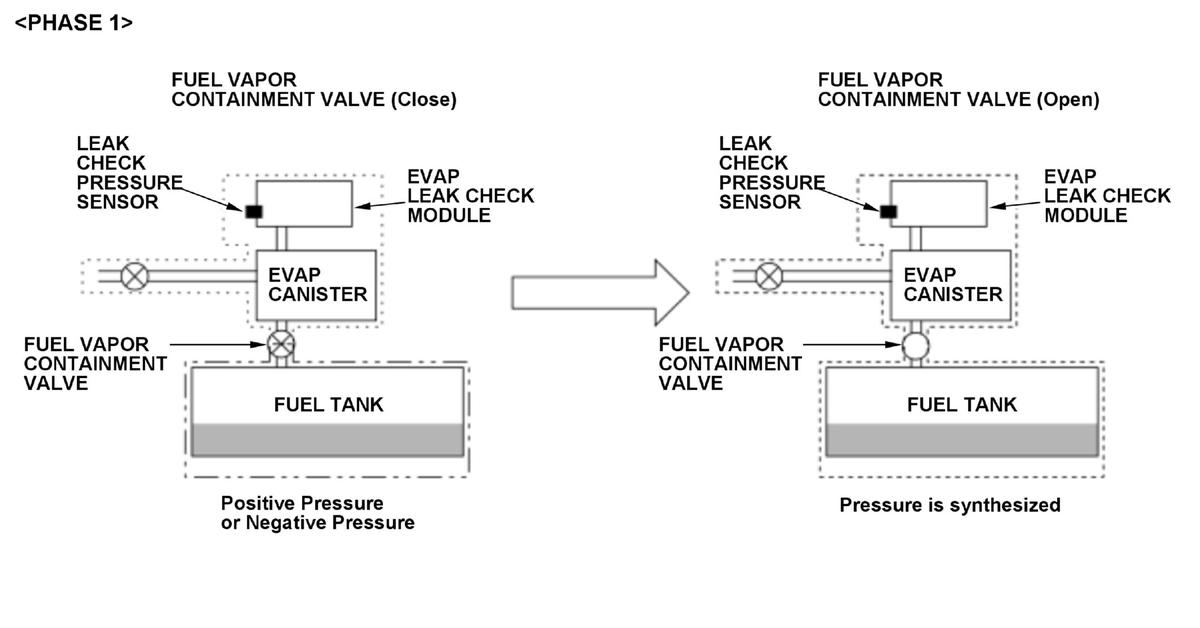

  The fuel vapor containment valve is opened for a short time, and the VENT blockage is determined by the change in the tank internal pressure. If there is a pressure change in the tank, the PCM determines as normal. If there is no pressure change, there is a possibility of a VENT blockage failure or the pressure in the tank is not applied, and the detection moves to phase 2.

• Phase 2

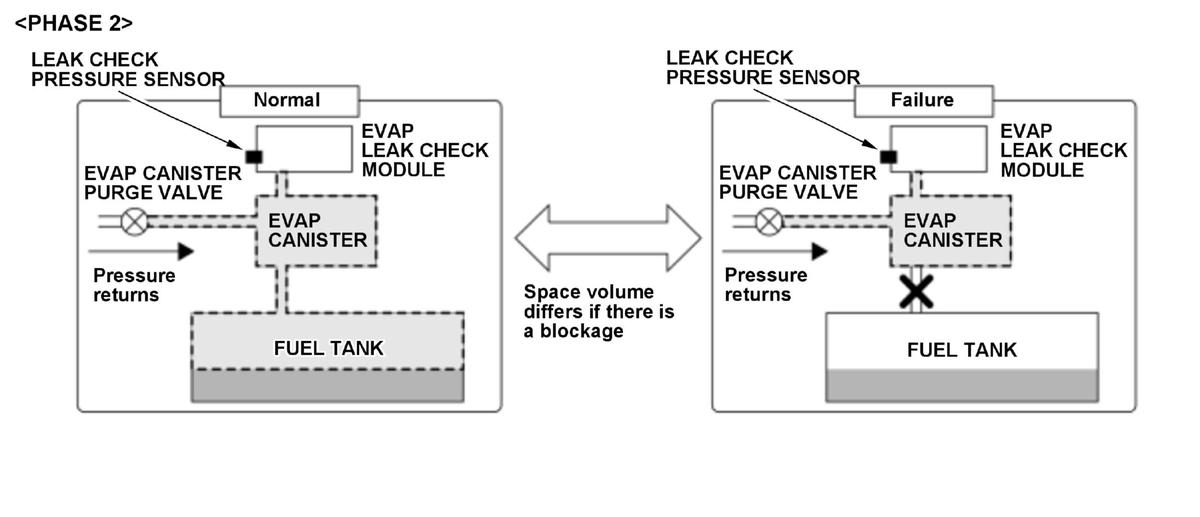

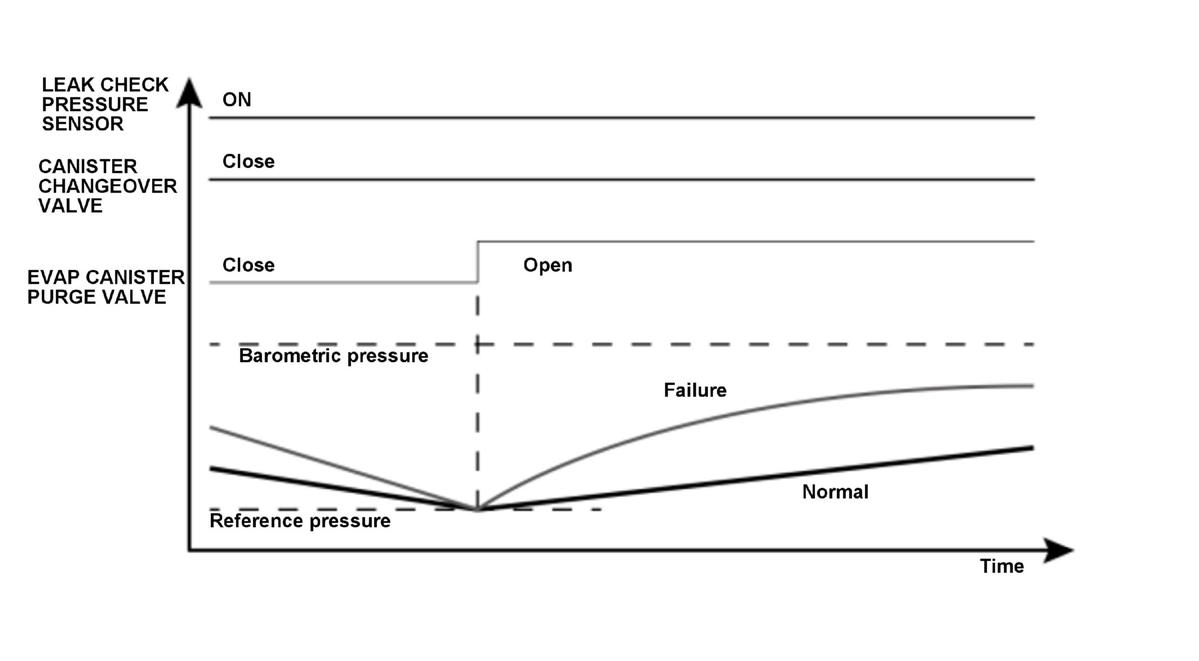

  If an abnormality is found in phase 1, the PCM detects a blockage of the vent line by estimating the volume of space in the evaporative emission (EVAP) system. Phase 2 is performed after the vehicle has stopped for a period of time, and if the volume of space is large, the EVAP leak check module is closed and decompressed by purging. If the volume of space is small, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Once per driving cycle
Sequence	None
Duration	18 minutes 55 seconds or less
DTC Type	Two drive cycles, MIL on

Enable Conditions

Condition	Minimum	Maximum
Soak duration	5 hours	-
Elapsed time after the vehicle condition is turned to the ON mode	10 minutes	-
PCM wake up engine coolant temperature [ECT Sensor 1]	40 deg.F (4.4 deg.C)	95 deg.F (35 deg.C)
Barometric pressure [Baro Sensor]	76 kPa (22.5 inHg, 569 mmHg)	-
Drive distance after refueling	7 miles (10 km)	-
12 volt battery voltage [Battery]	10.5 V	-
Average fuel level [Fuel Level (Average)]	-	85 %

[ ]: HDS Parameter

Malfunction Threshold

• Phase 1
  • When the change in the pressure is 1 kPa (0.35 inHg, 9 mmHg) or more, or -2 kPa (-0.47 inHg, -12 mmHg) or less.
• Phase 2

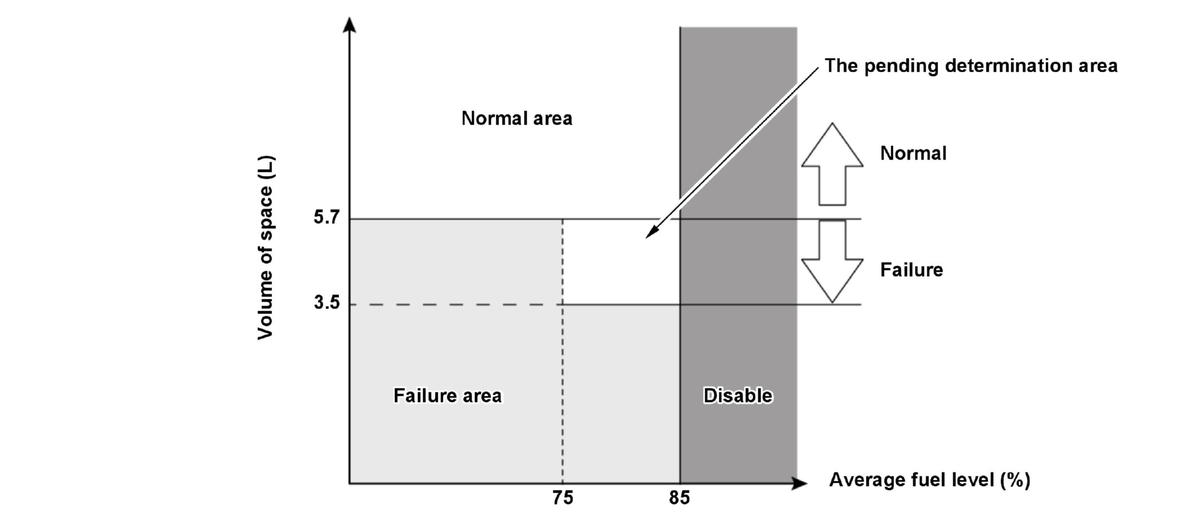

  • When the calculated volume of space in the EVAP system is 3.5 L (0.92 US gal) or less.
  • When the calculated volume of space in the EVAP system is 5.7 L (1.51 US gal) or less, and the pending determination average fuel level is 75 % or less.

    Courtesy of HONDA, U.S.A., INC.

Possible Cause

Confirmation Procedure

Operating Condition

• With an average fuel level [Fuel Level (Average)] of 85 % or less, turn the vehicle to the ON mode, and wait for at least 10 minutes. Drive the vehicle for 7 miles (10 km/h) or more after refueling.
• Turn the vehicle to the OFF (LOCK) mode, and wait for at least 5 hours.
• After the PCM wakes up and wait at least 18 minutes 55 seconds.

• When you have difficulty duplicating the DTC because of road conditions and traffic situations, repeat the driving pattern several times.
• Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

With the HDS

Do the EVAP TEST in the INSPECTION MENU with the HDS.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or by disconnecting the 12 volt battery.

DTC P00FE:  Evaporative Emission (EVAP) Vent Line Blockage

General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

The powertrain control module (PCM) detects a blockage on the vent line by two phases:

• Phase 1

  The fuel vapor containment valve is opened for a short time, and the VENT blockage is determined by the change in the tank internal pressure. If there is a pressure change in the tank, the PCM determines as normal. If there is no pressure change, there is a possibility of a VENT blockage failure or the pressure in the tank is not applied, and the detection moves to phase 2.

• Phase 2

  If an abnormality is found in phase 1, the PCM detects a blockage of the vent line by estimating the volume of space in the evaporative emission (EVAP) system. Phase 2 is performed after the vehicle has stopped for a period of time, and if the volume of space is large, the EVAP leak check module is closed and decompressed by purging. If the volume of space is small, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Once per driving cycle
Sequence	None
Duration	18 minutes 55 seconds or less
DTC Type	Two drive cycles, MIL on

Enable Conditions

Condition	Minimum	Maximum
Soak duration	5 hours	-
Elapsed time after the vehicle condition is turned to the ON mode	10 minutes	-
PCM wake up engine coolant temperature [ECT Sensor 1]	40 deg.F (4.4 deg.C)	95 deg.F (35 deg.C)
Barometric pressure [Baro Sensor]	76 kPa (22.5 inHg, 569 mmHg)	-
Drive distance after refueling	7 miles (10 km)	-
12 volt battery voltage [Battery]	10.5 V	-
Average fuel level [Fuel Level (Average)]	-	85 %

[ ]: HDS Parameter

Malfunction Threshold

• Phase 1
  • When the change in the pressure is 1 kPa (0.35 inHg, 9 mmHg) or more, or -2 kPa (-0.47 inHg, -12 mmHg) or less.
• Phase 2
  • When the calculated volume of space in the EVAP system is 3.5 L (0.92 US gal) or less.
  • When the calculated volume of space in the EVAP system is 5.7 L (1.51 US gal) or less, and the pending determination average fuel level is 75 % or less.

    Courtesy of HONDA, U.S.A., INC.

Possible Cause

Confirmation Procedure

Operating Condition

1. With an average fuel level [Fuel Level (Average)] of 85 % or less, turn the vehicle to the ON mode, and wait for at least 10 minutes. Drive the vehicle for 7 miles (10 km/h) or more after refueling.
2. Turn the vehicle to the OFF (LOCK) mode, and wait for at least 5 hours.
3. After the PCM wakes up and wait at least 18 minutes 55 seconds.

• When you have difficulty duplicating the DTC because of road conditions and traffic situations, repeat the driving pattern several times.
• Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

With the HDS

Do the EVAP TEST in the INSPECTION MENU with the HDS.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command or by disconnecting the 12 volt battery.
