DTC P0137
DTC P0137: Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2)) Circuit Low Voltage
General Description

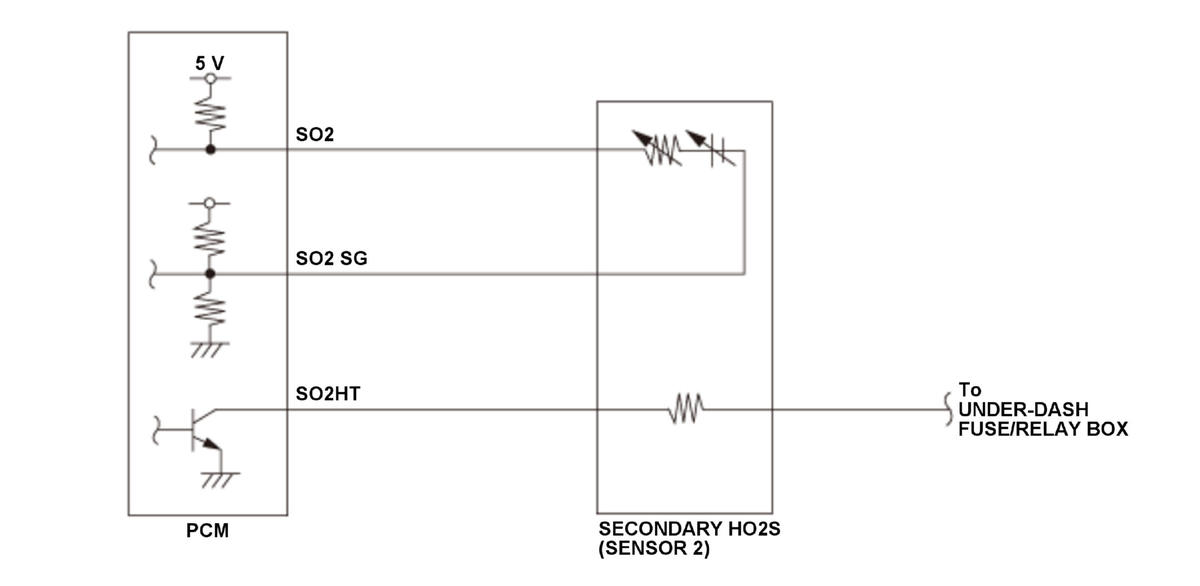

The secondary heated oxygen sensor (secondary HO2S (sensor 2)) detects the oxygen density in the exhaust gas and converts it into electrical signals. If the secondary HO2S (sensor 2) output voltage is a specified value for a set time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 5 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | |
|---|---|
| State of the engine | Running |
| Other | At least 55 seconds must be passed after the secondary HO2S (sensor 2) output voltage reaches 1.0 V or less |
Malfunction Threshold
The secondary HO2S (sensor 2) output voltage [HO2S S2] is less than 0.12 V for at least 5 seconds.
[ ]: HDS Parameter
Possible Cause
- Secondary HO2S (sensor 2) SO2 line short to ground
- Secondary HO2S (sensor 2) SO2 SG line short to ground
- PCM internal circuit failure
Confirmation Procedure
Operating Condition
Start the engine. Hold the engine speed [Engine Speed] at 3, 000 RPM without load (in P or N) until the radiator fan comes on, then let it idle.
[ ]: HDS Parameter
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
