DTC P0450

DTC P0450: Fuel Tank Pressure (FTP) Sensor Out of Range

General Description

Courtesy of HONDA, U.S.A., INC.

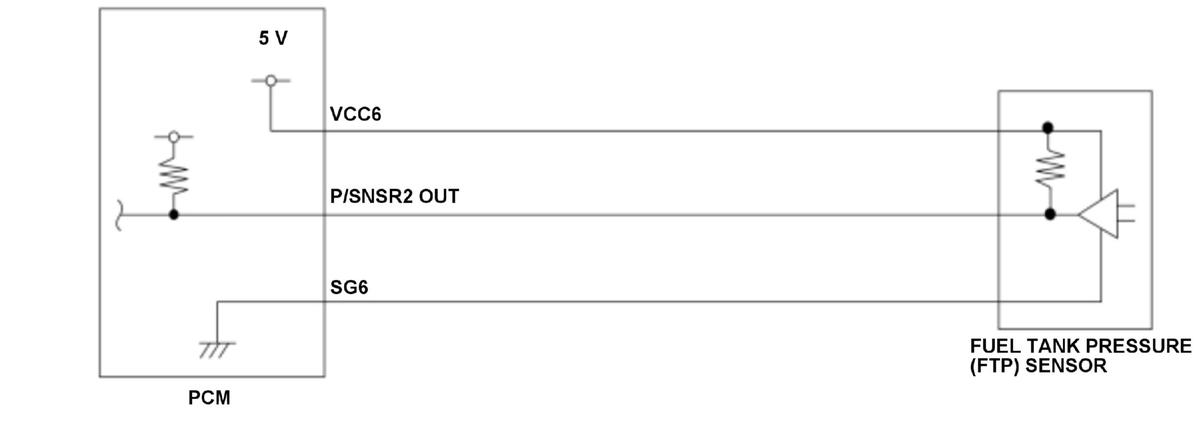

The fuel tank pressure (FTP) sensor is installed on the evaporative emission (EVAP) canister and detects the fuel tank pressure of the EVAP system. If the FTP sensor output voltage is a set value for a specified time, the powertrain control module (PCM) detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	6.0 seconds or more
DTC Type	Two drive cycles, MIL on

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

The FTP sensor output voltage [FTP Sensor Voltage] is 0.90 V or less, or 4.49 V or more for at least 6 seconds.

[ ]: HDS Parameter

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

FTP sensor failure
PCM internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
