DTC P0560

DTC P0560: Powertrain Control Module (PCM) Power Source Circuit Unexpected Voltage

General Description

Courtesy of HONDA, U.S.A., INC.

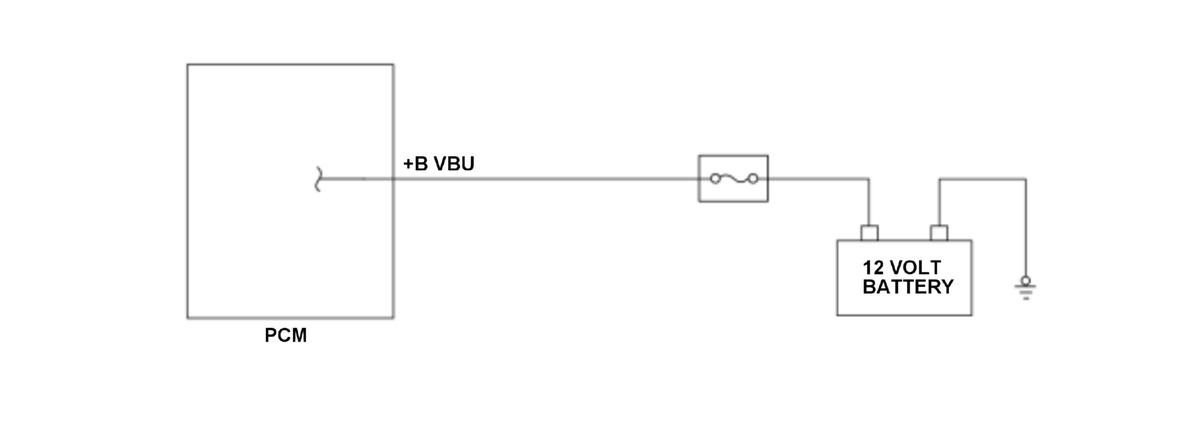

The powertrain control module (PCM) constantly draws power from +B VBU to maintain the back-up ram. If the +B VBU terminal voltage is a set value for a specified time, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	5 seconds or more
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

The +B VBUM (7.5A) terminal voltage is 6.0 V or less for at least 5 seconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

PCM +B VBU line failure
PCM internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
